Large scale 3D reconstruction

Written by Paul Bourke
June 2021


Project 1: June 2021

The follow documents a large scale, both spatially and with respect to data, 3D reconstruction exercise.
Input: 10,000 drone photographs (20MPixel), 8.5km, 20 GCP points.
Output: 50 million triangles, 4 x 16K textures.

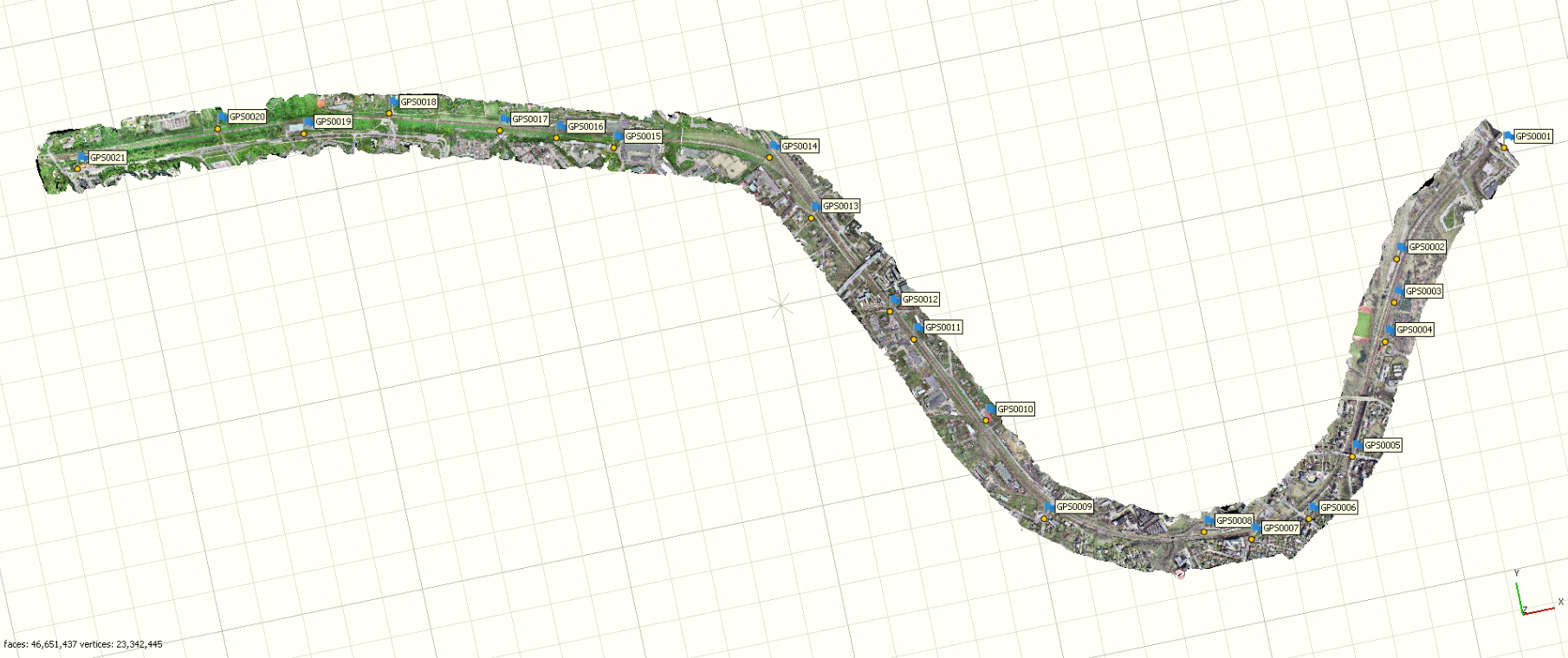

Final textured mesh showing GPC marker locations.

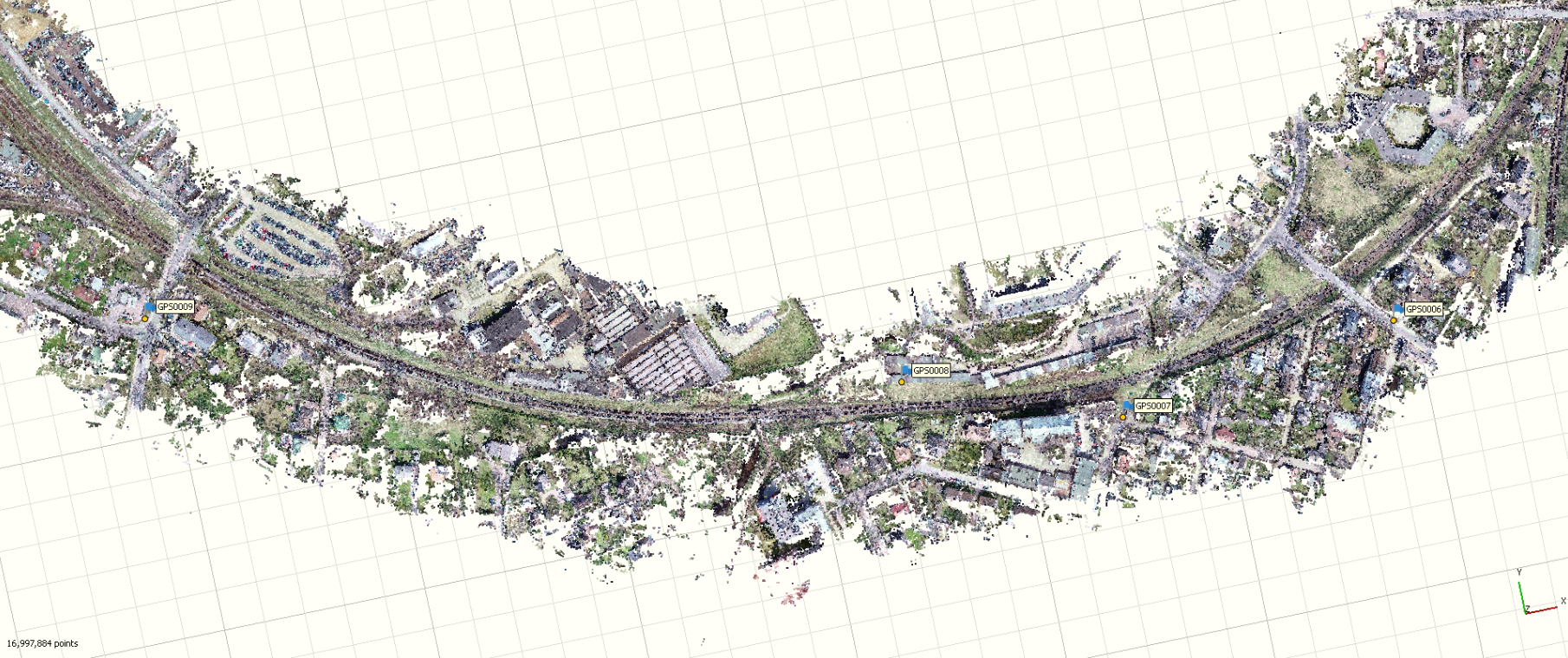

Sparce point cloud of a small section

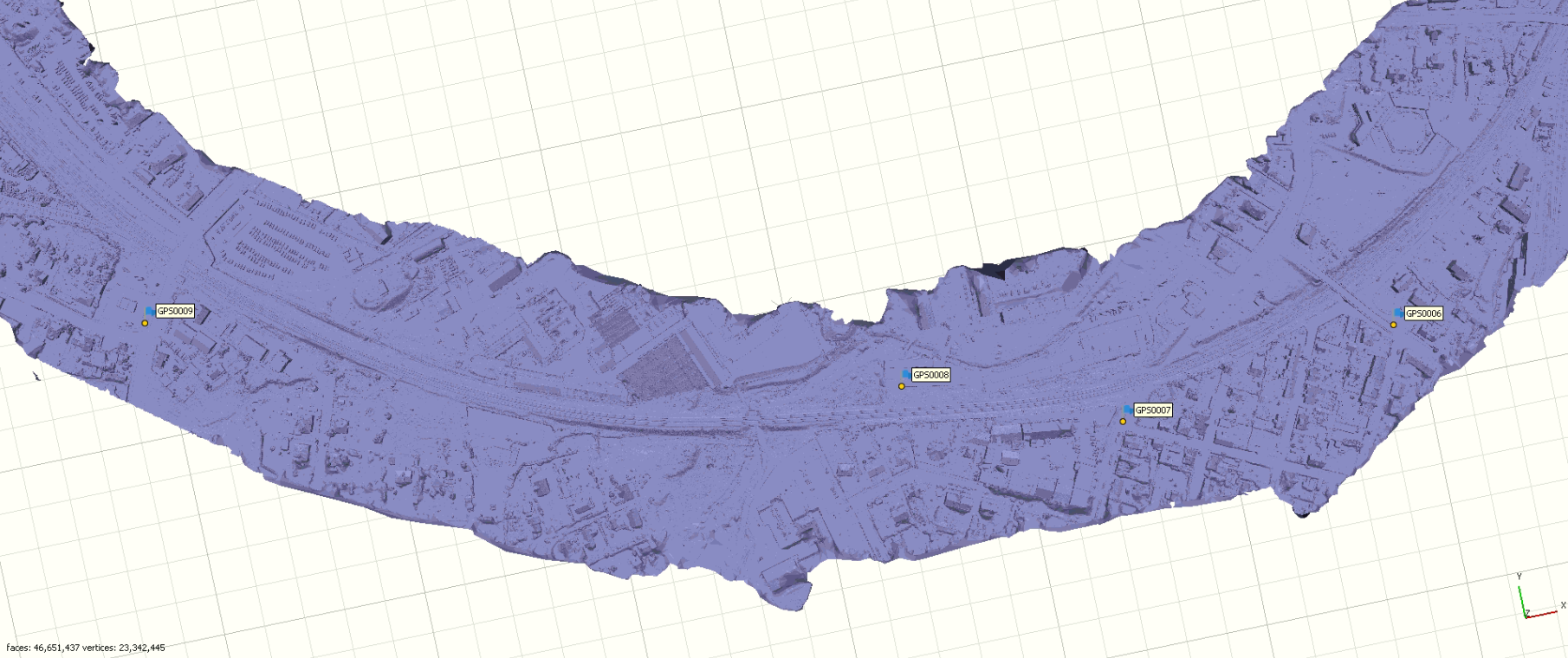

Untextured mesh of a small section

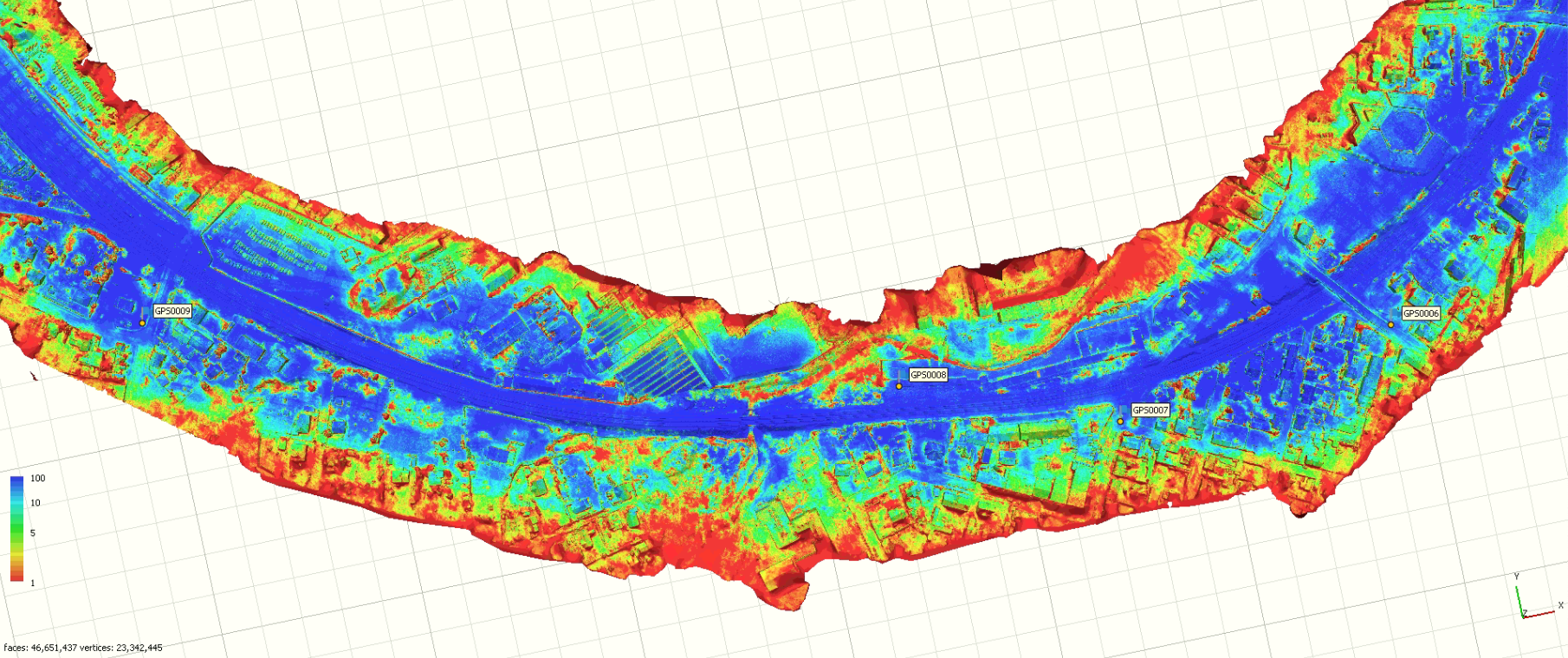

Mesh confidence, highest along the rail tracks where the drone images are centered.

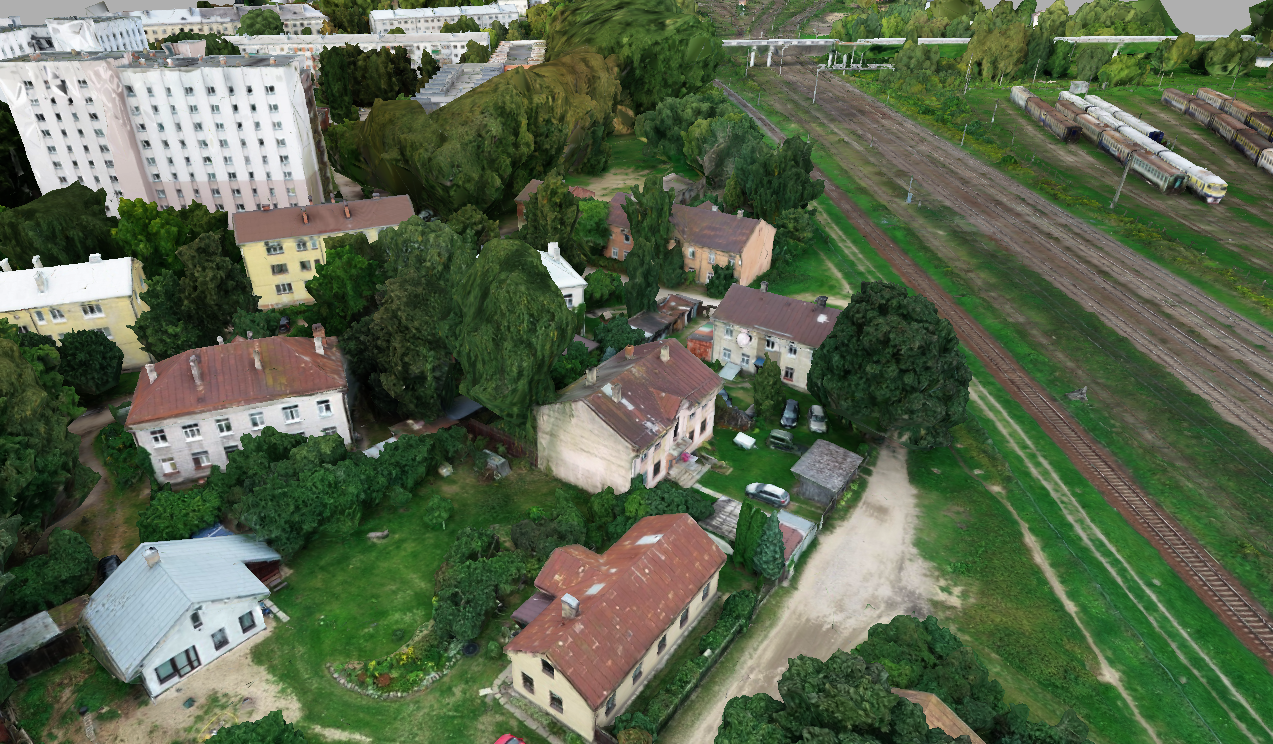

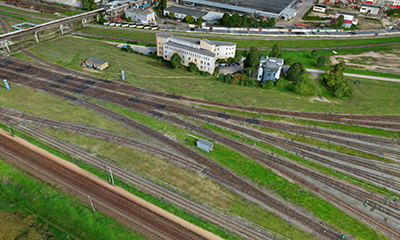

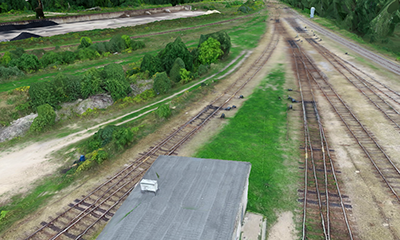

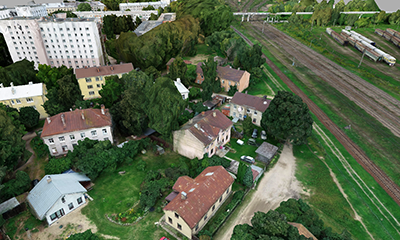

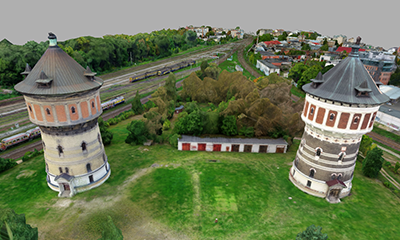

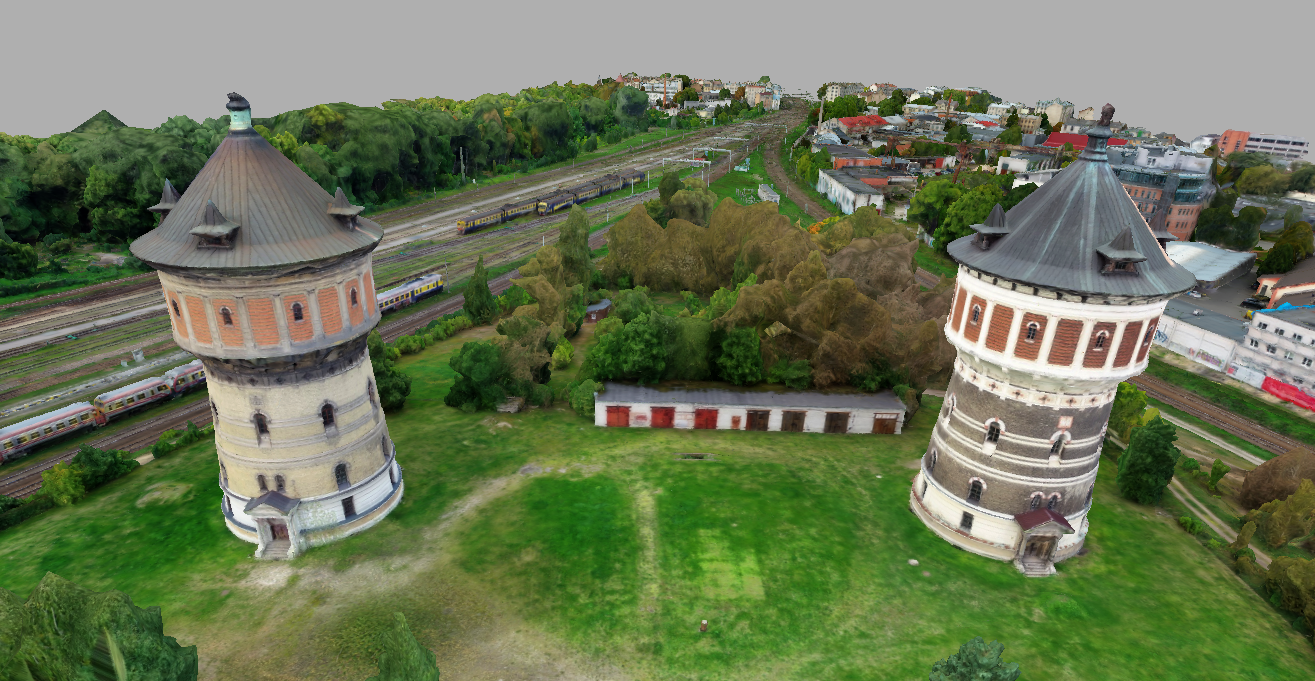

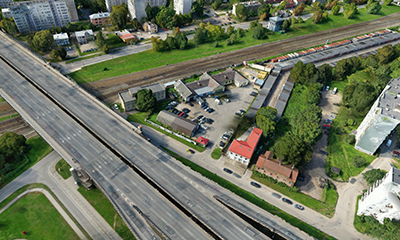

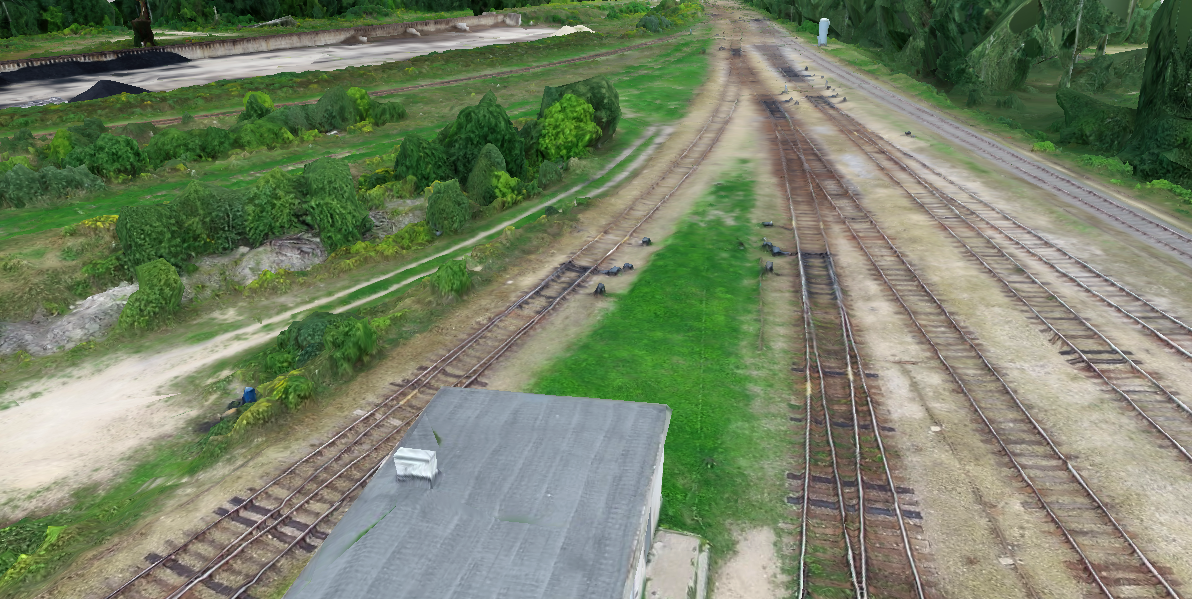

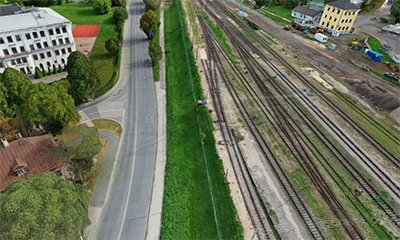

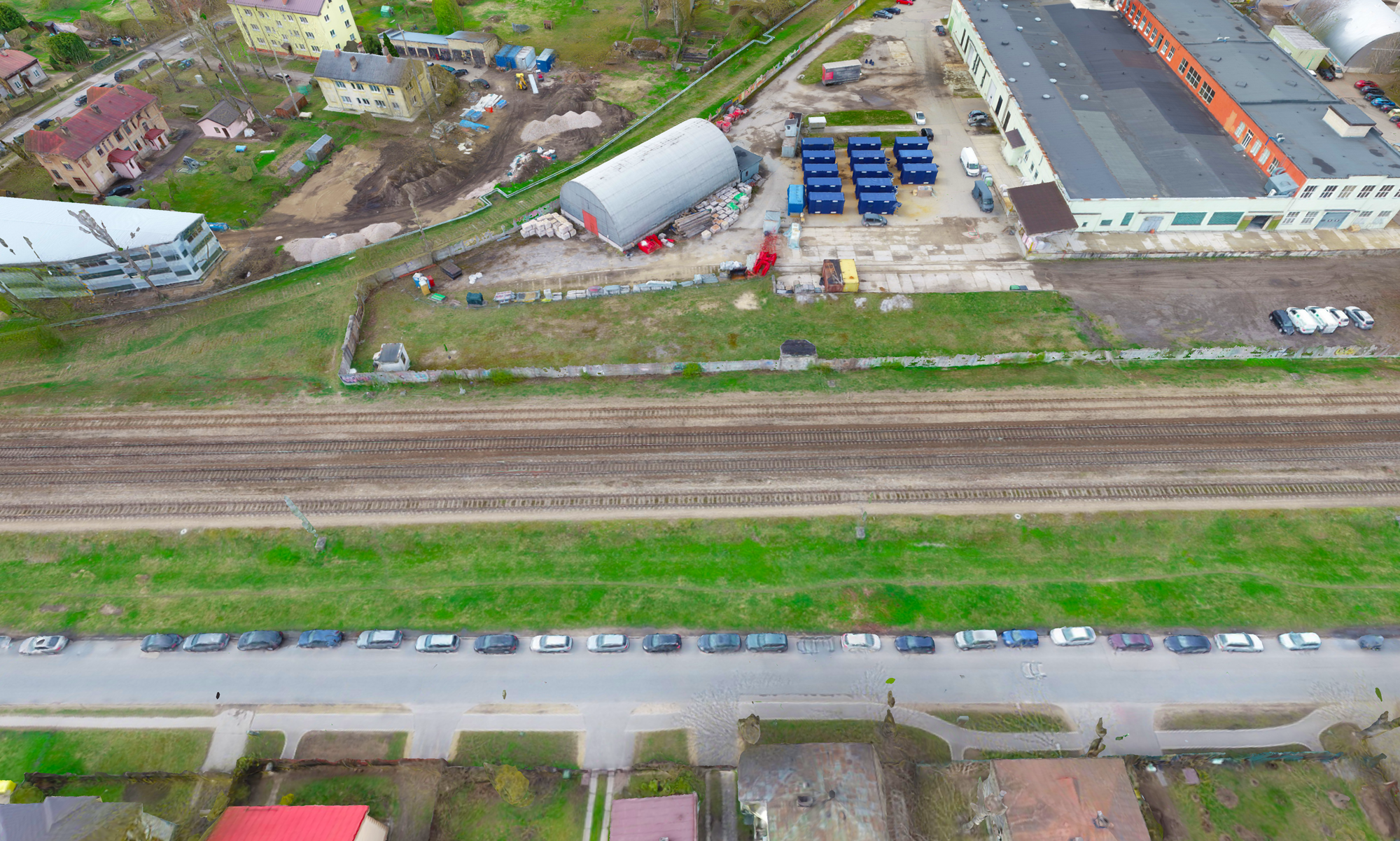

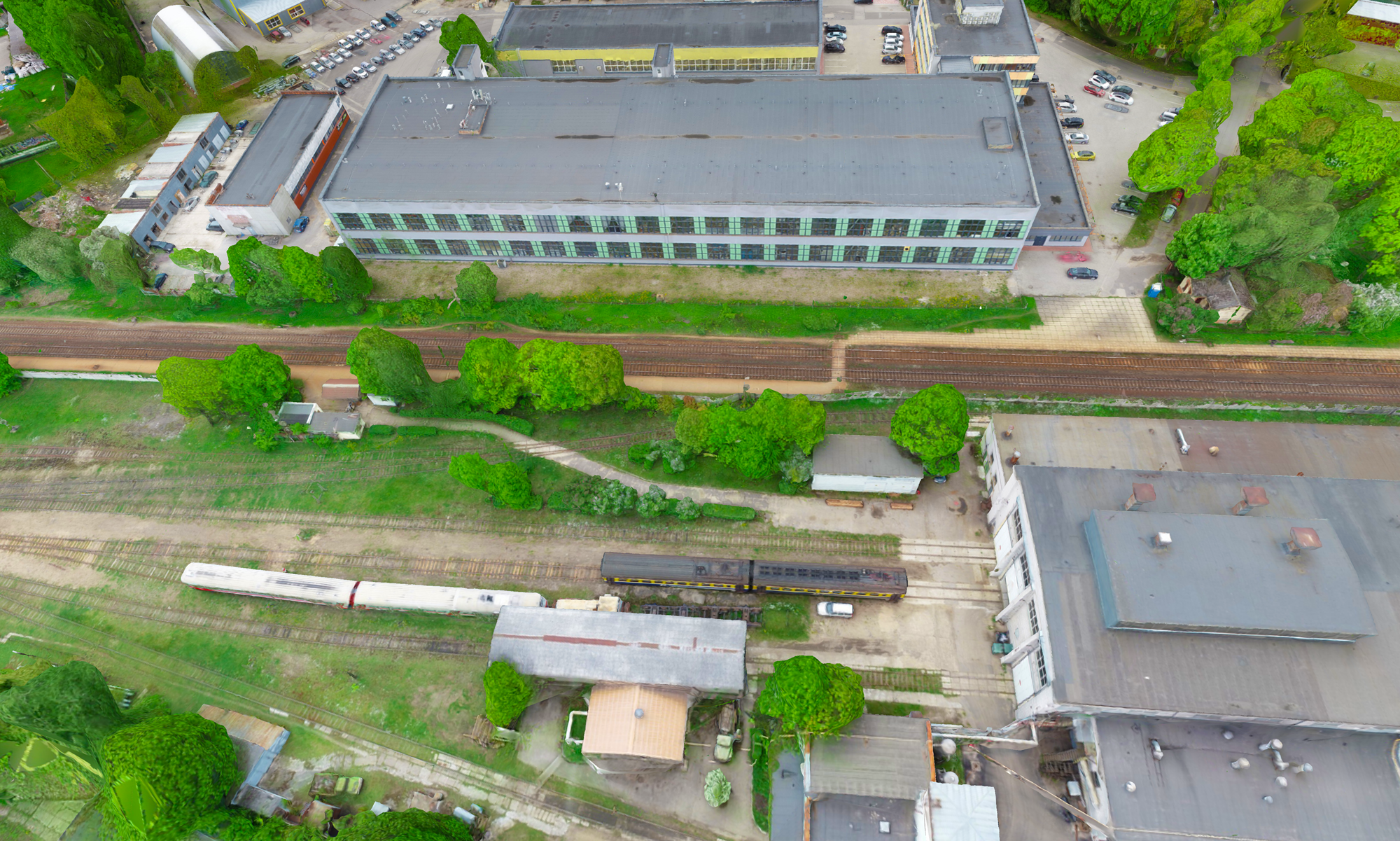

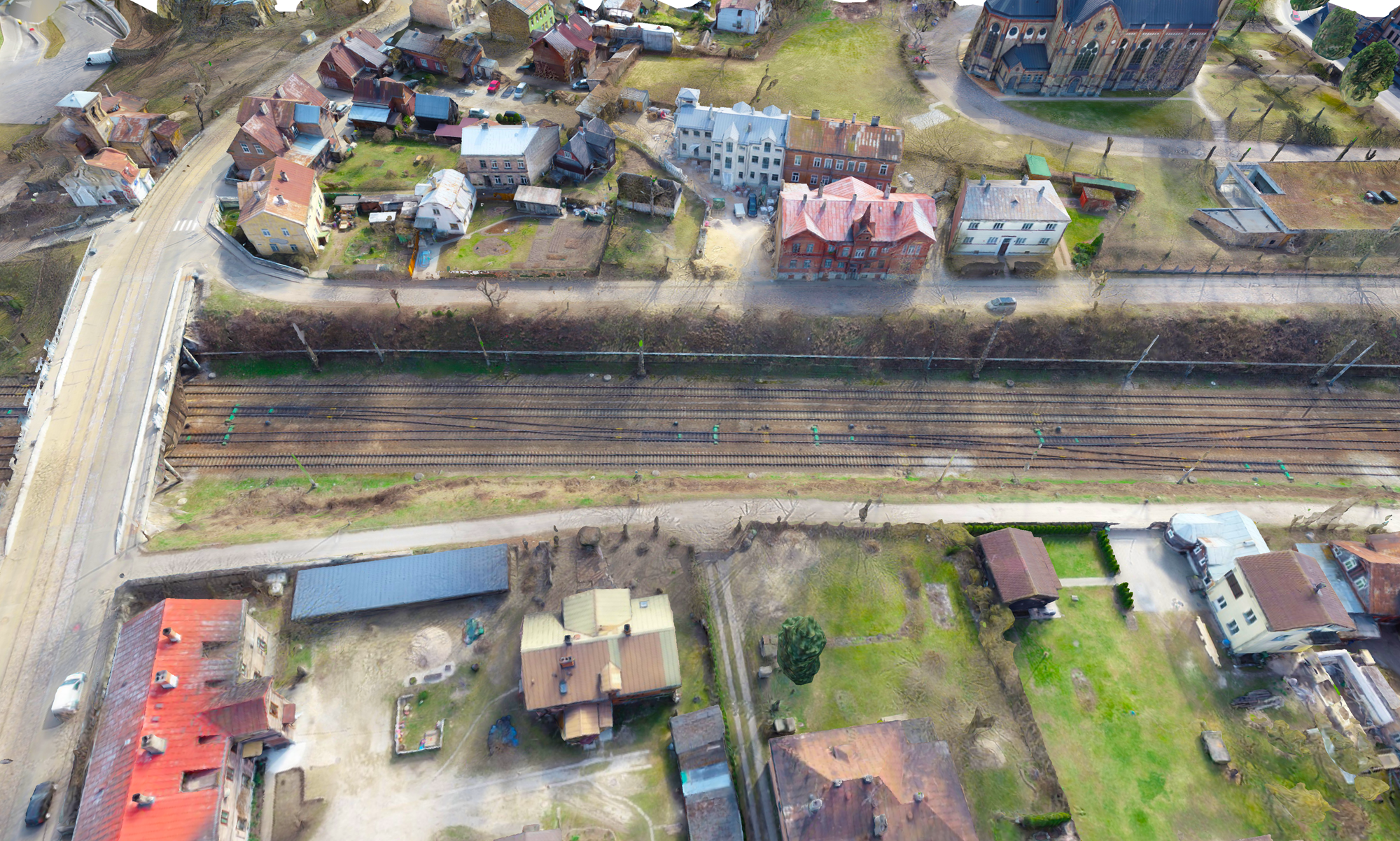

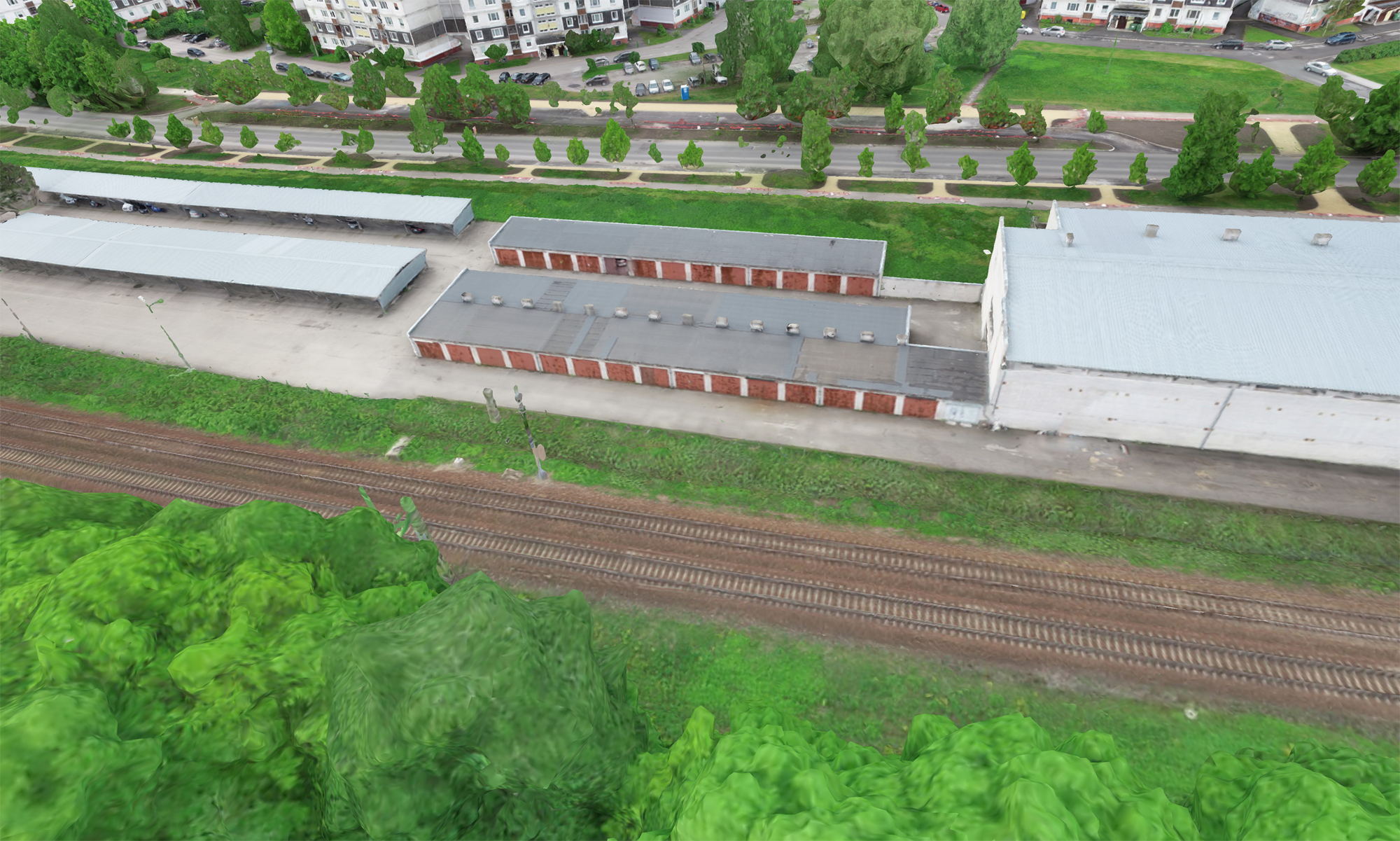

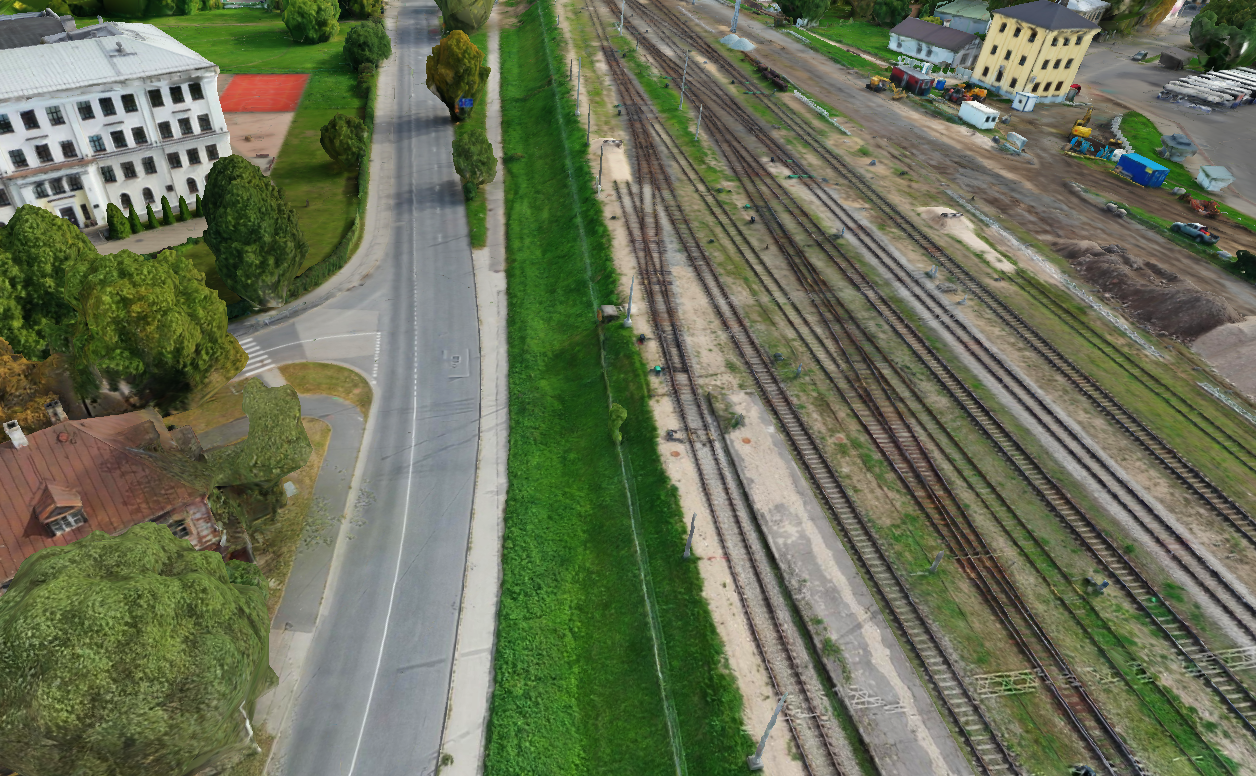

Sample renders of the 3D model.



Project 2: September 2021

Input: 32,000 photographs from 3 drones. 10km. 16 GCP points.
Ouput: model split into 8 pieces (shared edges), each piece approximately 10 million triangles and each with 2 x 16K textures.

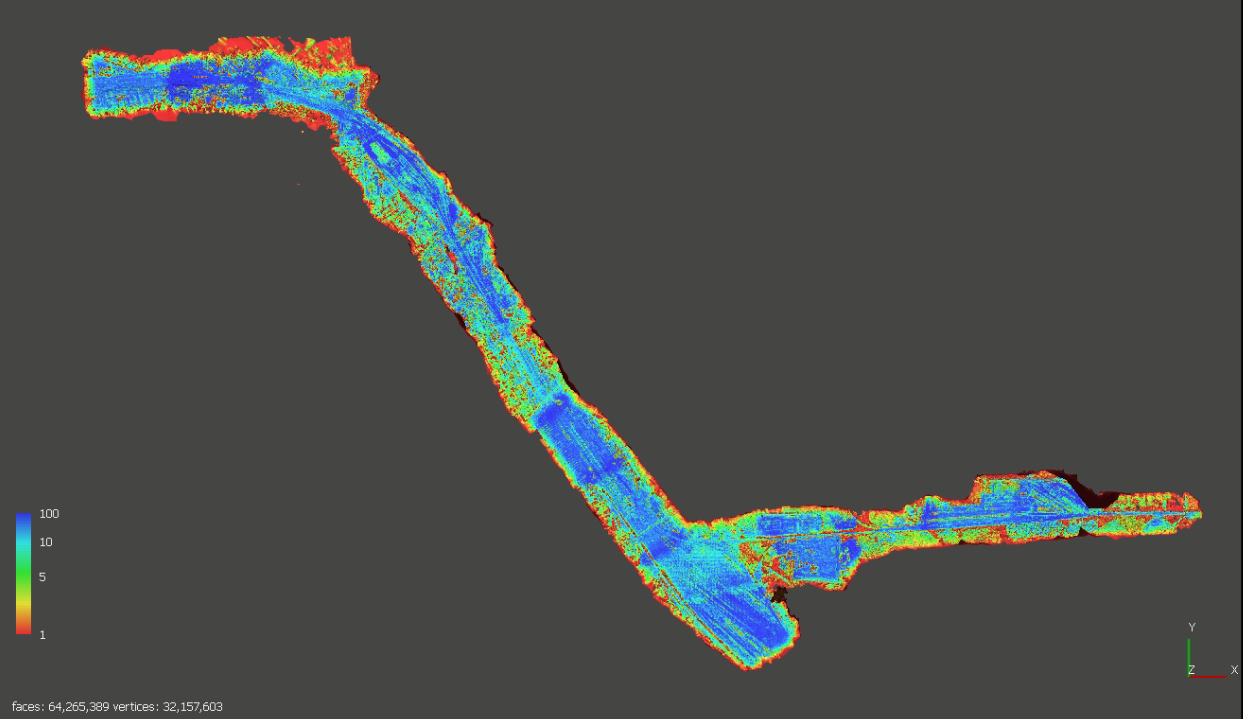

Confidence data

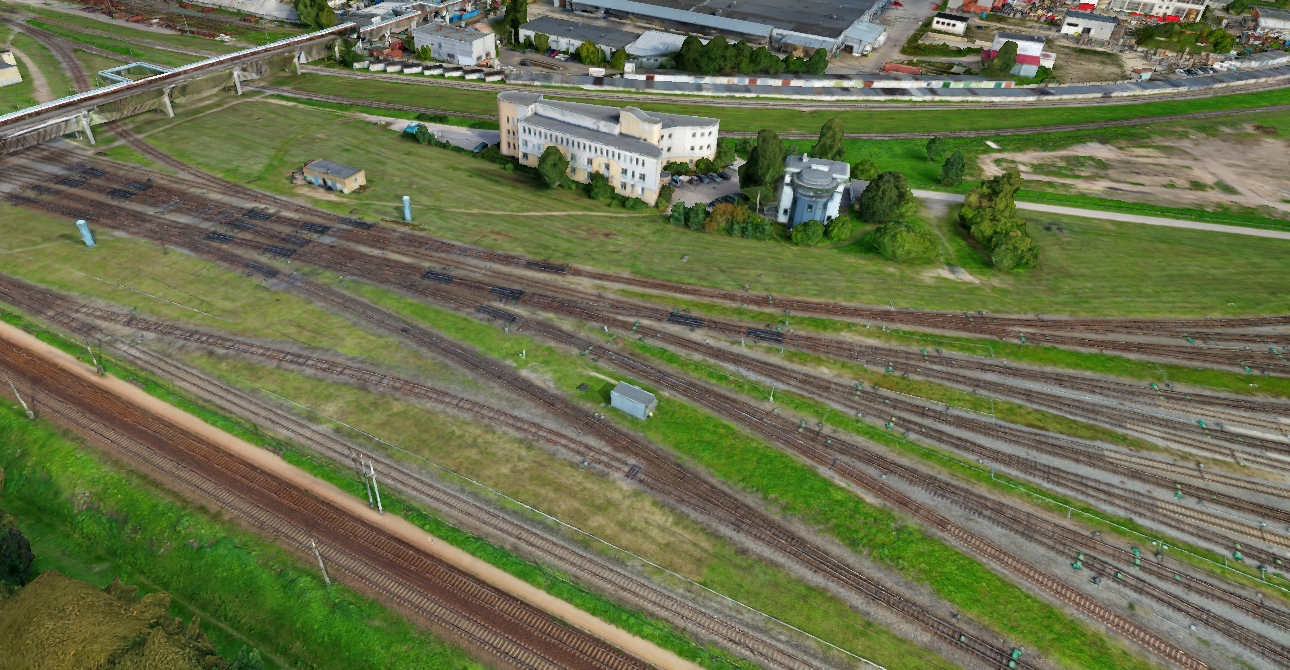

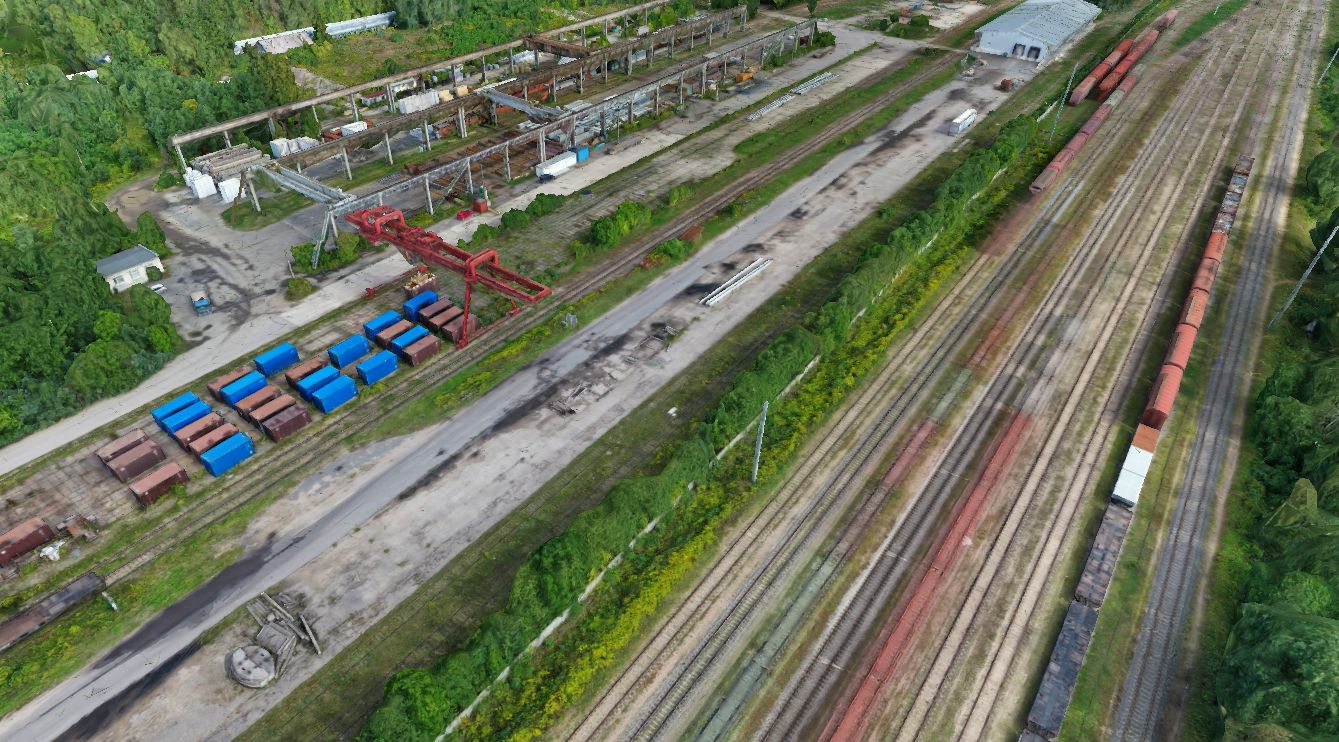

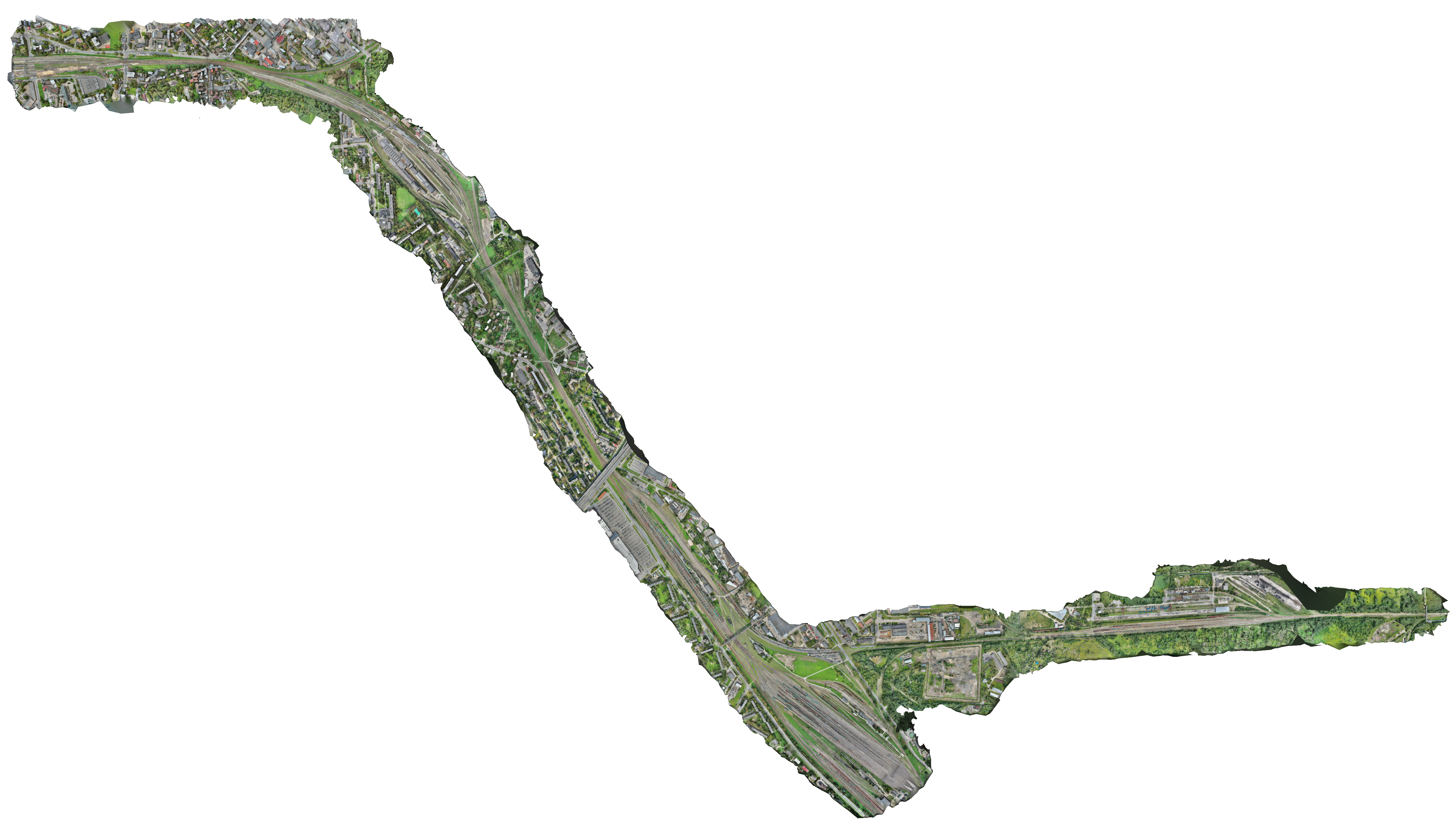

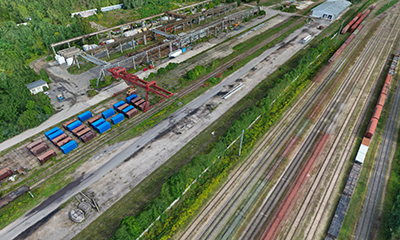

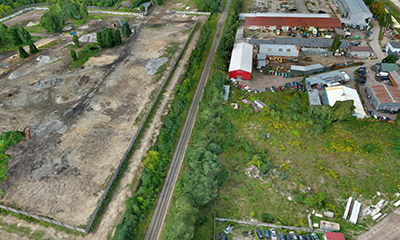

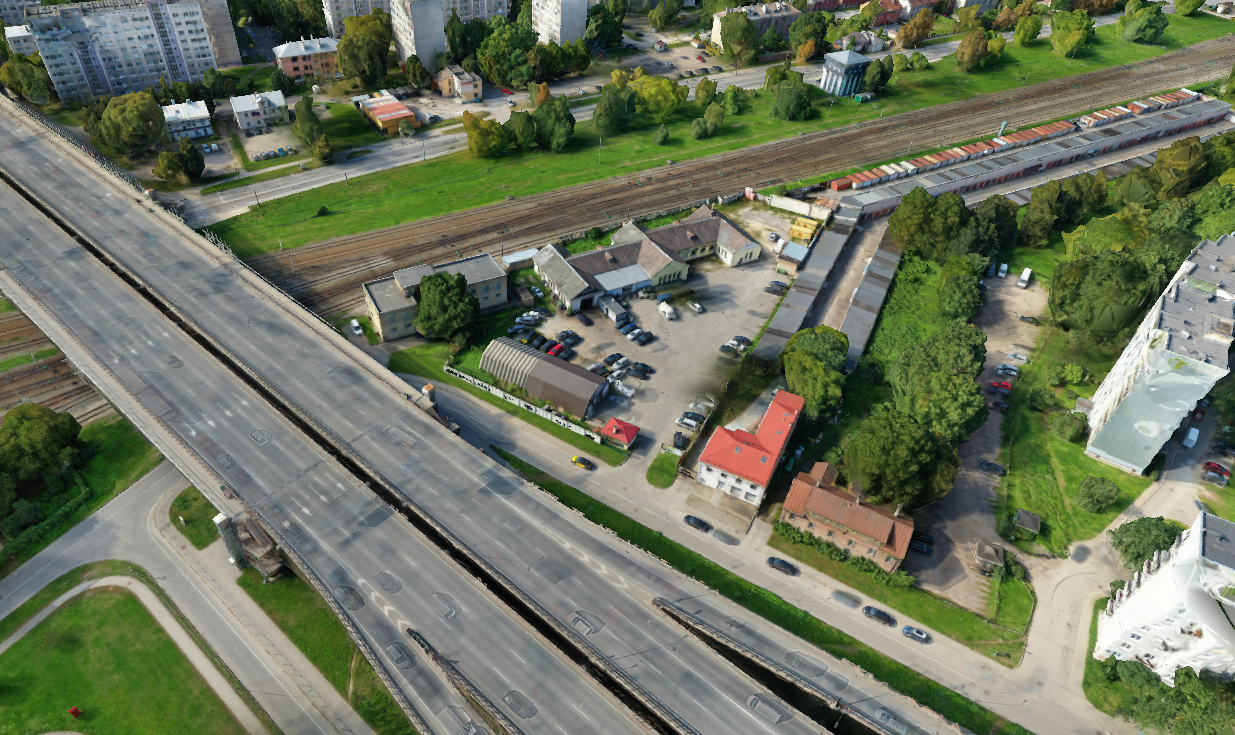

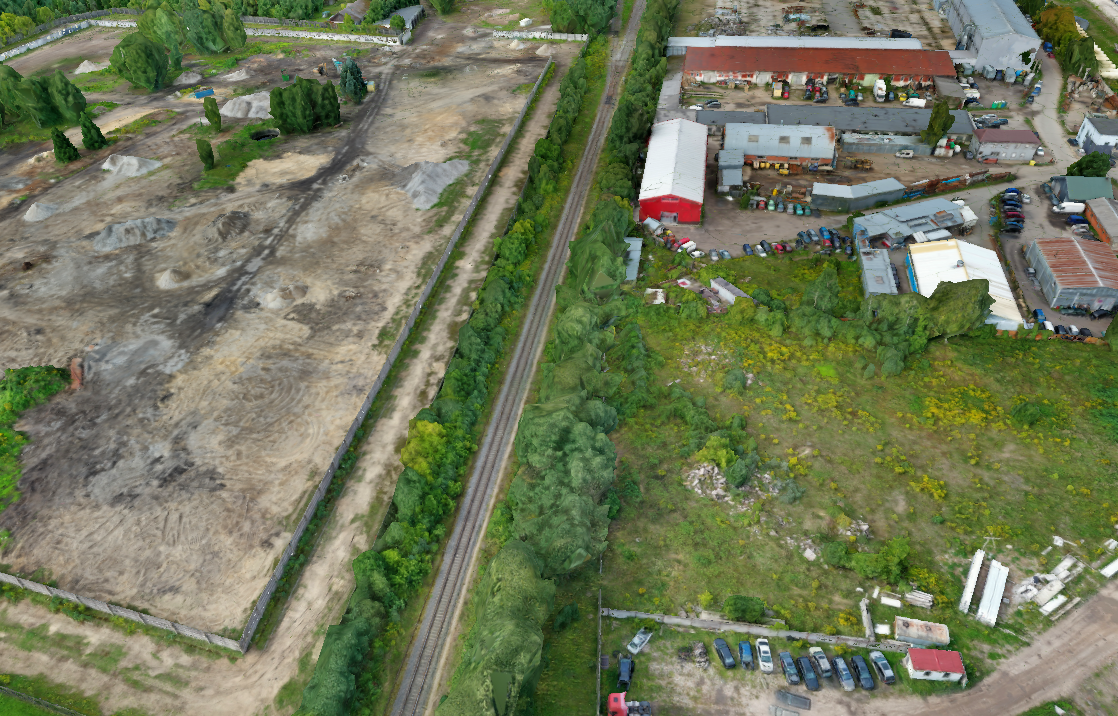

Screen captures of the 3D model.
