 Figure 6

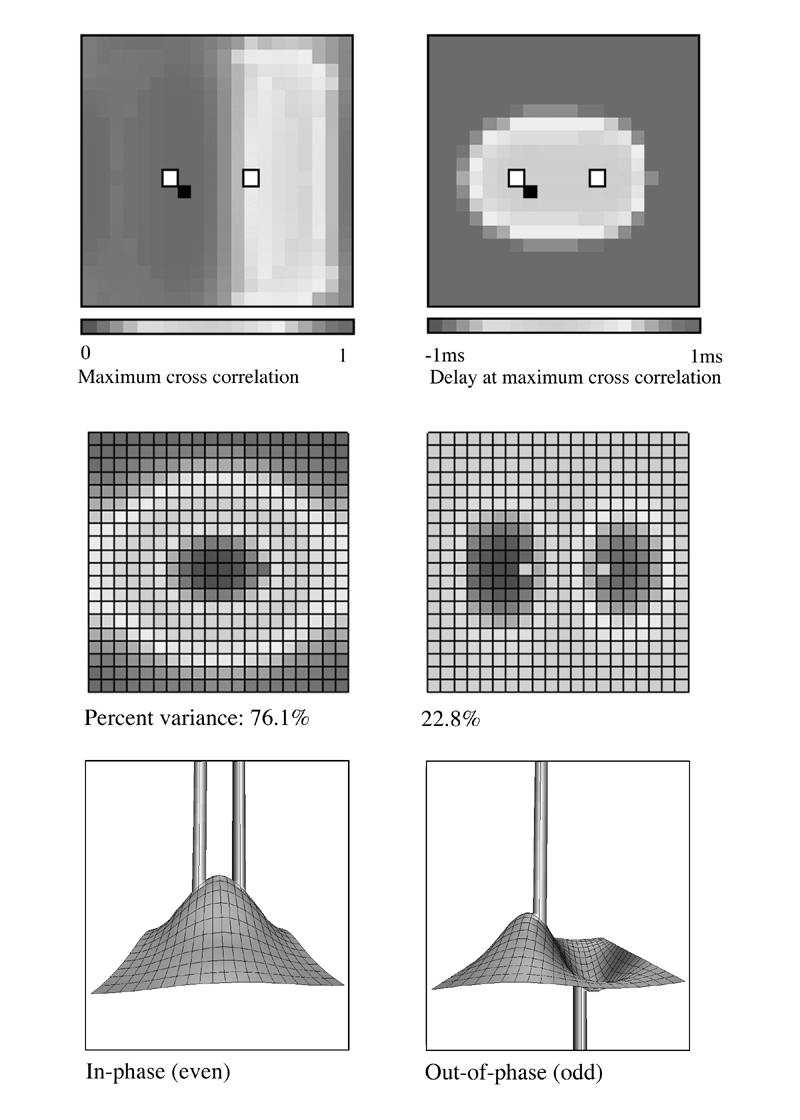

A simulated cortical field driven by uncorrelated white noise inputs at two sites on the cortical surface. Top: Sites of input shown by white squares. Cross-correlations and delays, with respect to the reference site at the black square. Middle: first and second eigenmodes of the travelling waves radiating out from the sites of input. Bottom: A schematic representation of the way in which the first and second eigenmodes arise from addition of even components, and cancellation of odd components, in the extended cortical field.
|
