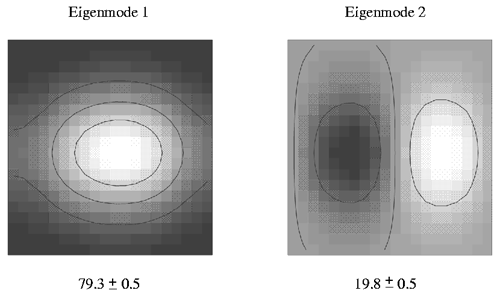

Figure 3.
First two mean
eigenvectors for 25 different noise seeds for PCA done over an interval of
20000 timesteps (2 seconds) on the 20 x 20 lattice simulation of
physiological model.
Input and other
conditions as for Figure 2. The numbers beneath the images
indicate the percentage of variance
associated with each eigenvector and the
standard error on the basis of 25
runs.
|
