Computer Representation and Rendering of Trees

Written by Paul Bourke
April 1989


Computer based models and rendering of natural objects is often very expensive in terms of storage requirements and processing load. This is especially so when attempting to incorporate plants into scenes for applications such as landscape architecture where a complete 3D description is often desirable. Even a very simple tree for example contains a large number of branches and leaves. A number of techniques for representing trees in models designed for computer based rendering will be discussed leading up to the ideal method of a full 3D description.

Painting

A very common method of incorporating plants in computer generated images is to paint the images on afterwards. This method has a place where the extra complexity of actually putting plants in the 3D scene is too expensive. Given a skilled operator of a photo-touchup package the results can be very good. Of course there can be a considerable amount of operator time especially placing trees partially behind other objects in the image. Adding shadows can also be quite time consuming. The main objection is that every image that is generated needs to be modified by hand thus negating one of the main advantages of computer rendering from 3D models, that is, once a 3D model is generated it is easy to create any number of views. Modifying the images after the rendering also removes the possibility of computer generated animations.

Crude 3D models

One way to represent a tree in 3 dimensions is to approximate it with some of the geometric building blocks provided by 3D modellers. In a very simple case, the truck (or branches) may be made from cylinders. The leaves may be a sphere sitting on top of the trunk.

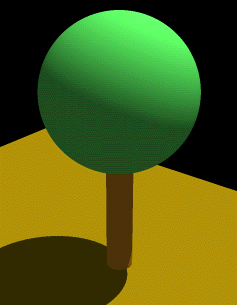

If this is coloured appropriately then in the context of a landscape it is easily recognised as a tree and not a toffee-apple.
This method has been used for quite a while, it doesn't add a lot of complexity to the computer model and in fact most rendering packages can handle cylinders and spheres more efficiently than other geometric primitives such as planes. An extension is to map a leaf texture onto the sphere and this may even have a transparency component, a bark texture can be mapped onto the trunk.

There are very serious limits to the realism of a tree created in this way. While this may not be a problem for scenes which only have simple rendering techniques applied to them (Gouraud or Phong shading), they can look quite out of place if the rest of the scene is rendered with a high level of realism.

Silhouettes

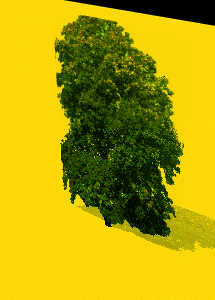

A very common approach when improved realism is important but where it is still desirable to keep the data content down is to create a 2D tree or slice that is positioned in a 3D scene. This is usually accomplished by placing a plane in the scene and mapping a photo of a tree onto that plane as a colour map and placing a silhouette of the tree as a transparency map. It is straightforward to scan a number of tree types for species variation and to scale the planes for size variation.

The main problem with this approach is that the plane onto which the tree image is placed must stay perpendicular to the camera.
As a result of this many 3D modelling and rendering packages offer this feature, the camera can be "linked" to the normal of the tree plane so that as the camera is moved the tree plane rotates about its vertical axis to stay perpendicular. Another problem is obtaining images which have the same lighting conditions as will be used in the model. Otherwise the scene may be illuminated from one direction and the tree appear to be illuminated from another. This tree also casts incorrect shadows except in very special cases when the sun lies in the plane perpendicular to the tree plane. When the sun is in any other position the shadows are shear distorted projections of the correct shadow.

Detailed 3D models

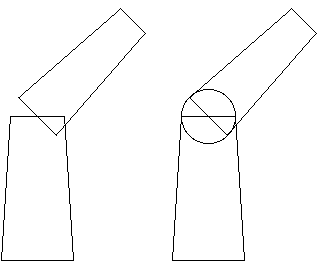

The ideal way of representing trees in a 3D model which overcomes all the rendering problems of other techniques is to create, as accurately as is possible and reasonable, the geometry of the tree. The geometric primitives are usually truncated tapered cones with spheres at the intersections embellished with an appropriate colour and bump map for the trunk and branches.

Examples of bark texture/bump maps.

Polygons or possibly spline surfaces are used for the leaves. Such trees can be generated in a number of ways both manually or by automatic methods given some of the desired characteristics of the plant.

It is often possible to create a tree "by hand", that is, to specify all the lim bs and leaf positions. This method is likely to be quite tedious and only creates a single plant. Some variation of the trees in the scene can be achieved by scaling and rotating a single description of a tree.

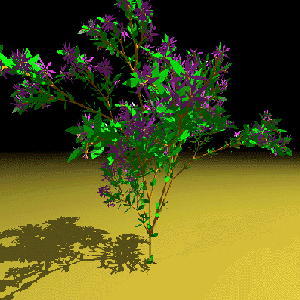

Another method is to use 3D L-Systems (Lindenmayer) to create the geometry, an example of this is the image of the bush with flowers.
This entire bush is generated from a series of very simple string rewriting rule s that are applied iteratively. It can be "grown" to any desired resolution and complexity which can be a great advantage when the scene is being composed. The plant can be generated to a low level of complexity while the scene is being modelled when interactivity and speed are important. When preview images are being created or animation paths tested the plant can be created to a higher resolution, and the plants can be formed at still higher complexity for the final renderings.

The third method is to use a design system specifically written for tree or plant generation.

These programs take parameters such as the average number branches per branch node, the average branch angle, a branch length reduction factor, etc. The software then grows the plant to the stage required. This method has the same advantage as L-Systems in that plant complexity can be controlled. In specific plant generation software it is usually straightforward to form plants of a desired species, size, foliage, etc
The obvious advantage with full 3D trees is that they appear as normal elements in the scene to be rendered. They cast shadows as expected, they can be viewed from any position, and they can offer a high degree of realism. The disadvantages are the storage requirements and the increased processing time for the rendering process. It is not uncommon for a single plant to be formed from upwards of 100,000 polygons and/or cylinders, not all rendering packages can handle this complexity.

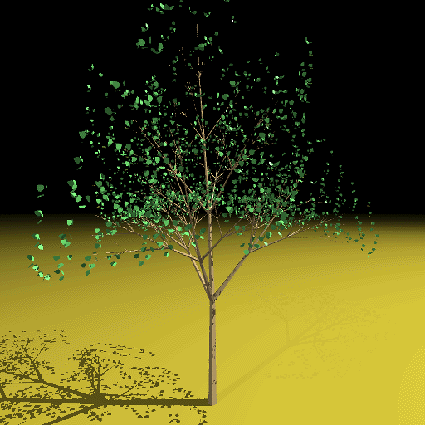

The examples here are from a number of different packages and show that software is readily available to handle complex plant descriptions. The other techniques have a place depending on software capabilities and the demands of the project being undertaken.

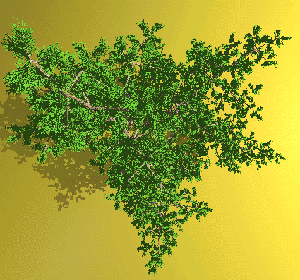

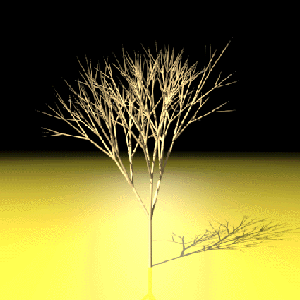

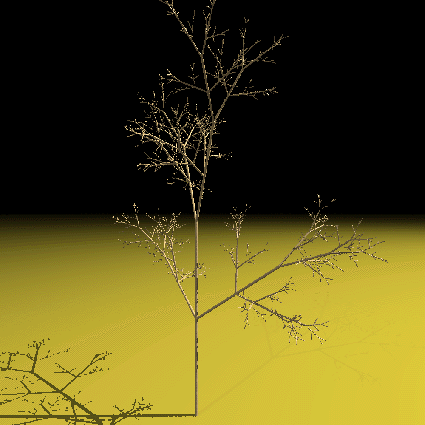

Further examples

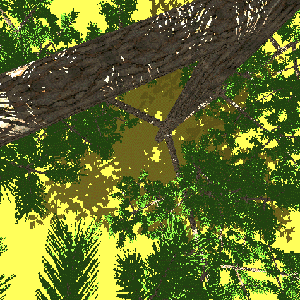

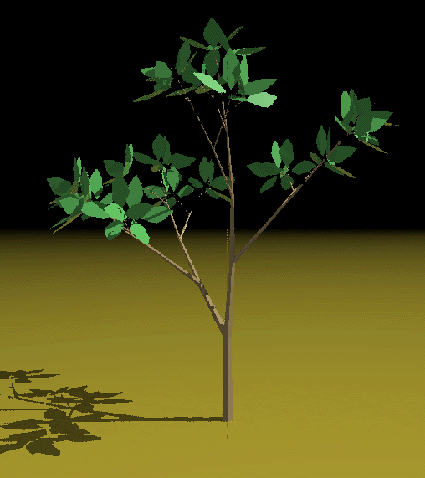

Inside a tree

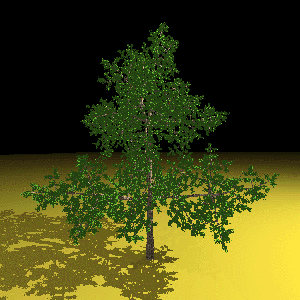

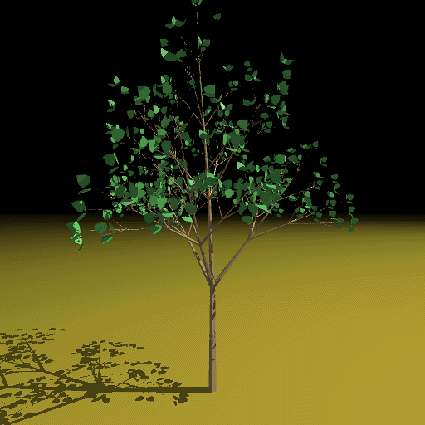

Simple shrub

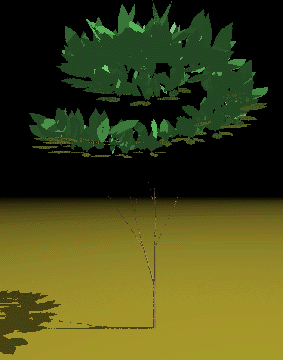

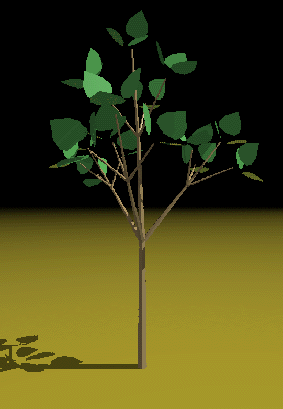

Spiral leaf bush

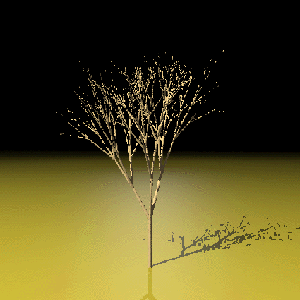

Particle system twig


Particle system twig

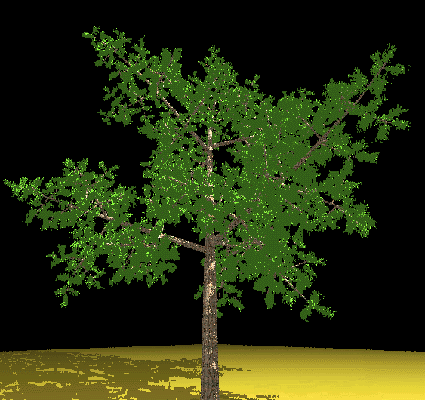

Top view of pine tree


High view of pine tree


Worm eye view of pine tree

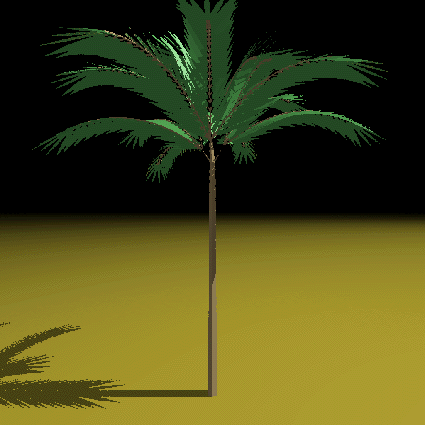

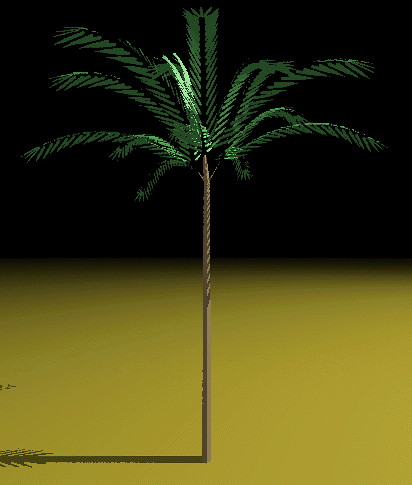

Palm tree


Palm tree

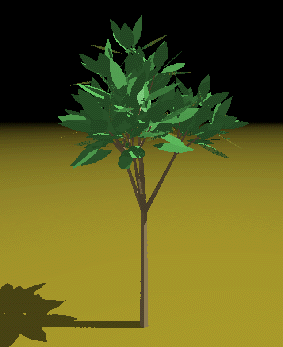

Simple bush
