In what follows various mathematical and graphical models will be presented for the surface features of some popular sports balls. In each case the equirectangular texture will be provided along with a couple of rendered images. The intent here is not to present high quality and realistic renderings, but rather to capture the underlying geometric essence. It should be noted that in many cases there is not one design for the balls, there is variation over the years as manufacturing has evolved but also variations due to different manufactures, in some case variations arising due to patents.

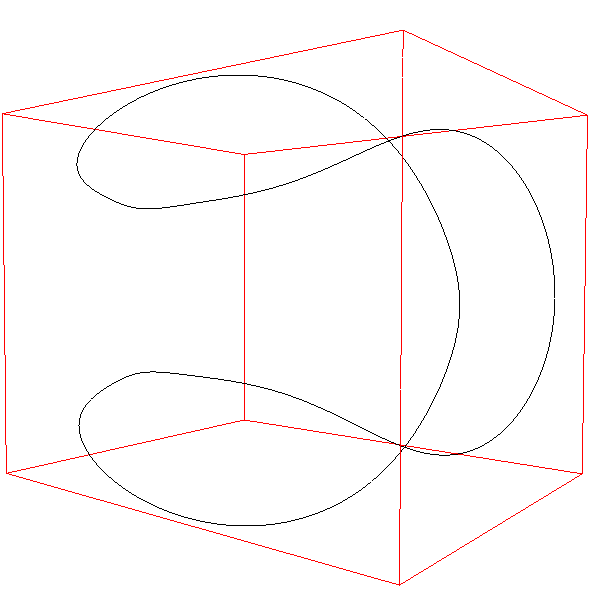

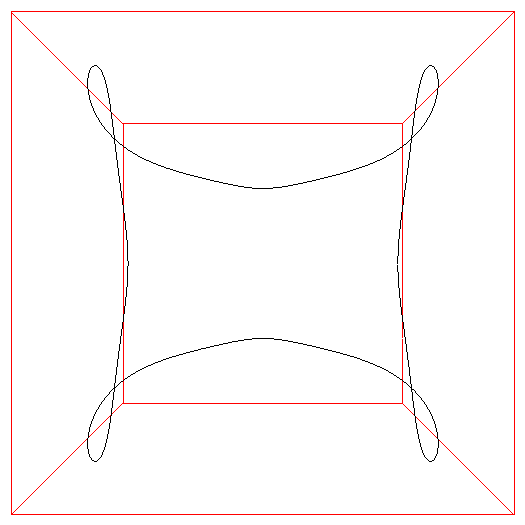

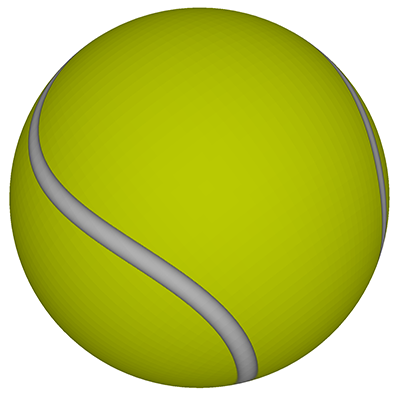

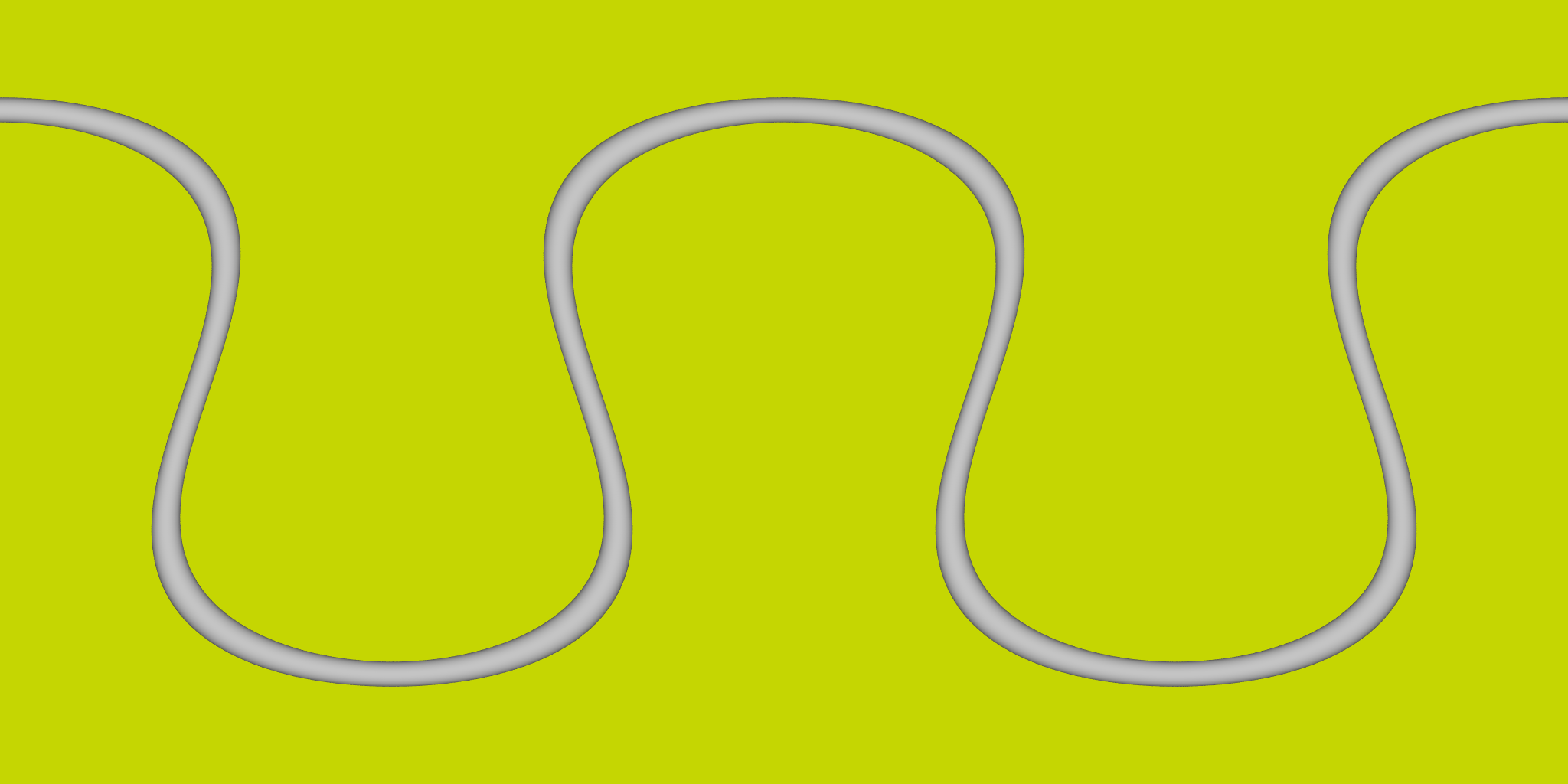

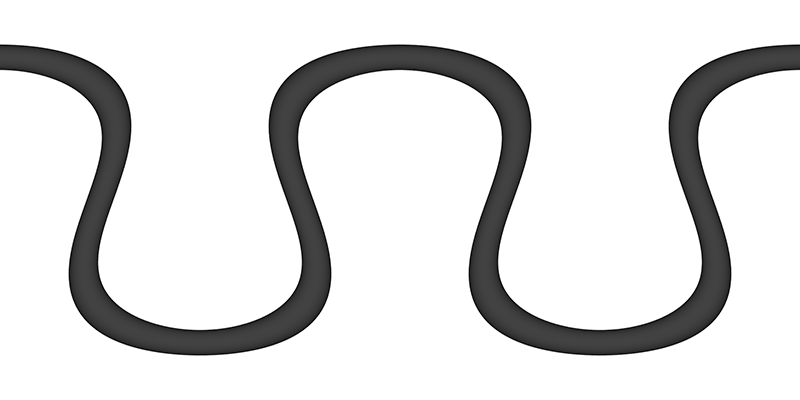

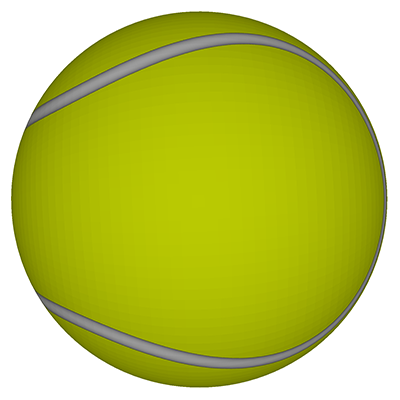

The shape of the seam on a tennis ball, like some other ball seams, arises from the initial goal of producing one 2D shape that can be cut out of a sheet of material and then stitched together in pairs. This is an example of dform surfaces. One proposed equation for the the seam is the following parametric equation

Where T ranges from 0 to 4pi and parameter A in the following is 0.44.

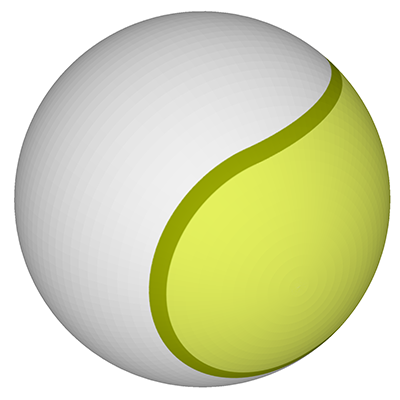

Another construction involves constructive solid geometry, namely the subtraction of a cylinder and box from a sphere.

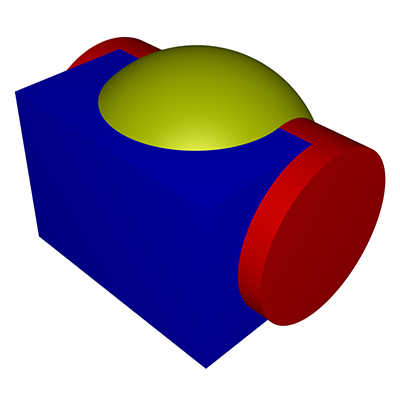

CSG elements: sphere, cylinder, box

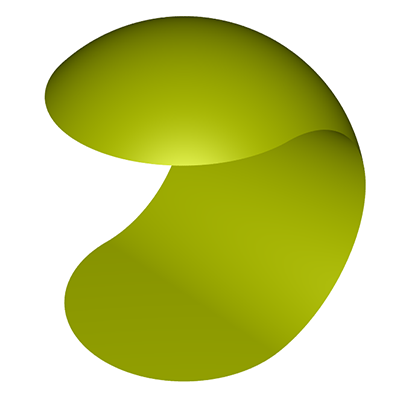

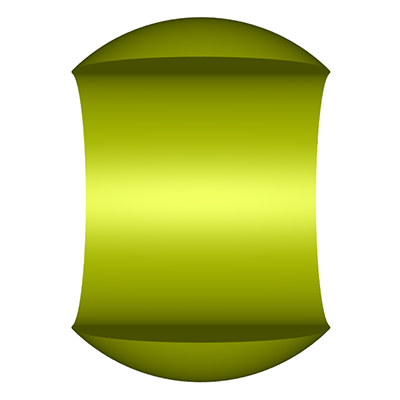

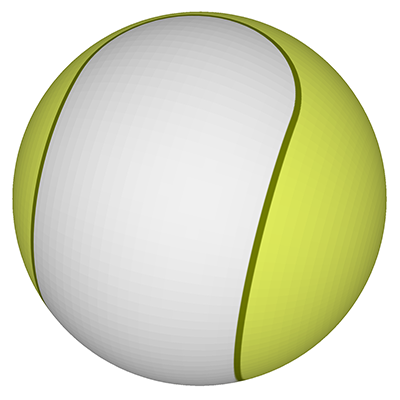

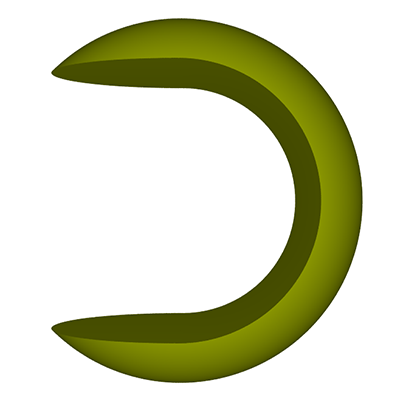

One half of ball, other half involved two rotations

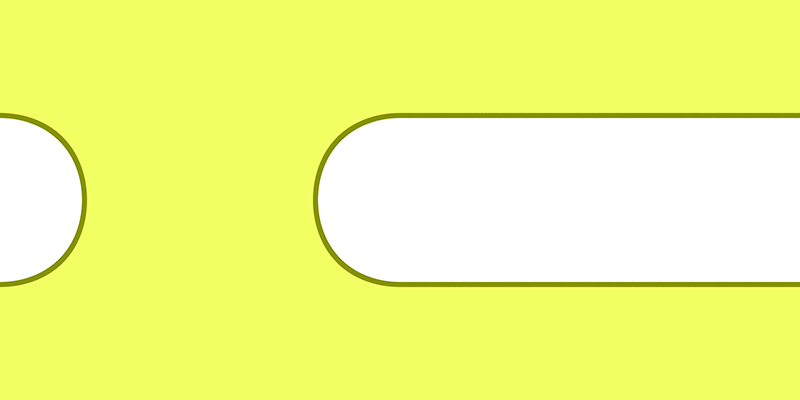

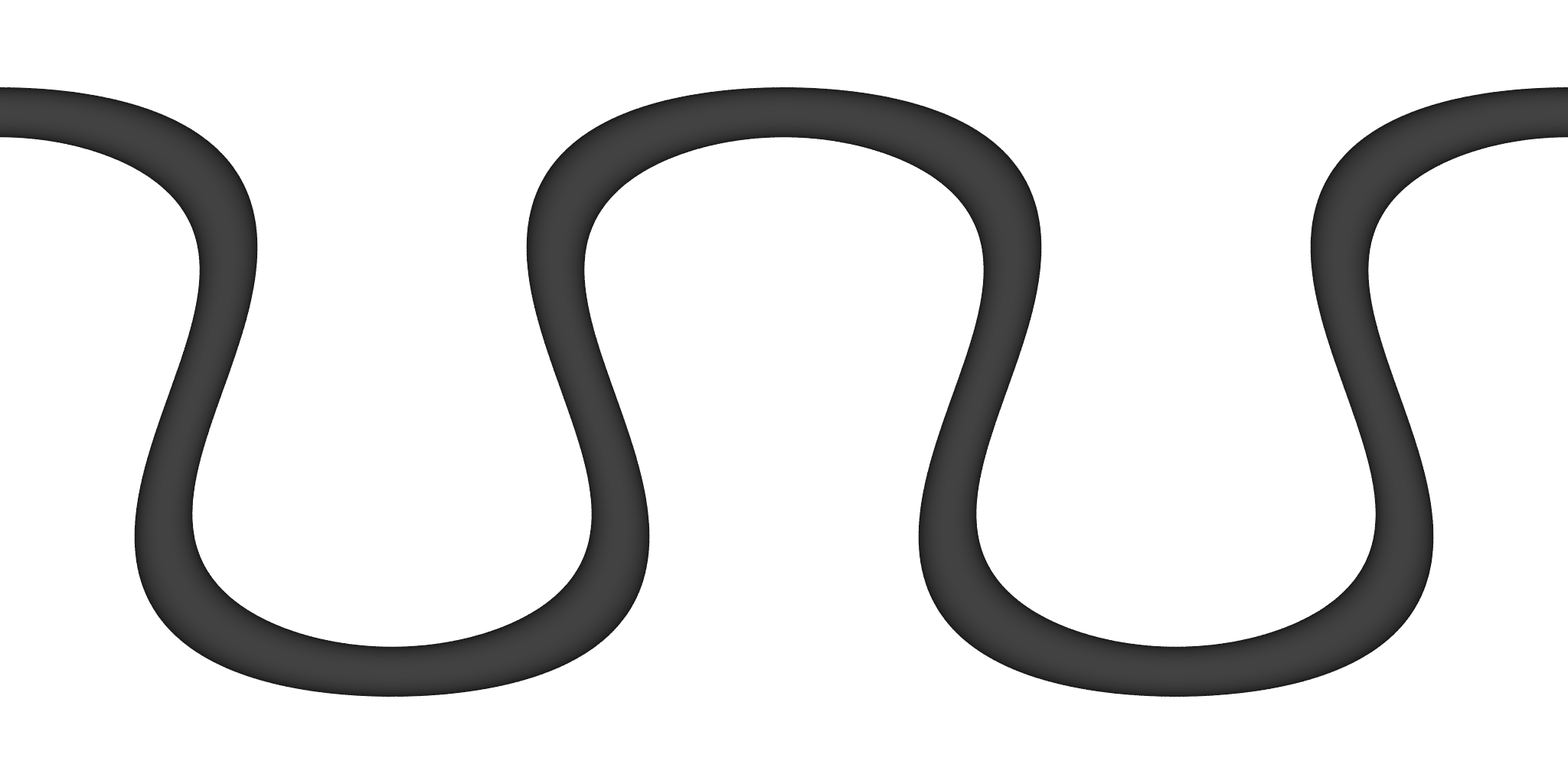

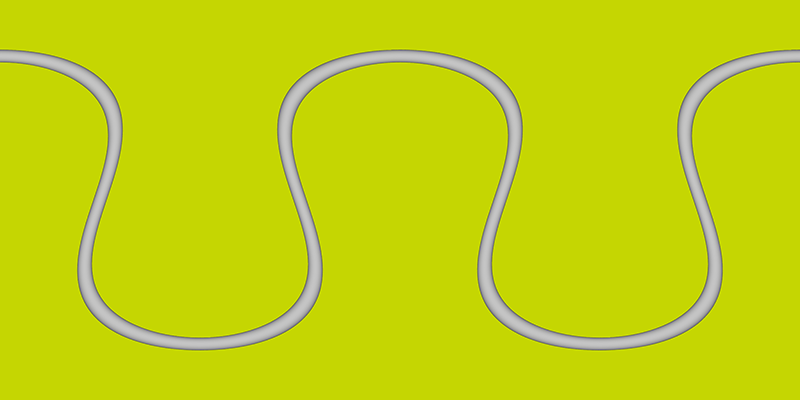

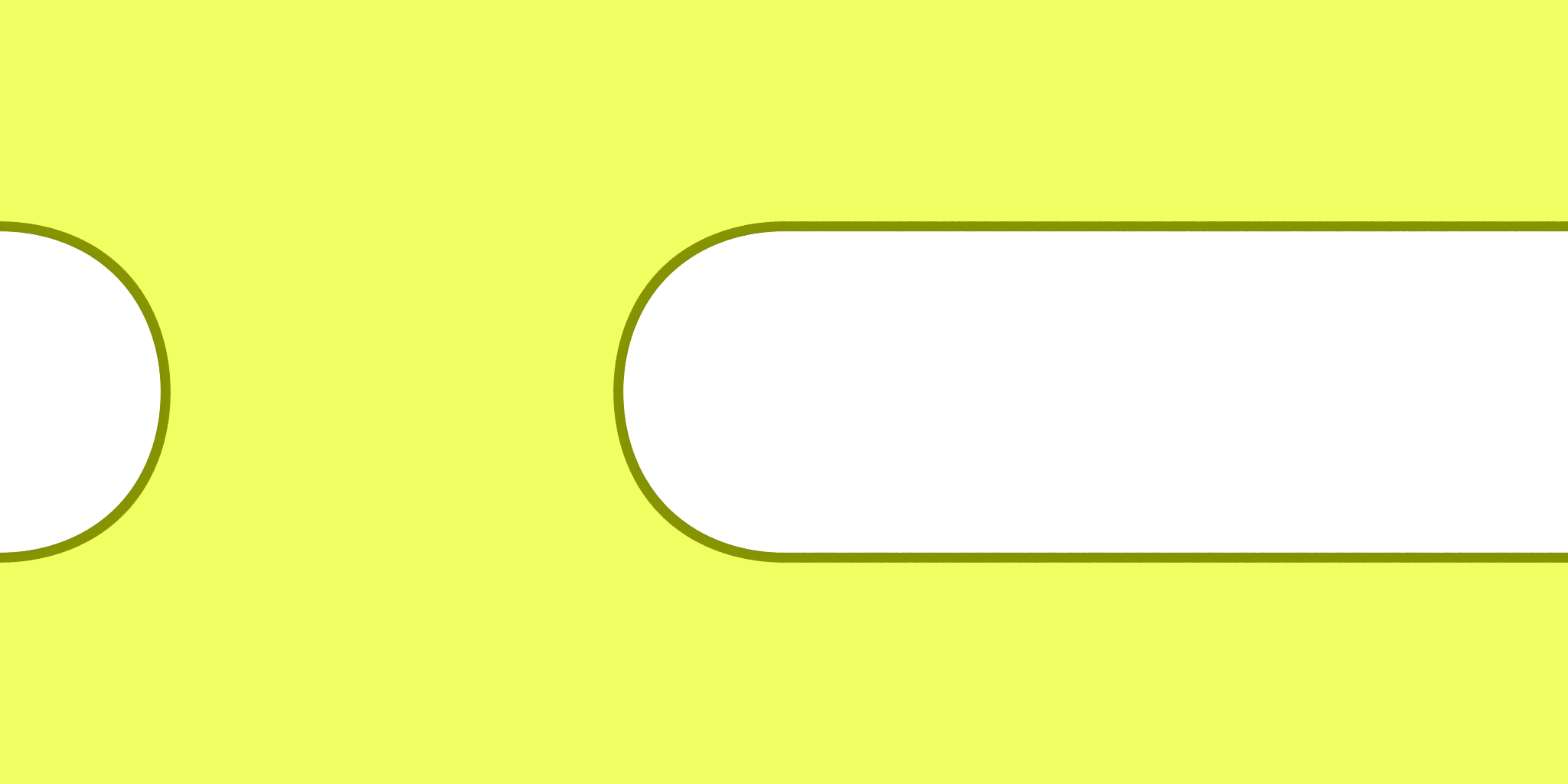

Equirectangular projection of one half of ball, the other half is the same form rotated 180 degrees about the vertical axis and then 90 degrees along the gap axis.

The relative size of the lobes is controlled by the relative size of the subtracted cylinder and box.

Subtracted cylinder of radius 0.7

Subtracted cylinder of radius 0.5

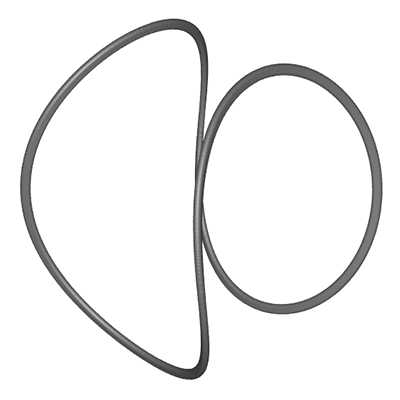

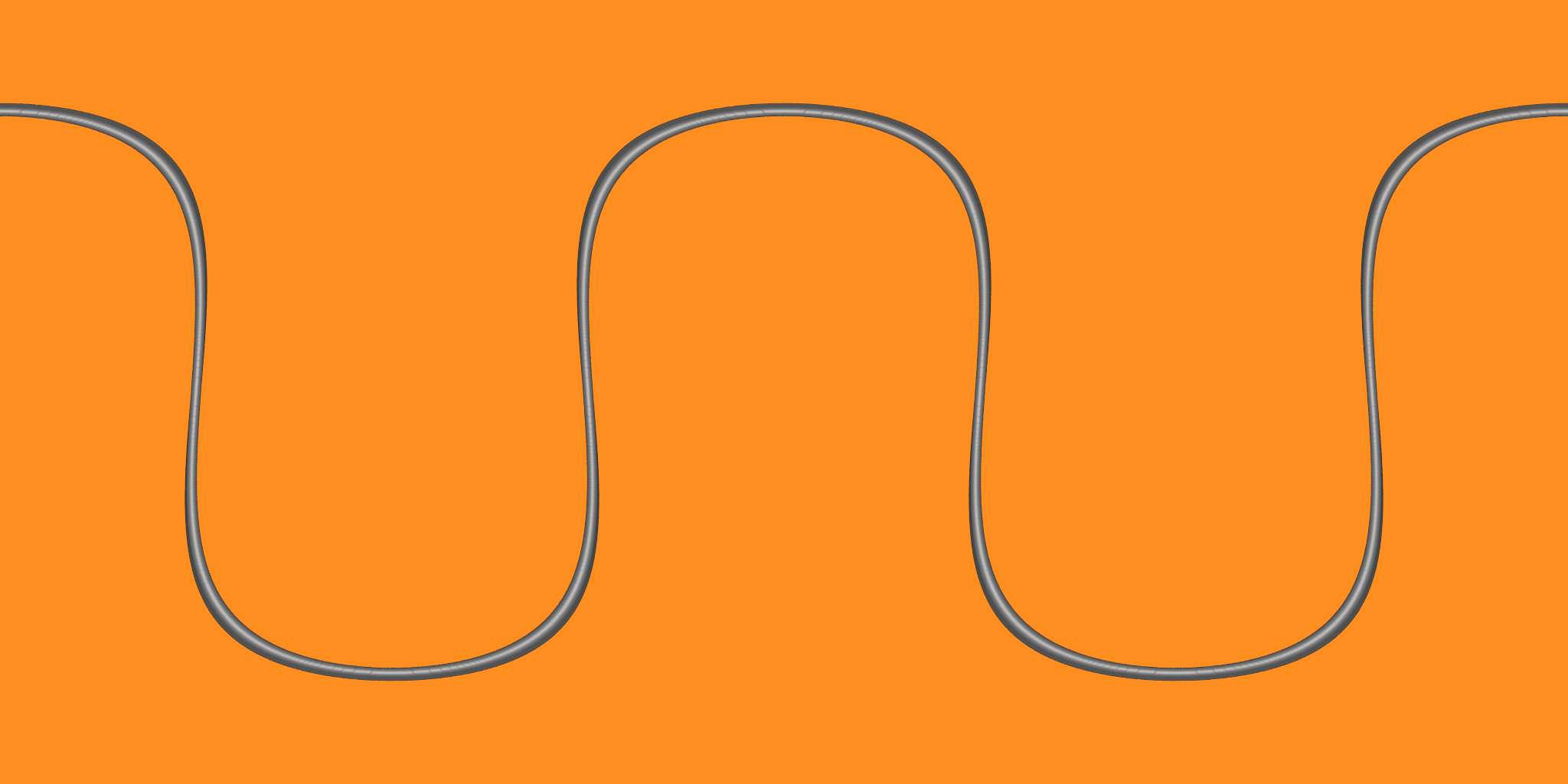

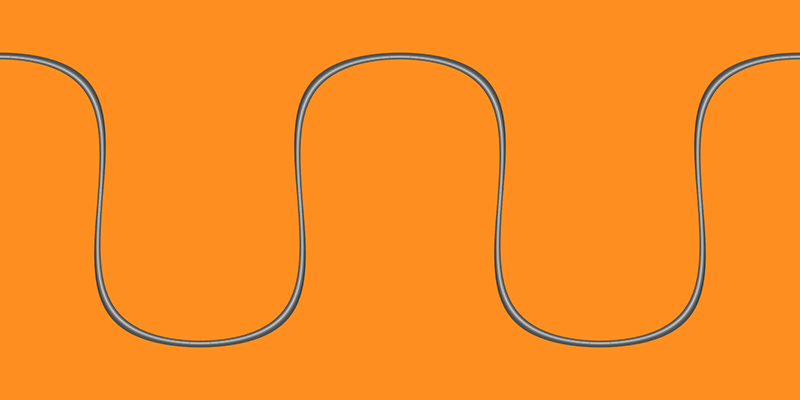

Another formation with good control over the seam spacing is to take the intersection of an Ennepers minimal surface with a sphere, the radius of the sphere controlling how close the lobes are.
Parametric equations for the Ennepers surface is

Where, in the figure below, -2 <= u <= 2, -2 <= v <= 2

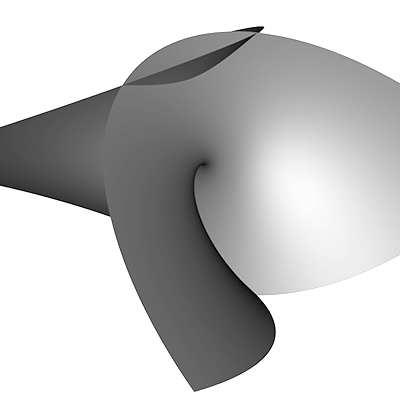

Ennepers minimal surface

Intersection with sphere of radius 0.5

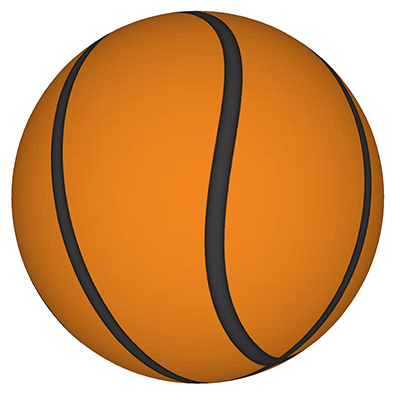

Basketball (Water basketball)

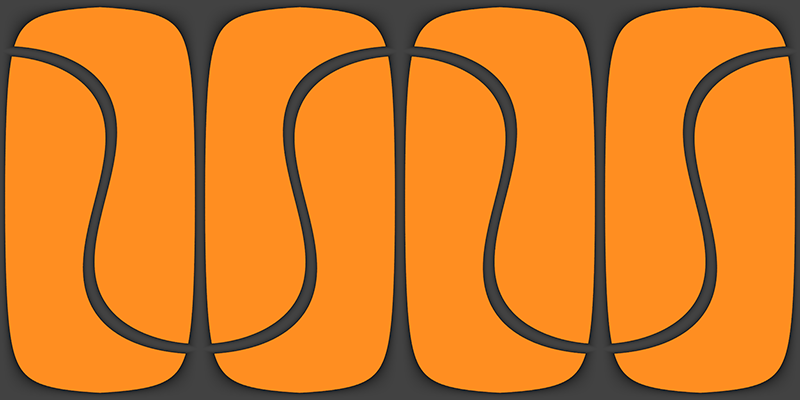

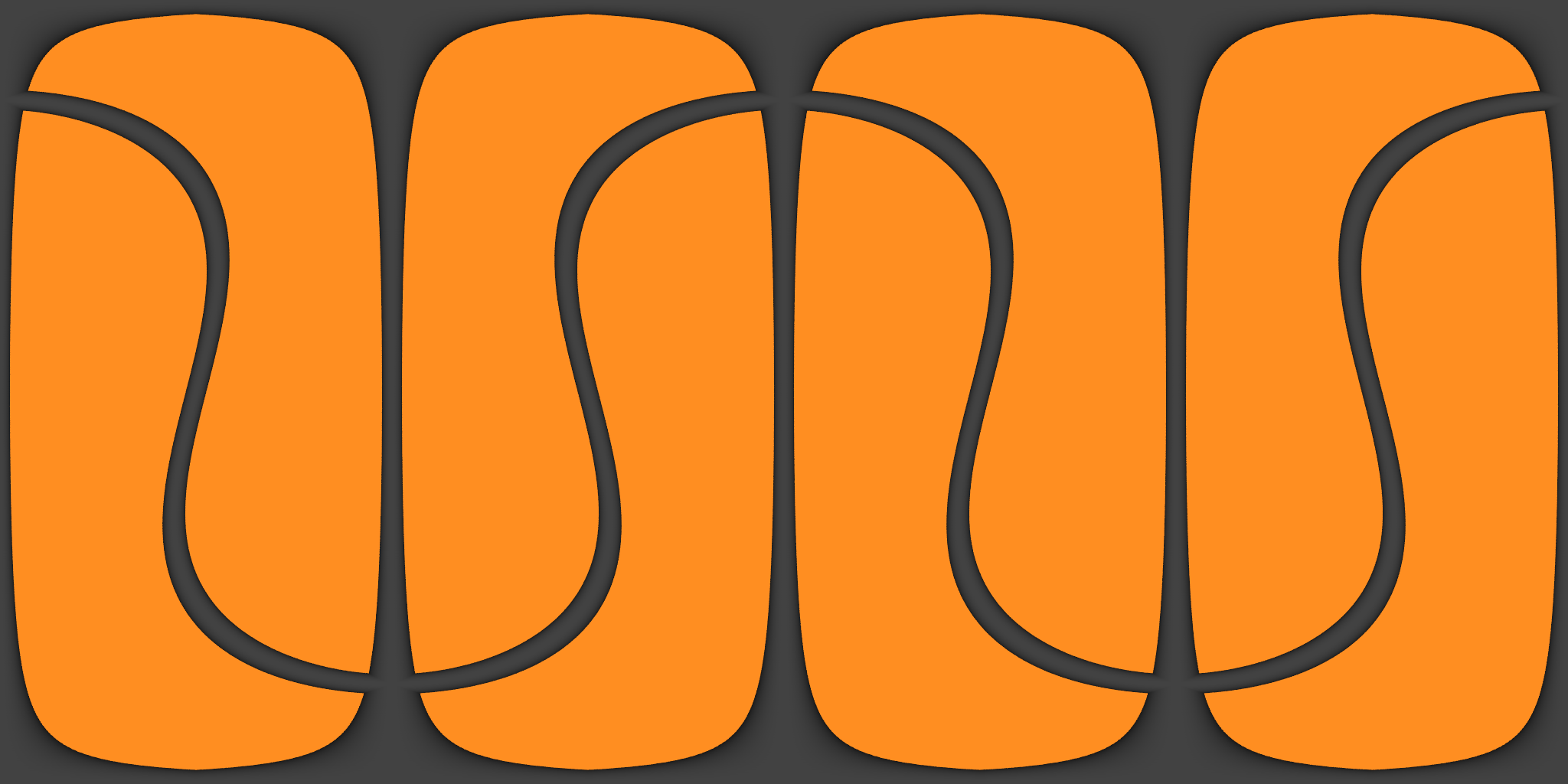

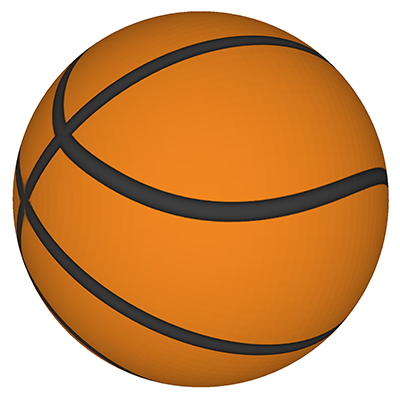

The main curved seam on a basketball can be created using the same techniques as for the tennis ball, it has an additional two seams at 90 degrees to each other.

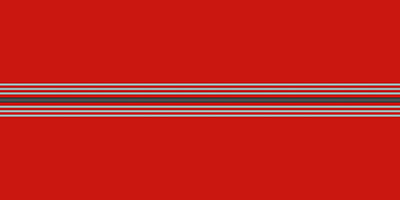

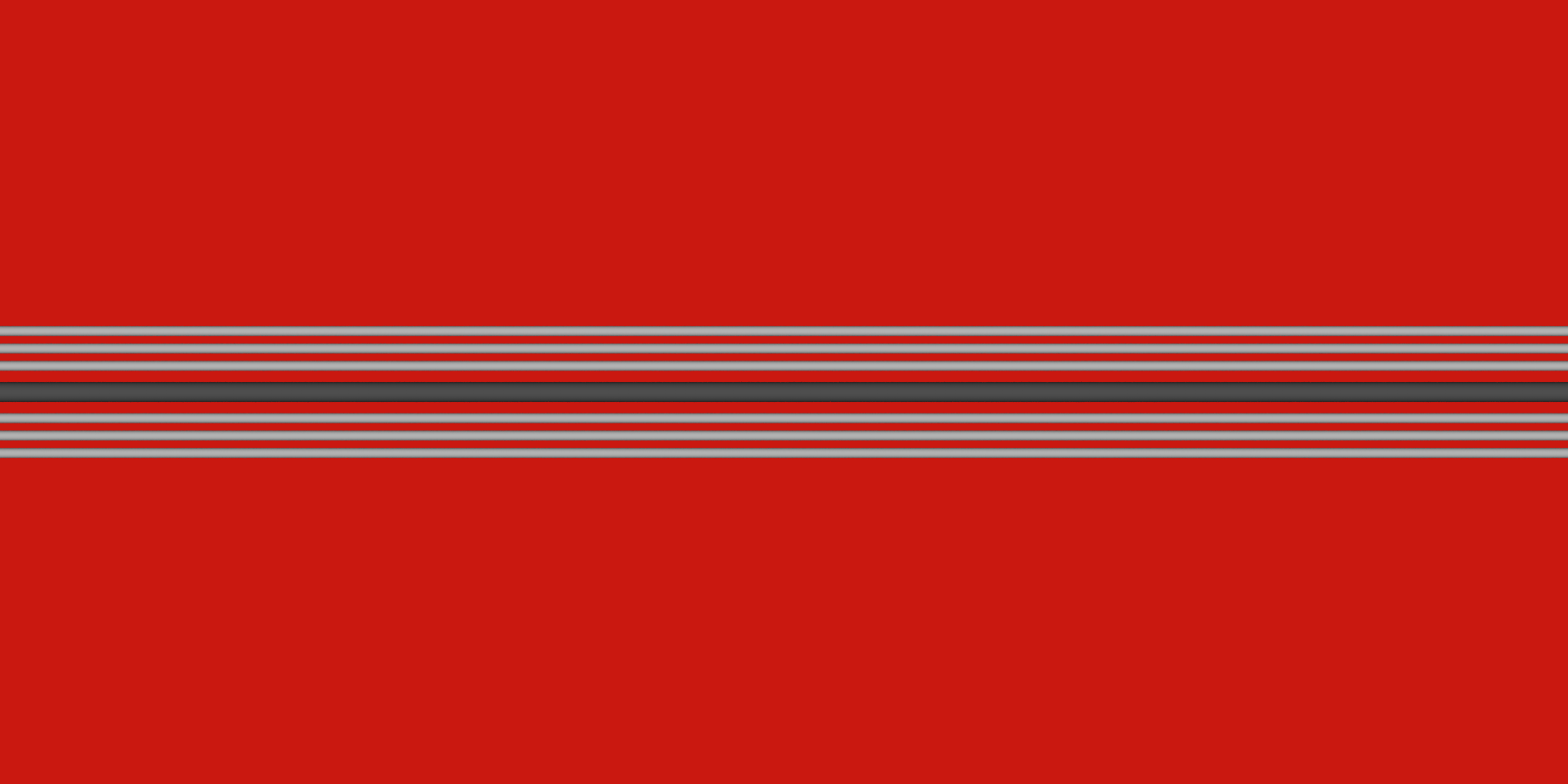

Cricket ball

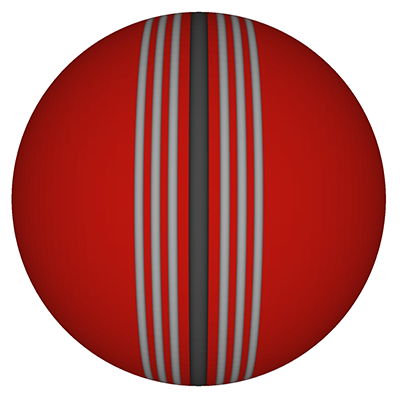

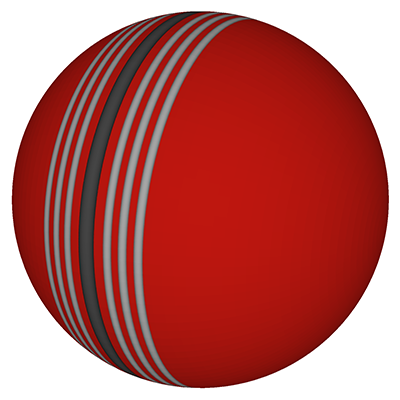

This is a rather dull case since a cricket ball only has a single seam between two hemispheres, dark line in the equirectangular below. The other curves represent the stitching which runs along lines of latitude on either side of the seam.

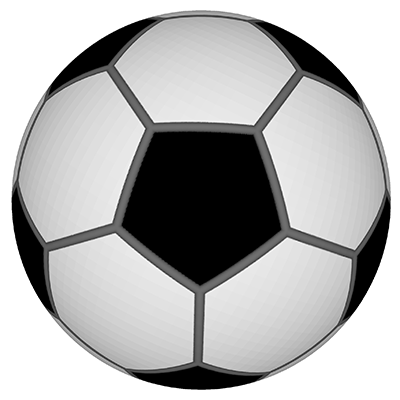

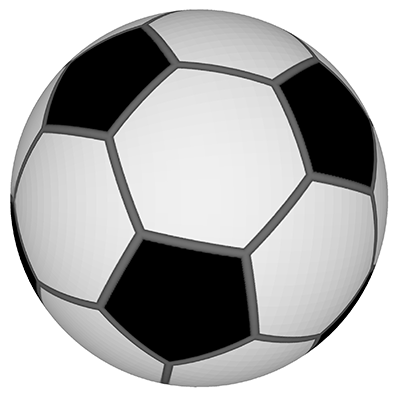

Soccer ball (Hand ball)

A soccer ball seam is the projection of a truncated icosahedron (see item 22 and 25) onto the surface of a sphere. There are 60 vertices, 90 seam edges, 20 regular hexagonal faces and 12 regular pentagonal faces. The truncated icosahedron is constructed by starting with an icosahedron with the 12 vertices truncated 1/3 of the distance. This creates 12 additional pentagon faces, and turns the original 20 triangular faces into regular hexagons.

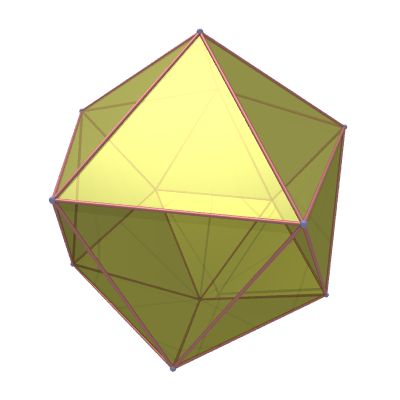

Icosahedron

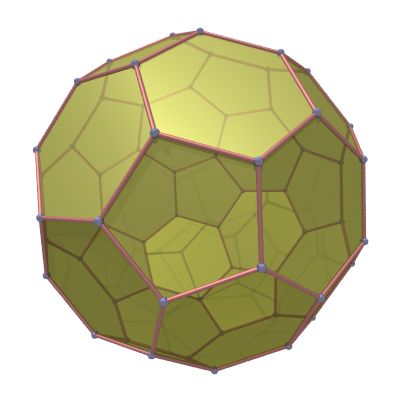

Truncated Icosahedron

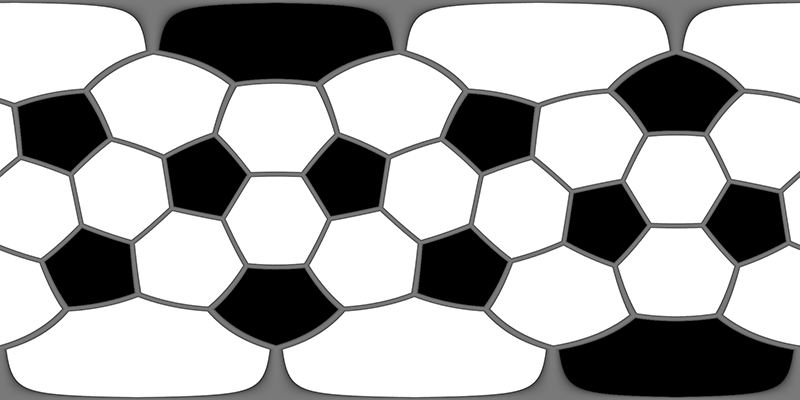

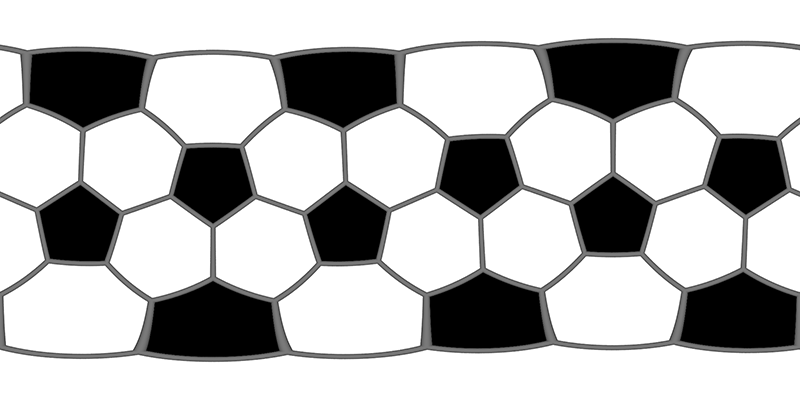

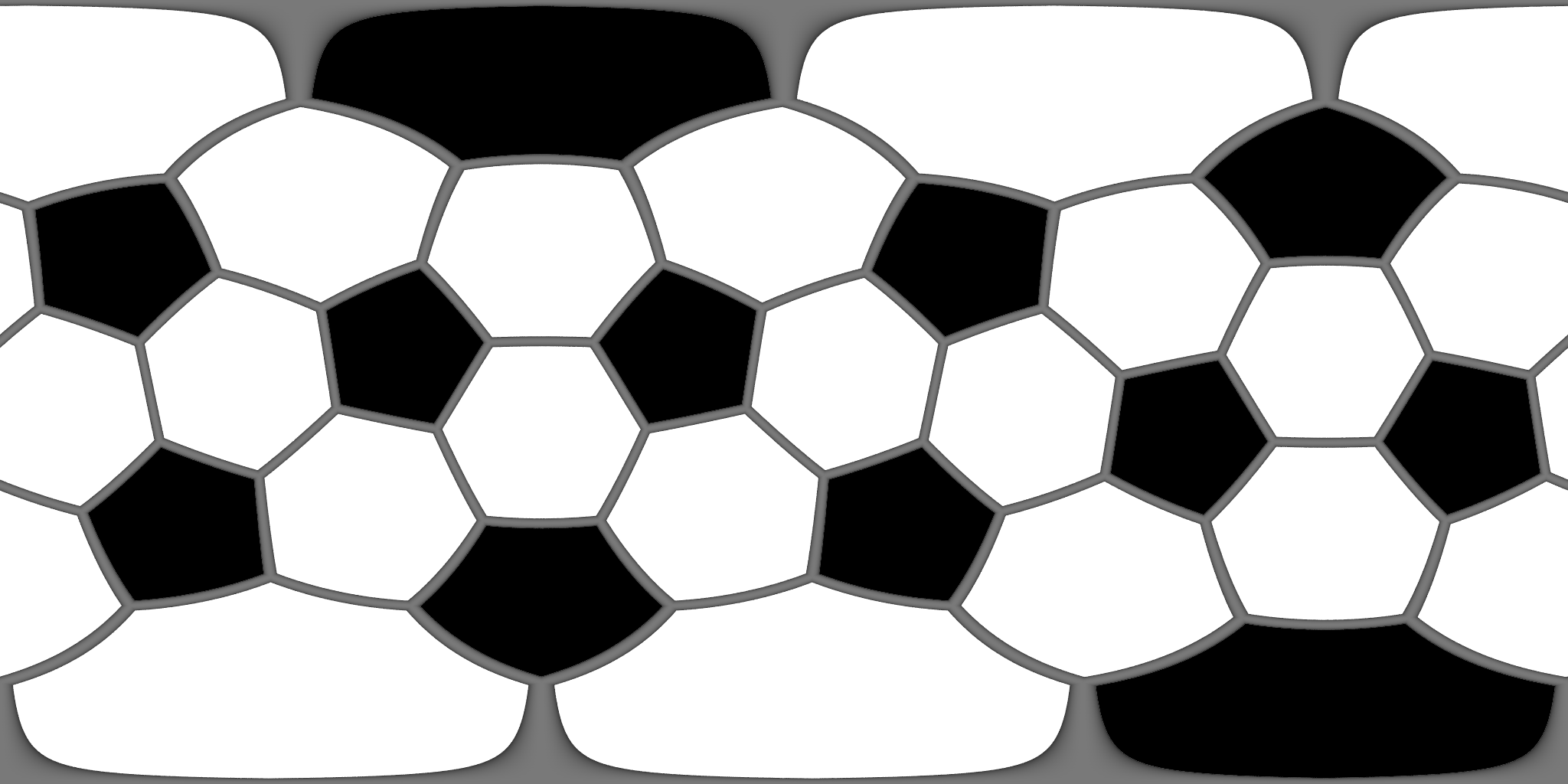

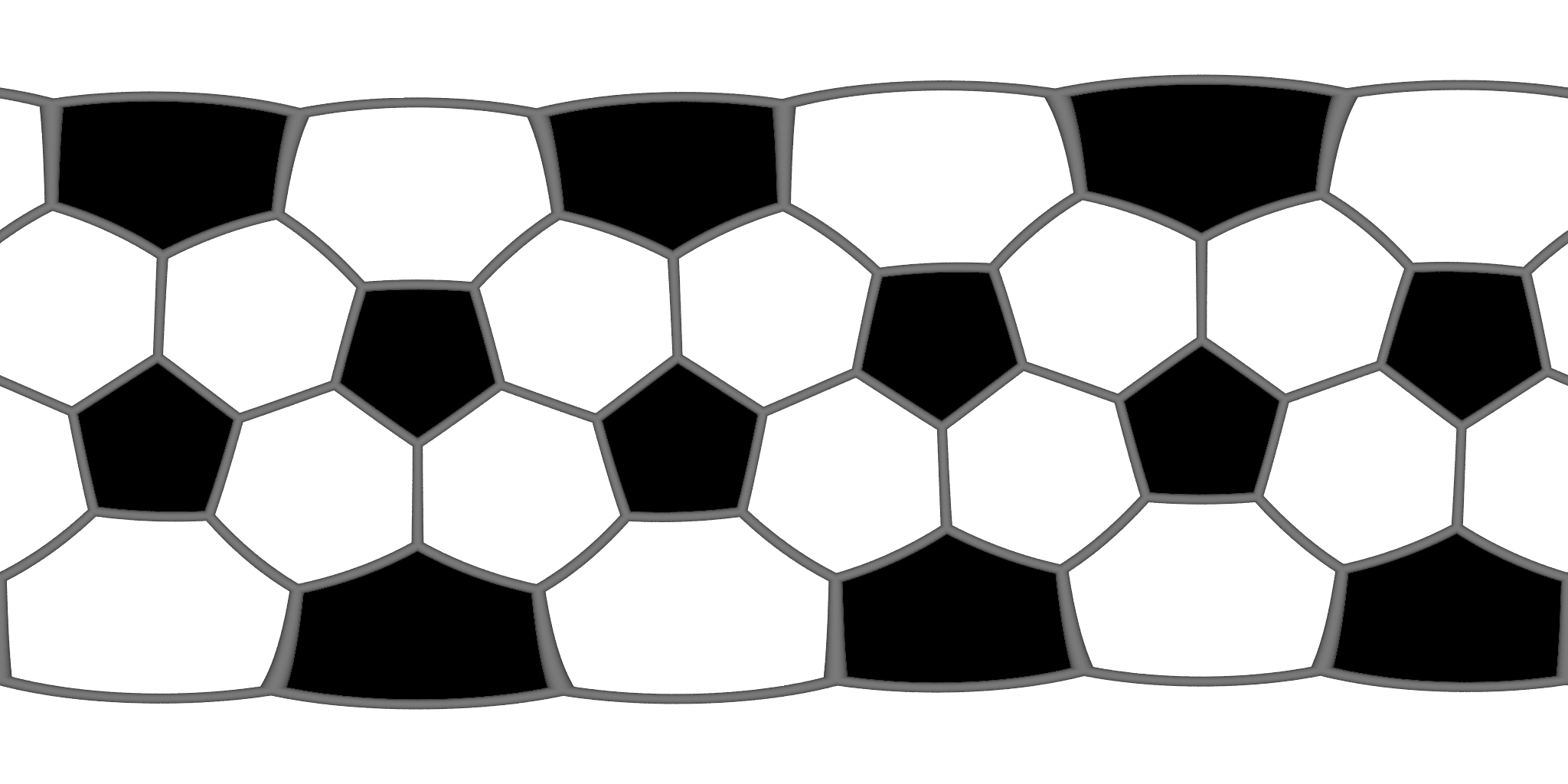

The map can be rotated to place the two hexagons at the poles making the equirectangular projection easier to understand.

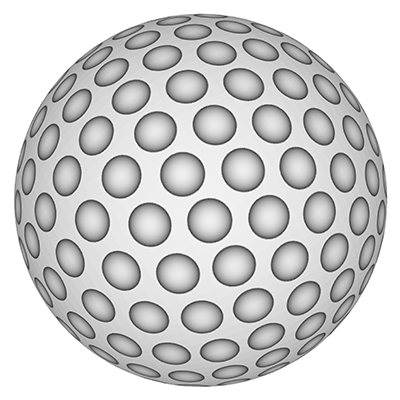

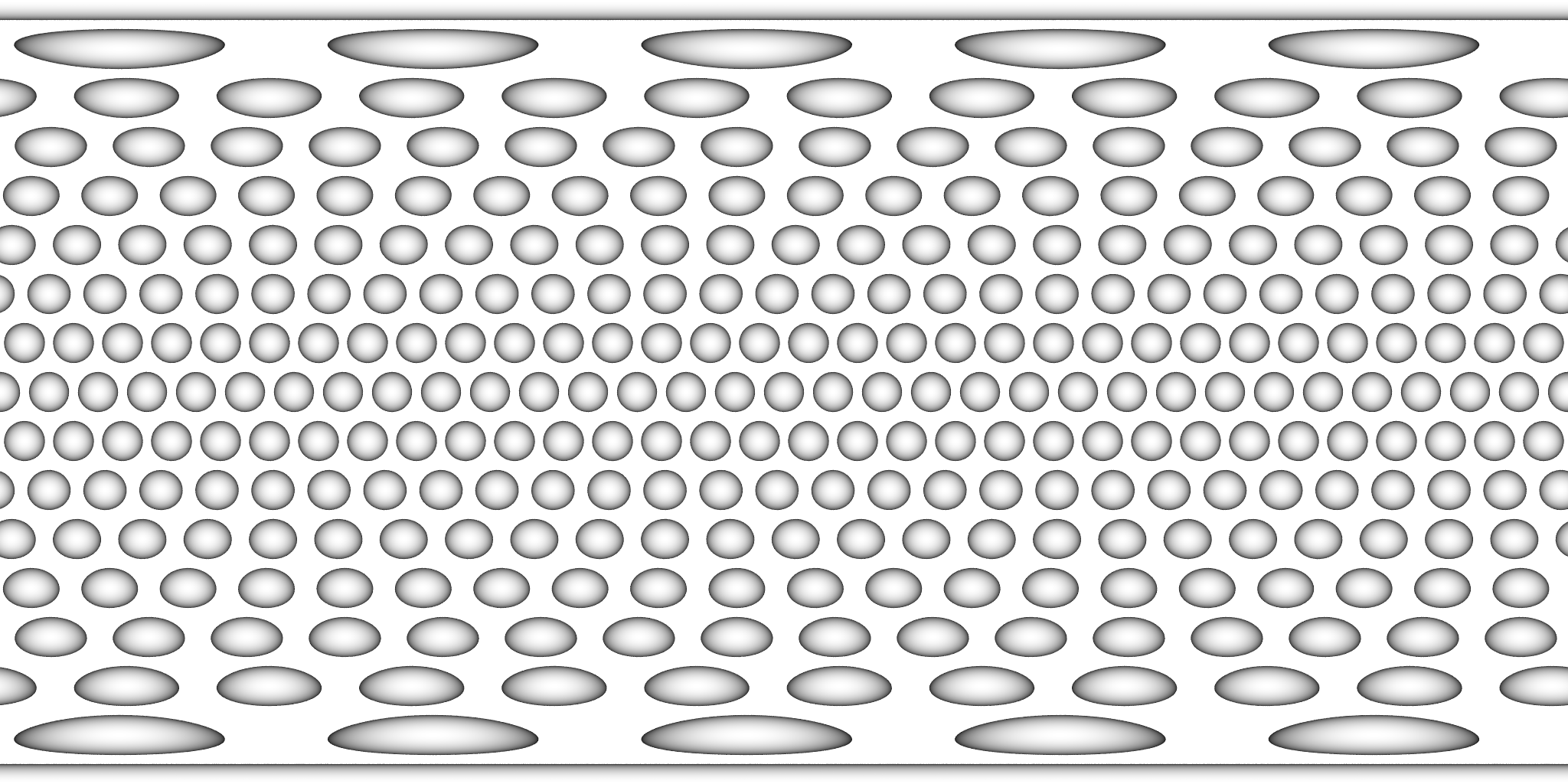

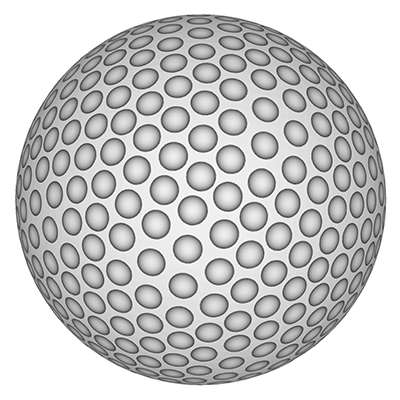

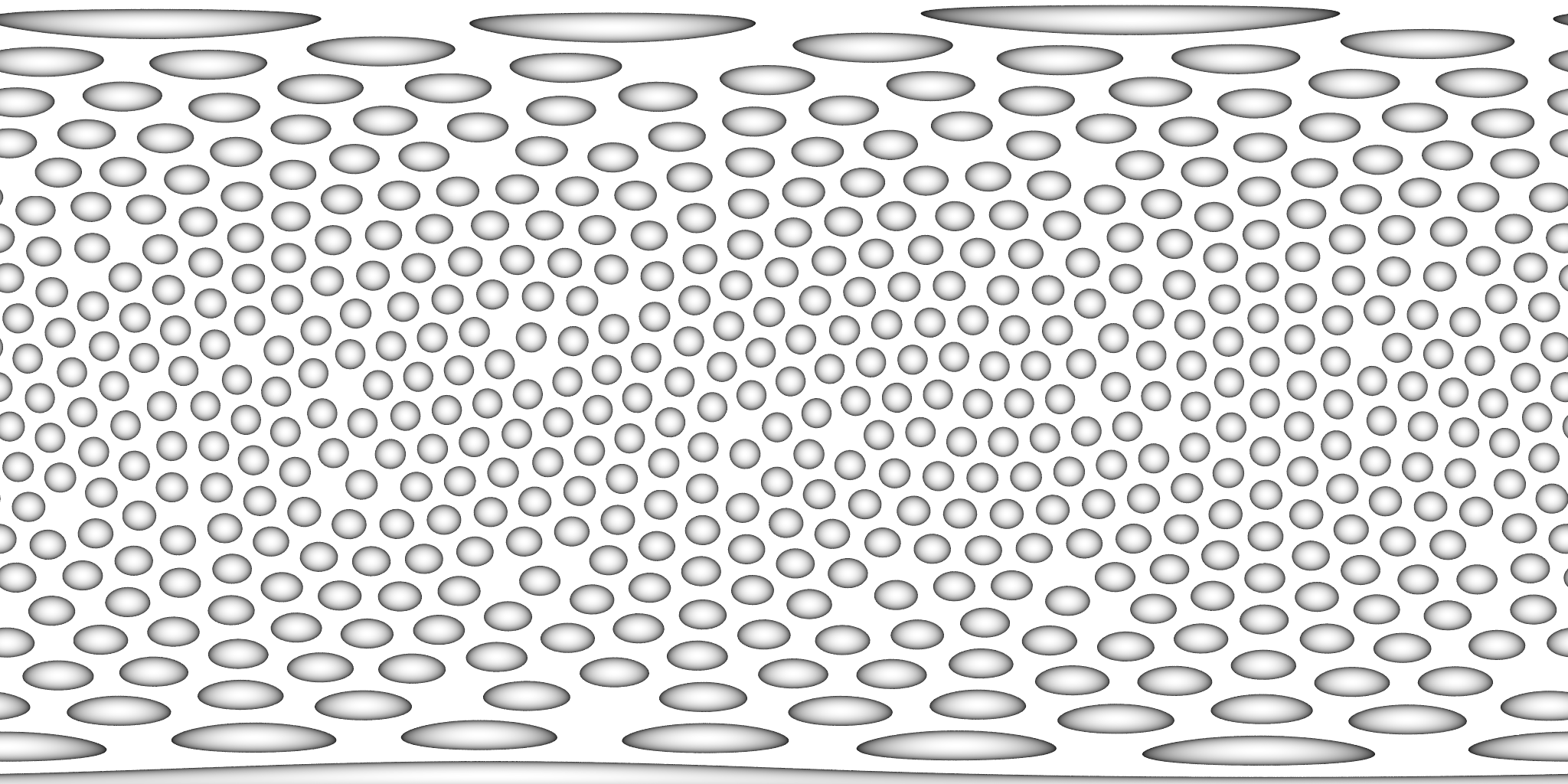

Golf ball

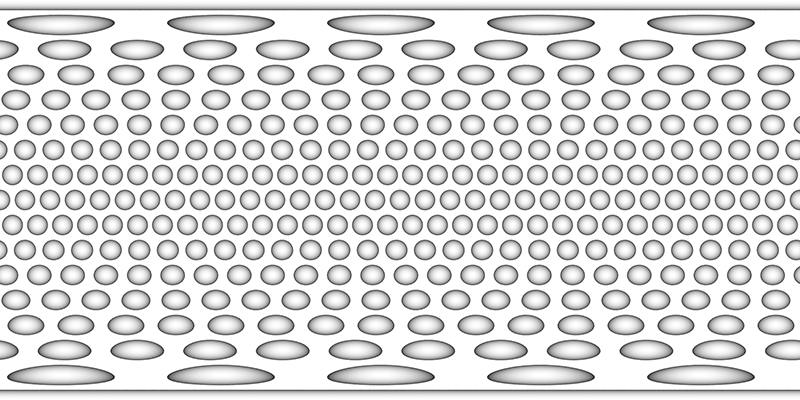

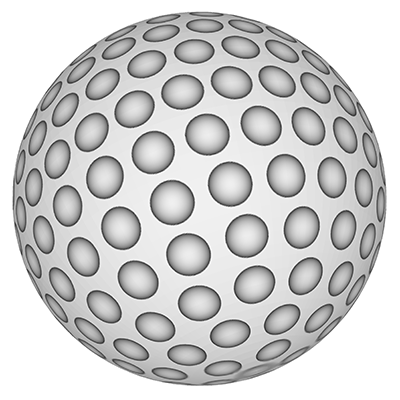

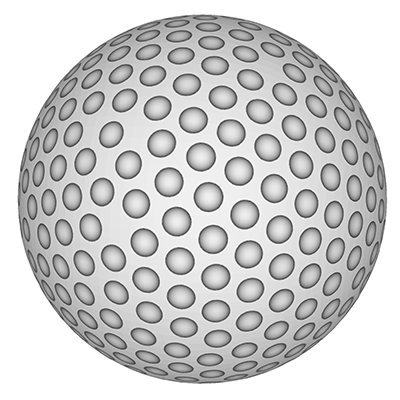

The roughness of a golf ball, introduced in the late 1800's, made for a more consistent flight path than smooth surfaces. The dimples, introduced in the early 1900's, create a turbulent layer around the ball creating a low pressure leading edge and thus less drag allowing the ball to travel further. There were disputes in the 1980's around symmetric vs non-symmetric dimple patterns, the later provided for a sort of self correction of ball spin during flight. While there are asymmetric balls they are only allowed in non-tournament games. Most balls have between 300 and 500 dimples. The example below has 308 dimples. It is formed by progressively sampling lines of latitude in equal steps with ever increasing steps in longitude and phase offsets per latitude.

But this doesn't give the local hexagonal neighbourhood around each dimple, see the example on the right above. A more regular dimple pattern can be achieved by starting with an icosahedron and tiling each triangular face with a regular triangular array of dimples.

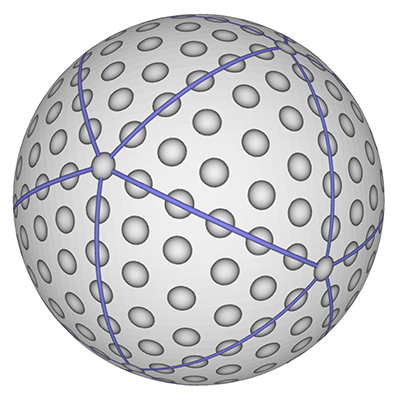

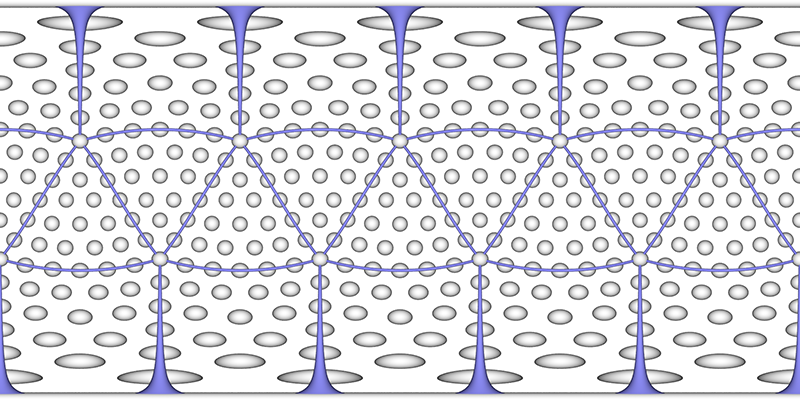

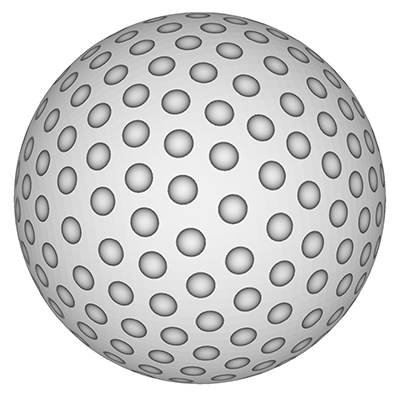

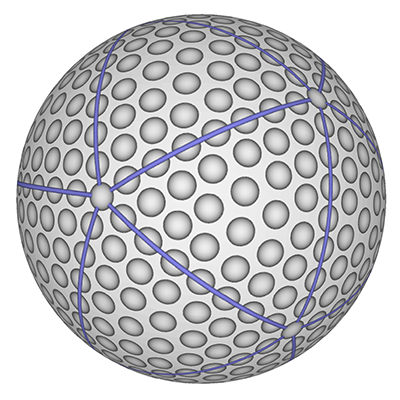

362 dimples showing icosahedral faces

362 dimples

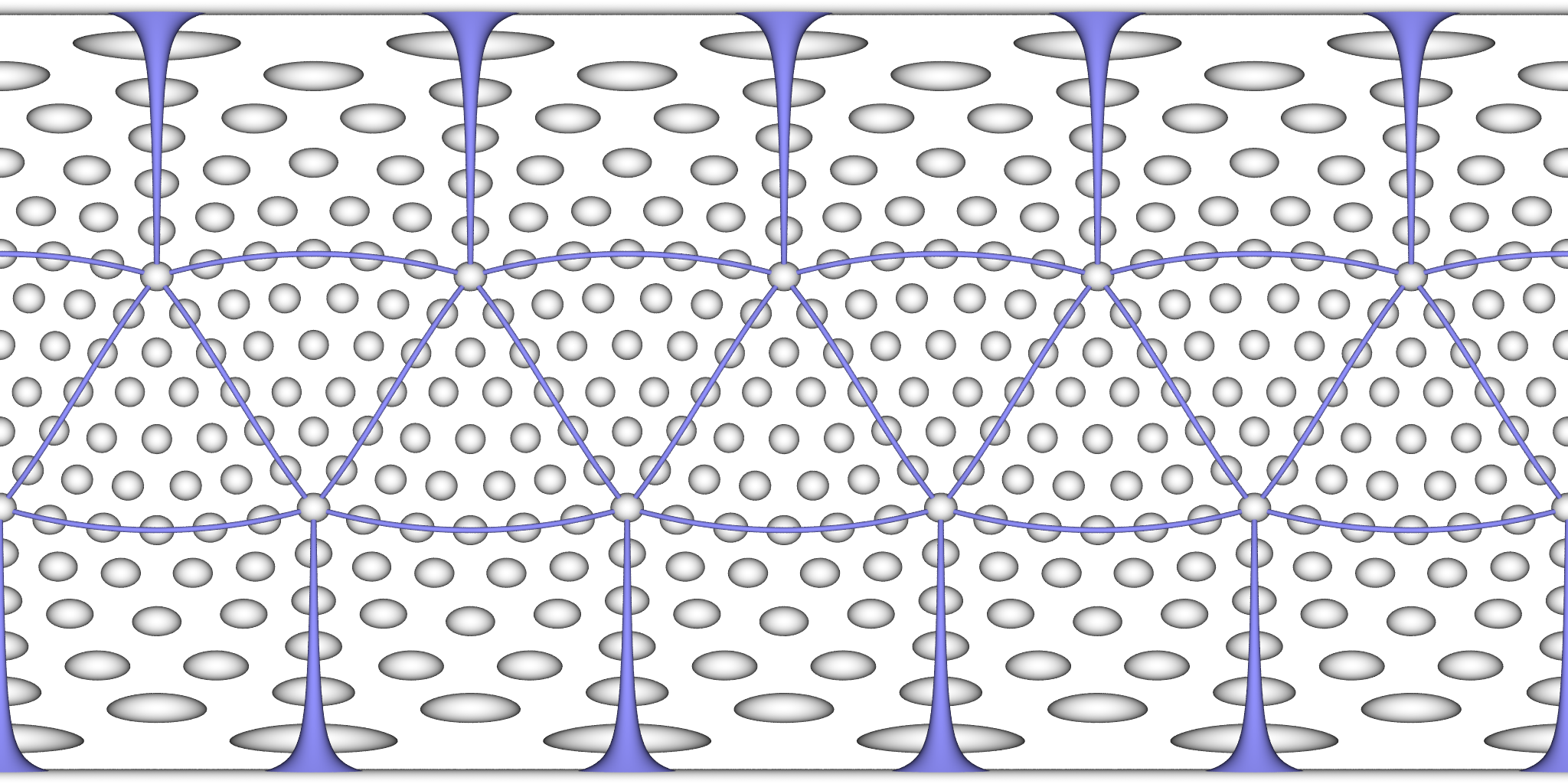

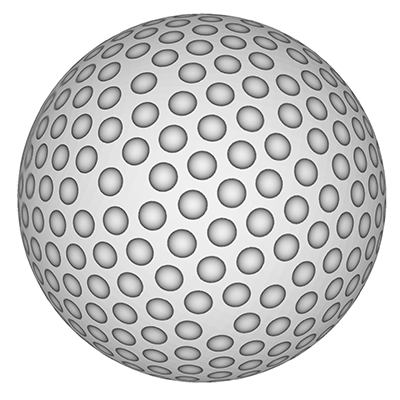

492 dimples showing icosahedral faces

492 dimples

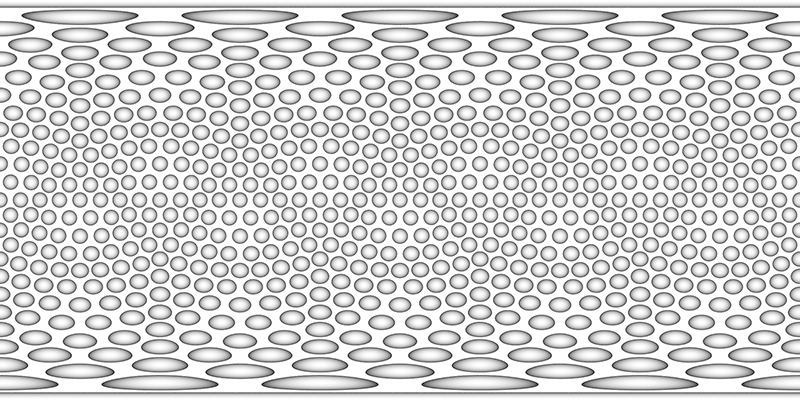

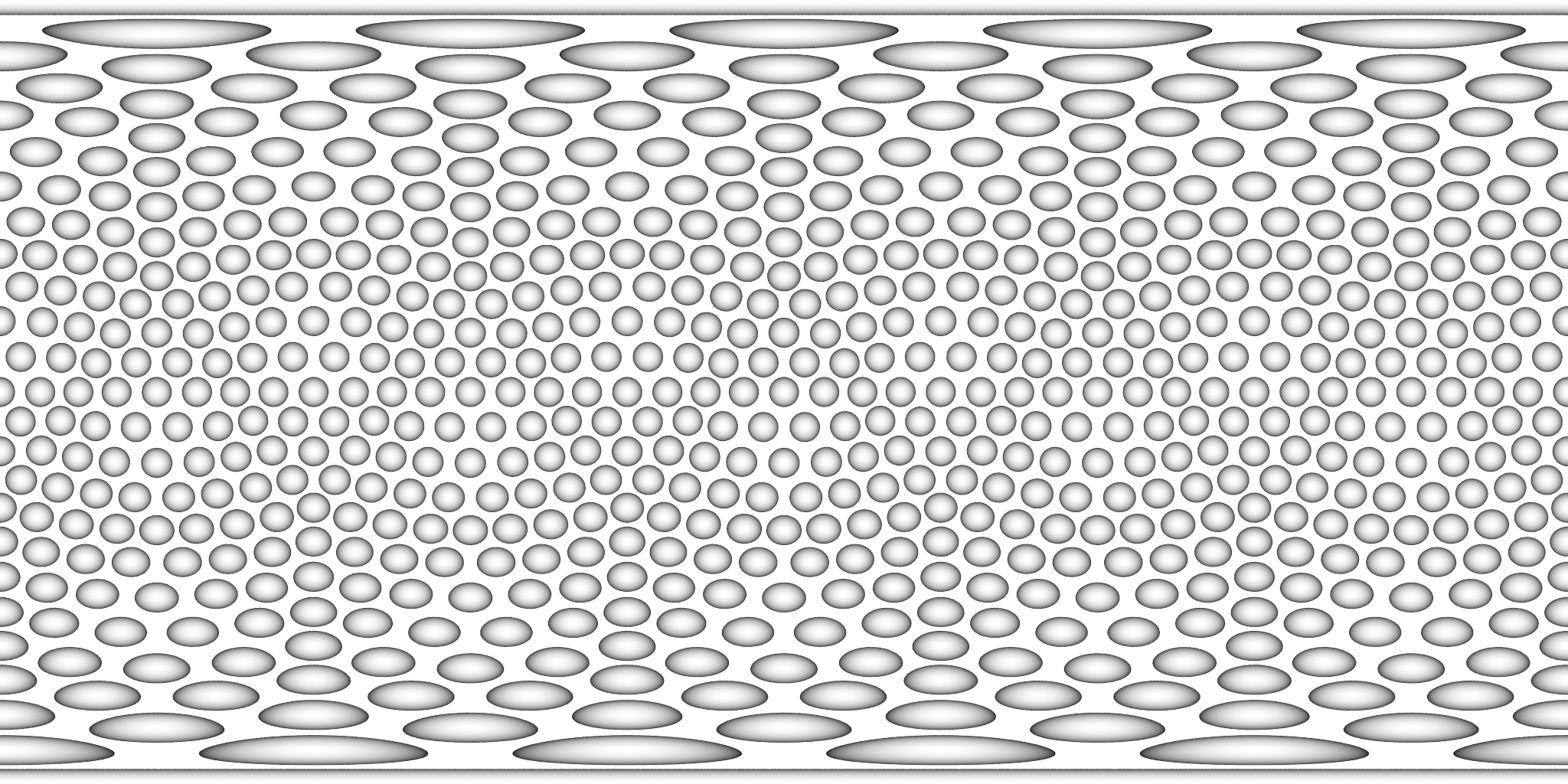

The next approach is to perform a minimisation process to distribute points on a sphere. This may be an arbitrary simulation or a spring system as described here. The following example has 500 dimples and unlike the previous methods where only certain densities can be supported, this approach can be applied to any number of dimples.

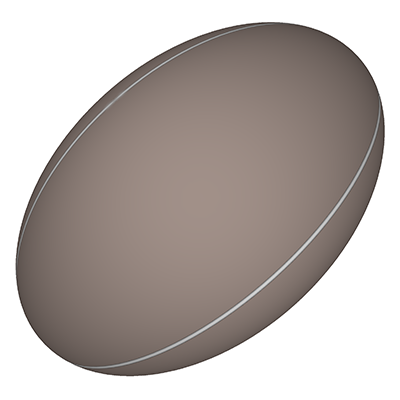

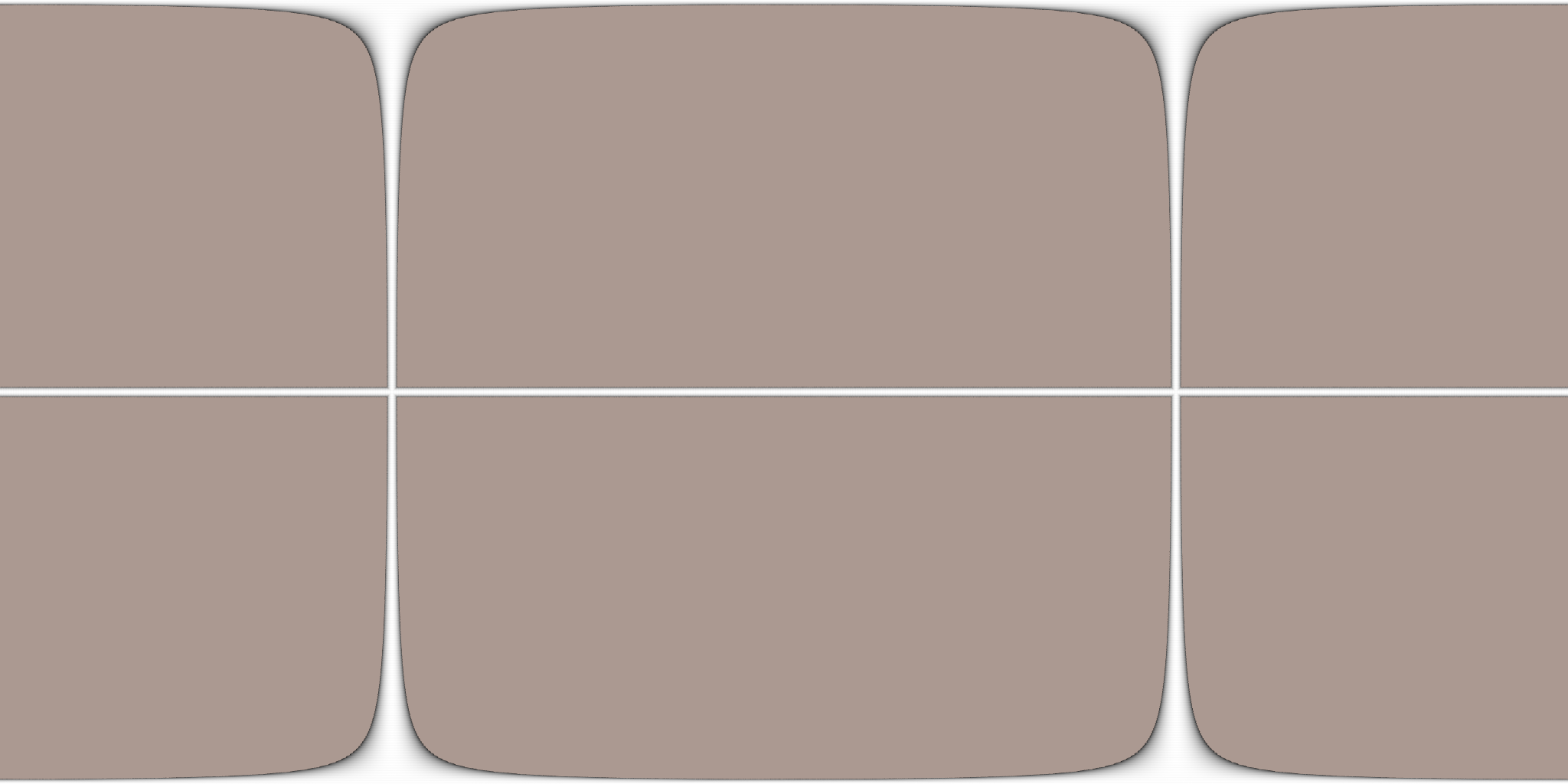

Rugby ball (Australia rules football)

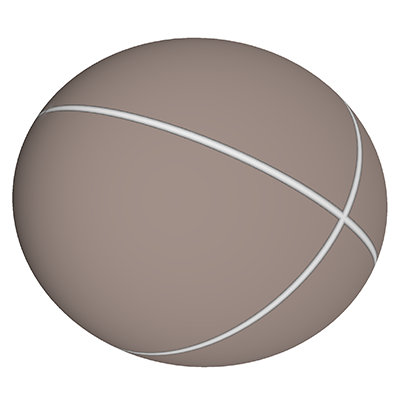

While the early rugby balls were shaped more like the American footballs, the current rugby ball is a prolate spheroid with a major to minor axis ratio of about 1.5. Besides a sphere stretched along one axis there are many other ways of describing this shape, one example being a super-ellipsoid.

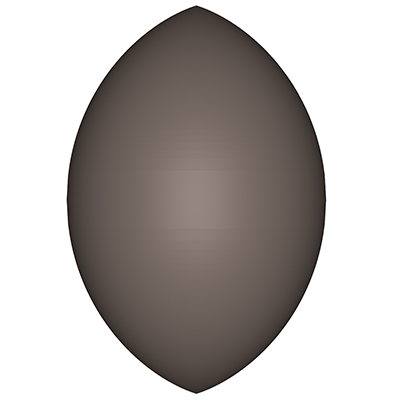

American football (Gridiron)

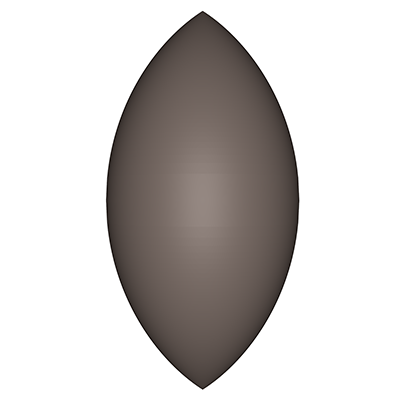

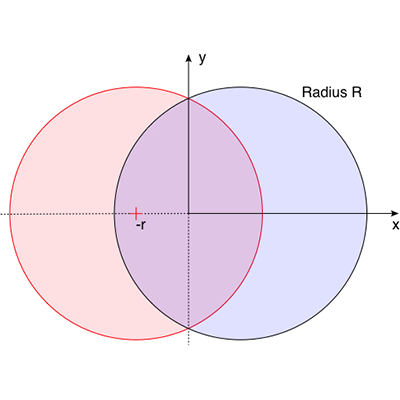

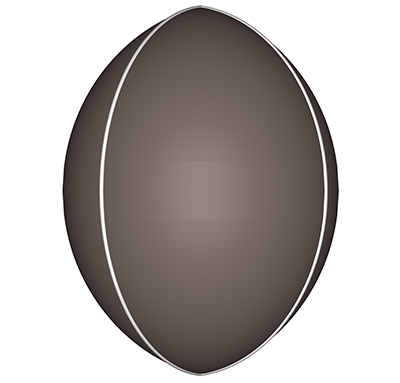

The ball shape can be represented as the intersection of two off-center circles, rotated about the mirror axis. The design is intended to reduce drag when thrown with a rotation along the long axis.
Specifically, the formulation employed here for each arc section is

where the range for x is 0 to R-r and the range for y is -sqrt(R² - r²) to sqrt(R² - r²).

r = 0.6, R = 1

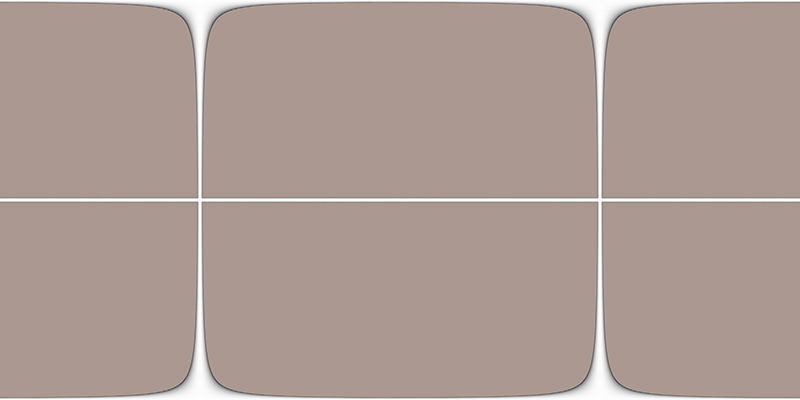

The seams are the same as for the rugby football, namely, 4 lines of longitude spaced every 90 degrees about the long axis of the ball. As with most ball seams they arise from the desire to create the ball skin from a number of equal shaped and sized pieces.

r = 0.4, R = 1

r = 0.3, R = 1

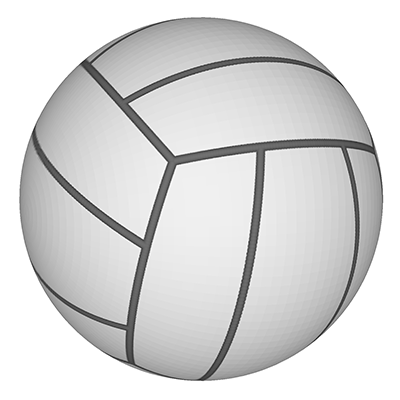

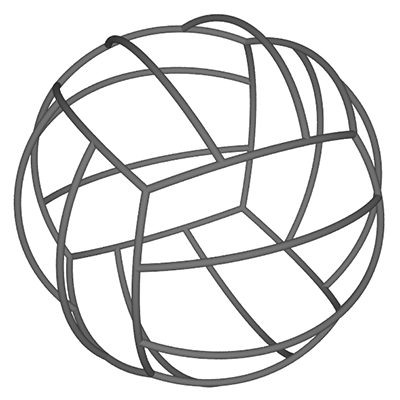

Volley ball (Gaelic football, Water polo, Netball)

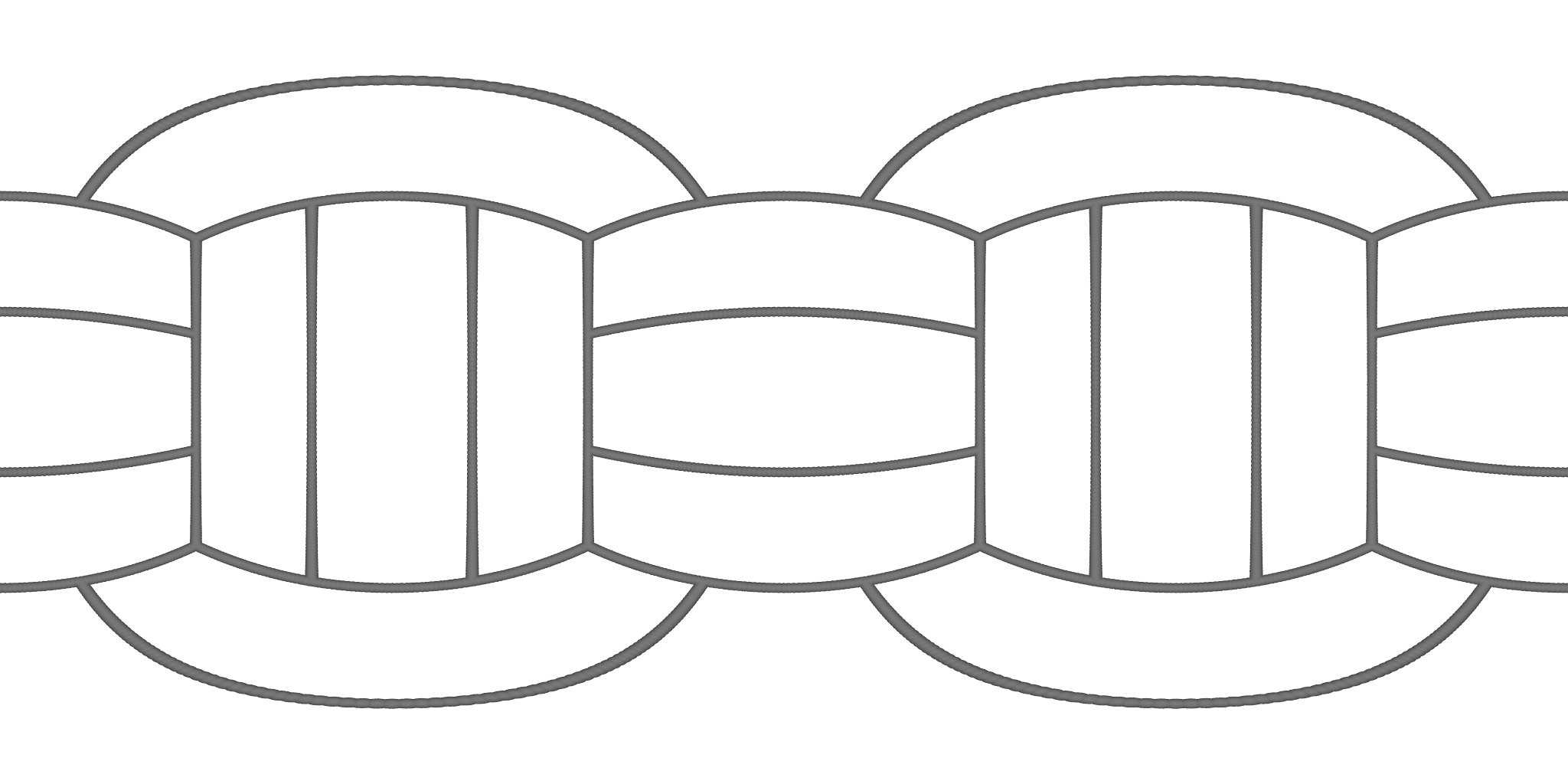

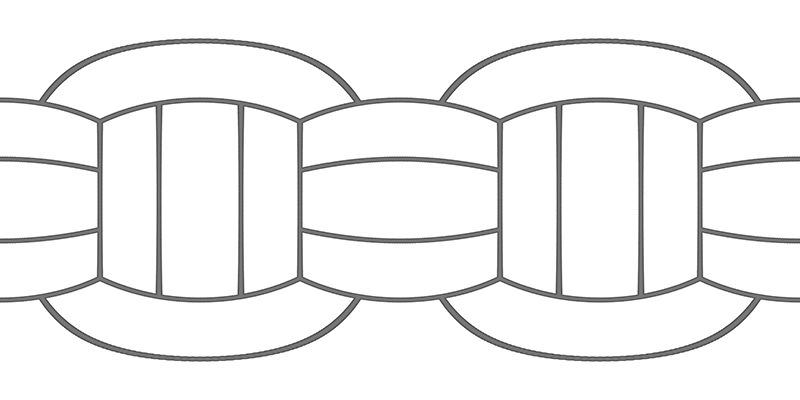

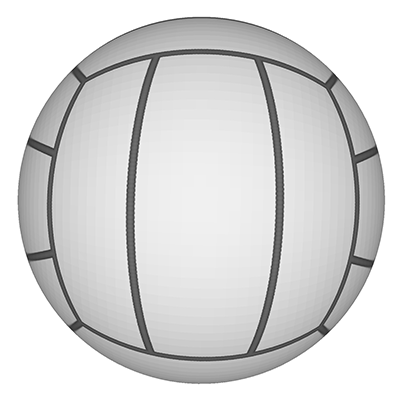

There are a few variation of the design of volley balls, the simplest to describe geometrically is presented below. One takes a cube and splits each face into three sections. The axis of the sections is the same for opposing faces of the cube, but along a different axis for each pair of opposing faces. These lines are then projected onto the surface of a sphere.

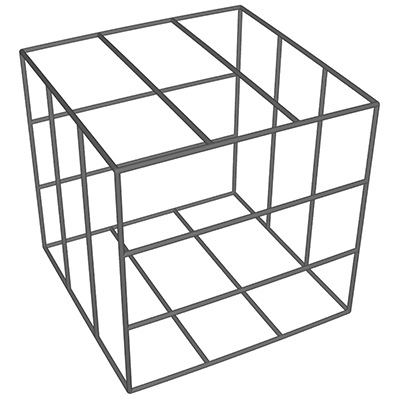

Cube construction

Inflated to unit sphere

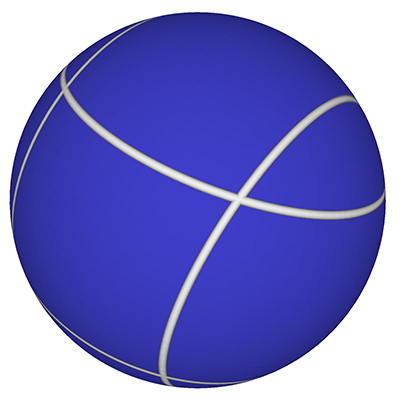

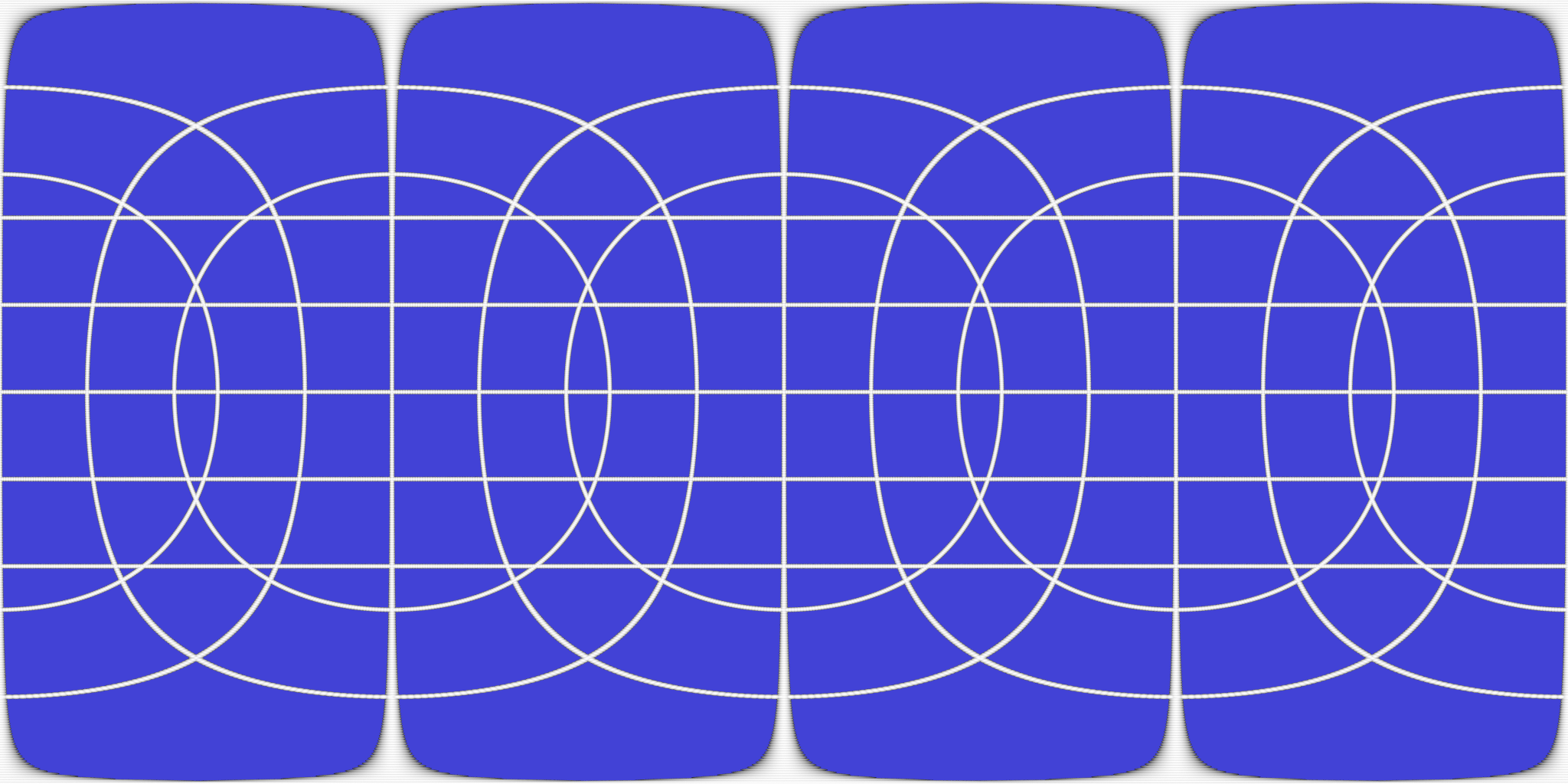

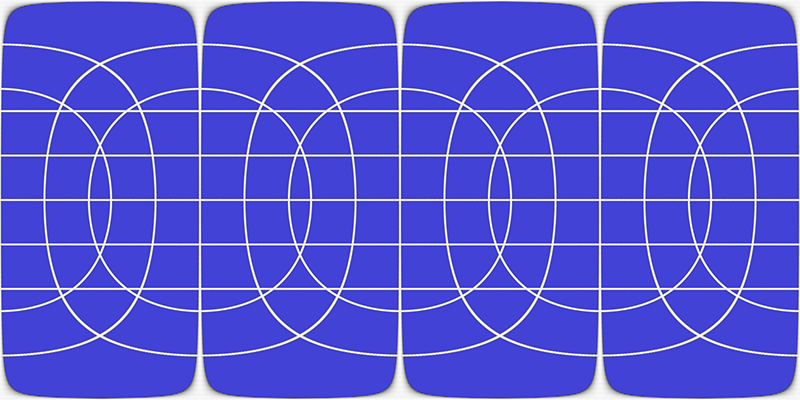

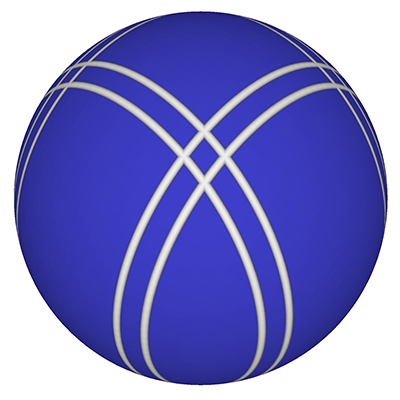

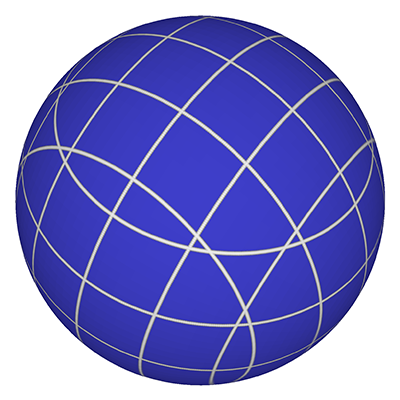

Boules (Bocce)

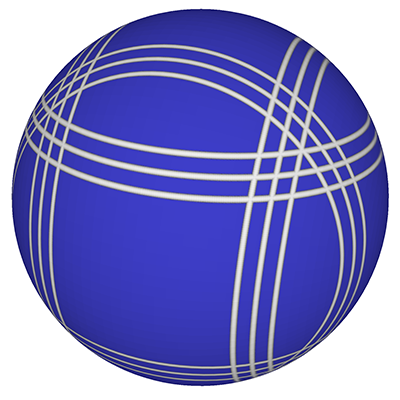

There are a wide range of designs but they are generally symmetric slices by a number of planes through a sphere, repeated on two or three axes.

Others

There are a number of other sports balls not included here, largely because they are not interesting.

Squash balls are simple spheres with only one or two small dots to indicate hardness (bounce).

Similarly, ten pin bowling balls only have three finger grip holes.

Pool, snooker and billiards balls may include dots (billiards) or numbers and simple bands of colour.

Ping pong balls have no markings at all. Same for croquet balls, racket-ball, and polo (horseback).

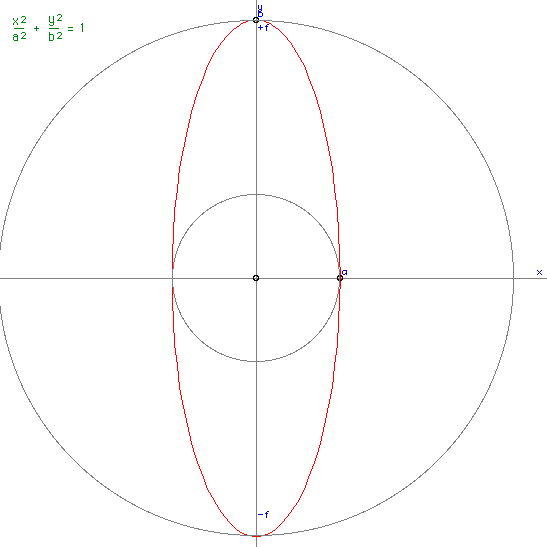

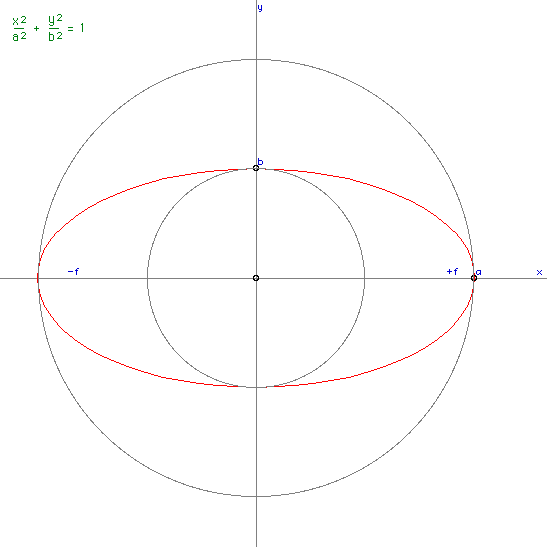

The points on an ellipsoid (3 dimensions) satisfy the equation

Or in polar coordinates

The special case where a = b is called a prolate-spheroid, it is a sphere with a stretch (scale factor > 1, not compression, c > a) along one axis. The equation can be written as

Where a is the equatorial radius and c the polar radius.

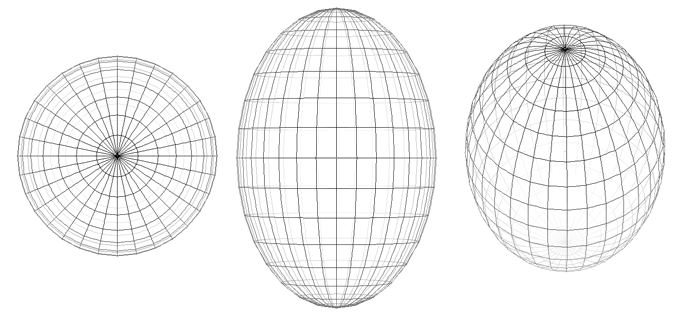

The example below illustrates a prolatespheroid where c = 1.5 a

The degree of stretching is often called the eccentricity in 2 dimensions or the ellipticity in 3 dimensions, it is defined by

e is 0 for a sphere (a = c), and e approaches 1 as the prolate-spheroid become increasingly elongated.

The surface area is

The volume is

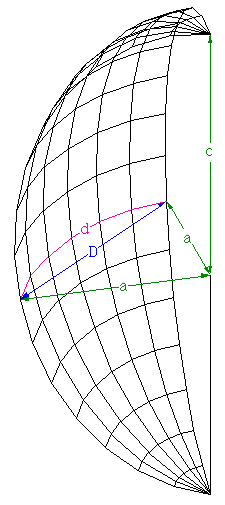

Cymbelloid The Cymbelloid is a slice of a prolate-spheroid. Given the dimensions of the Cymbelloid on the right, the volume is given by 4 c a2 arcsin(D/2a) / 3 or 4 c a d / 6 The surface area is d [ a + (c/e) arcsin(e) ] or 2 a arcsin(D/2a) [ a + (c/e) arcsin(e) ]



This is a description of a proposed primitive for computer aided design. In 2 dimensions it includes the circle and ellipse, in 3 dimensions it has the sphere and ellipsoid as special cases. By varying its parameters it can form a continuum of other shapes. 2 dimensions - super-ellipse

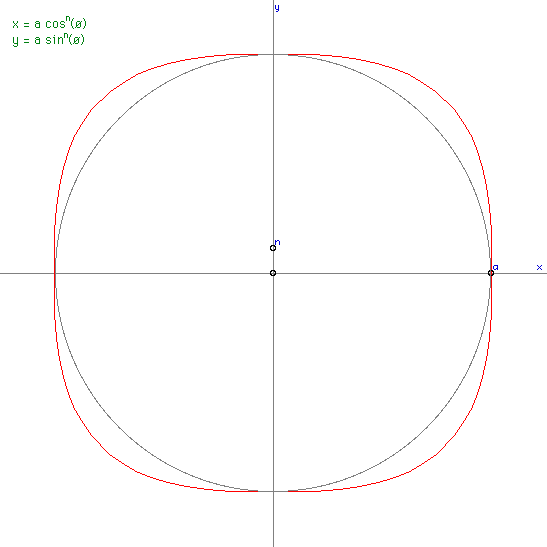

In 2 dimensions the super-ellipse centered at the origin is defined in parametric form as

The curve intersects the x axis at rx and -rx, it intersects the y axis at ry and -ry, ie: the super-ellipse is enclosed in a rectangle of width 2rx and height 2ry.

This is the form most easily employed to draw a super-ellipse, the angle ø is varied from 0 to 2pi in suitably small steps, a line is drawn to each subsequent value of ø.

Forming the curve using the parametric form above and uniformly varying the angle automatically samples the curve with curvature dependent sampling. That is, there are more samples where the curve is changing rapidly, a desirable characteristic.
We can also write

then
if f(x,y) equals 1, (x,y) lies on the super-ellipse boundary
if f(x,y) is less than 1, (x,y) lies on the interior of the super-ellipse
if f(x,y) is greater than 1, (x,y) lies on the outside of the super-ellipse]

The above can be used to form the super-ellipse (although it must be done in quadrants). Solving for y gives

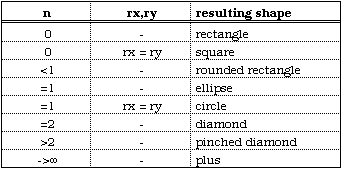

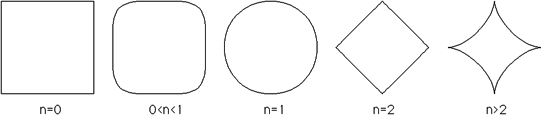

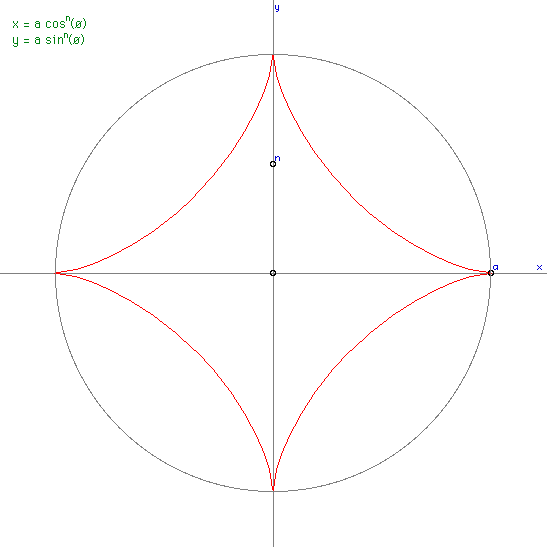

Varying n controls the form of the super-ellipse, some special cases are outlined below

Pictorially

Note that the super-ellipse always passes through the same points at ø = 0, pi/2, pi, 3pi/2 and so it is possible to have different values of n in each quadrant.

3 dimensions - super-ellipsoid

The super-ellipse is name given to a family of shapes formed from the spherical product of two superquadratric curves. These shapes can be used to model a wide range of shapes including spheres, cylinders, and parallelepipeds as well as shapes in between.

In 3 dimensions the super-ellipse centered at the origin is defined as follows

As for the two dimensional case rx, ry, and rz are the scale factors for each axis (axis intercept). The total shape lies at the centre of a box of dimension 2rx, 2ry, 2rz. The power n1 acts as the "squareness" parameter in the z axis and n2 the squareness in the x-y plane.

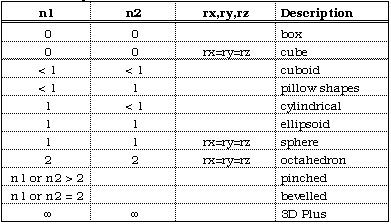

Some special cases of parameter n1 and n2

The super-ellipse can also be written as

where the same relationships as for the 2D case (super-ellipse) can be made, namely
if f(x,y,z) equals 1, (x,y,z) lies on the super-ellipsoid surface
if (f(x,y,z) is less than 1, (x,y,z) lies on the interior the super-ellipsoid
if (f(x,y,z) is greater than 1, (x,y,z) lies on the outside of the super-ellipsoid

Closed expressions can be derived for the normal at any point on the super-ellipsoid making many rendering calculations with lighting models easier. The normal is given by

Interestingly, if n1 and n2 are less than 2 then the equation of the normal of the super-ellipsoid is another super-ellipsoid (its dual) with n1 -> 2 - n1, and n2 -> 2 - n2. For example, the normals of a super-ellipsoid with n1=0.5 and n2=0.2 is another super-ellipsoid (suitably scaled) with n1=1.5 and n2=1.8.

Bibliography

Barr, A.H., Superquadrics and Angle Preserving Transformations. IEEE Computer Graphics and Applications, January 1981.

Faux, I.D., and Pratt, M.J., Computational Geometry for Design and Manufacture. Ellis Horwood Ltd., Wiley & Sons, 1979.

Wallace, A., Differential Topology, Benjamin/Cummings Co., Reading , Mass, USA, 1968.

The super-ellipsoid is a versatile primitive that is controlled by two parameters. As special cases it can represent a sphere, square box, and closed cylindrical can. The equations are given below, the powers n1 and n2 are the two parameters.

It should be noted that there are some numerical issues with both very small or very large values of these parameters. Typically, for safety, they should be in the range of 0.1 to about 5.

		The two parameters = 1
		First parameter = 1 Second parameter large
		First parameter = small Second parameter large
		First parameter = small Second parameter = 1
		First parameter = large Second parameter = 1
		First parameter = large Second parameter large

The code below creates a unit superellipsoid at the origin, it correctly assigns normals and texture coordinates.

/*
   Create a superellipse
   "method" is 0 for quads, 1 for triangles
      (quads look nicer in wireframe mode)/
   This is a "unit" ellipsoid (-1 to 1) at the origin,
      glTranslate() and glScale() as required.
*/
void CreateSuperEllipse(double power1,double power2,int n,int method)
{
   int i,j;
   double theta1,theta2,theta3;
   XYZ p,p1,p2,en;
   double delta;

   /* Shall we just draw a point? */
   if (n < 4) {
      glBegin(GL_POINTS);
      glVertex3f(0.0,0.0,0.0);
      glEnd();
      return;
   }

   /* Shall we just draw a plus */
   if (power1 > 10 && power2 > 10) {
      glBegin(GL_LINES);
      glVertex3f(-1.0, 0.0, 0.0);
      glVertex3f( 1.0, 0.0, 0.0);
      glVertex3f( 0.0,-1.0, 0.0);
      glVertex3f( 0.0, 1.0, 0.0);
      glVertex3f( 0.0, 0.0,-1.0);
      glVertex3f( 0.0, 0.0, 1.0);
      glEnd();
      return;
   }

   delta = 0.01 * TWOPI / n;
   for (j=0;j<n/2;j++) {
      theta1 = j * TWOPI / (double)n - PID2;
      theta2 = (j + 1) * TWOPI / (double)n - PID2;

      if (method == 0)
         glBegin(GL_QUAD_STRIP);
      else
         glBegin(GL_TRIANGLE_STRIP);
      for (i=0;i<=n;i++) {
         if (i == 0 || i == n)
            theta3 = 0;
         else
            theta3 = i * TWOPI / n;

         EvalSuperEllipse(theta2,theta3,power1,power2,&p);
         EvalSuperEllipse(theta2+delta,theta3,power1,power2,&p1);
         EvalSuperEllipse(theta2,theta3+delta,power1,power2,&p2);
         en = CalcNormal(p1,p,p2);
         glNormal3f(en.x,en.y,en.z);
         glTexCoord2f(i/(double)n,2*(j+1)/(double)n);
         glVertex3f(p.x,p.y,p.z);

         EvalSuperEllipse(theta1,theta3,power1,power2,&p);
         EvalSuperEllipse(theta1+delta,theta3,power1,power2,&p1);
         EvalSuperEllipse(theta1,theta3+delta,power1,power2,&p2);
         en = CalcNormal(p1,p,p2);
         glNormal3f(en.x,en.y,en.z);
         glTexCoord2f(i/(double)n,2*j/(double)n);
         glVertex3f(p.x,p.y,p.z);
      }
      glEnd();
   }
}

void EvalSuperEllipse(double t1,double t2,double p1,double p2,XYZ *p)
{
   double tmp;
   double ct1,ct2,st1,st2;

   ct1 = cos(t1);
   ct2 = cos(t2);
   st1 = sin(t1);
   st2 = sin(t2);

   tmp  = SIGN(ct1) * pow(fabs(ct1),p1);
   p->x = tmp * SIGN(ct2) * pow(fabs(ct2),p2);
   p->y = SIGN(st1) * pow(fabs(st1),p1);
   p->z = tmp * SIGN(st2) * pow(fabs(st2),p2);
}

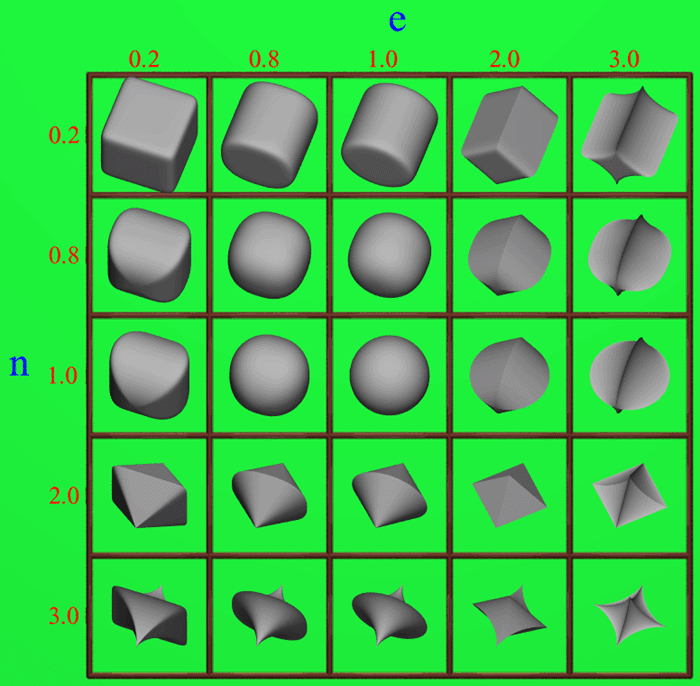

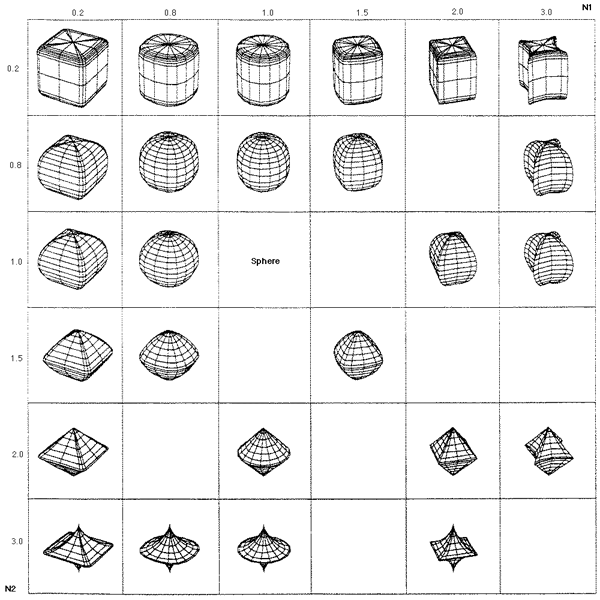

The following grid illustrates the range of super-ellipsoids as variable "e" and "n" are each varied between 0.2 and 3. The POVRAY source that generated the image below is given here: super.pov.

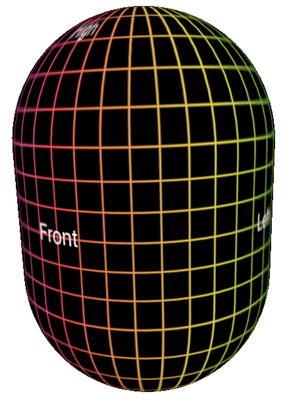

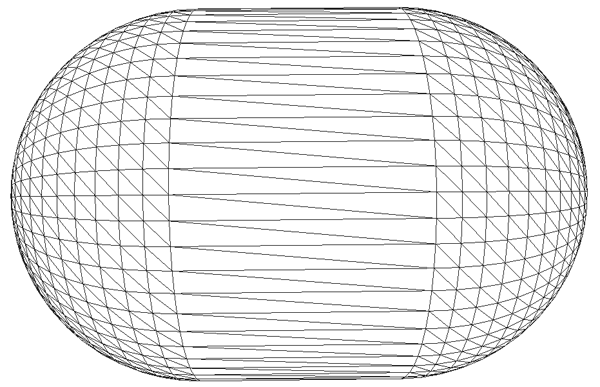

The following will briefly describe a way of creating an capsule shape, example code is supplied here: capsule.c (Tab stops to 3 spaces for correct indenting). which created the shape and saves the result as an obj file with normals and texture coordinates. The code should be easy to modify to create the mesh geometry in other formats or for APIs such as OpenGL. The output from the code plus a sample texture map are given below.

• The obj file: capsule.obj.zip

• The mtl (material file): capsule.mtl

• And the jpg texture: capsule0.jpg

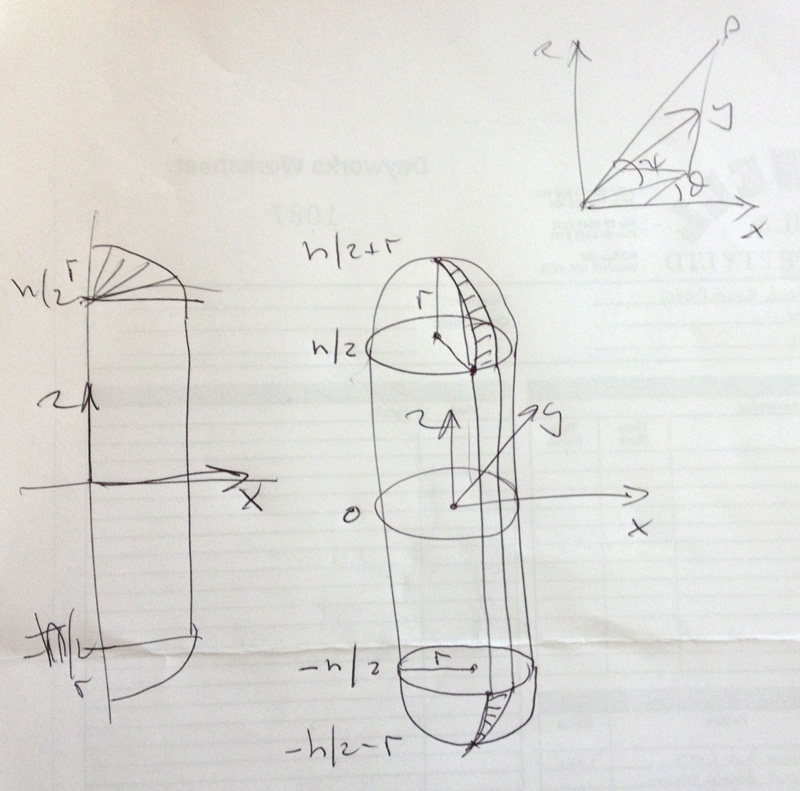

It is fairly obvious that the desired shape is just two halves of a sphere offset along the intended axis of the capsule. Also, that it is not necessary to explicitly add a central cylinder, rather just join up the equator of each half sphere.

The normals are straightforward to calculate, they are just the vectors to the vertices of the normalised sphere before offsetting along the capsule axis. There are many options for the texture coordinates, the one chosen here is the projection of a sphere onto the capsule. These are computed by calculating the longitude and latitude of each vertex of the capsule and mapping those to (u,v) in the usual way. The result given the texture map (spherical projection) given above is shown below.

Coordinate system conventions.

Introduction

Around 1680 Giovanni Cassini investigated a family of curves which he believed defined the path the Earth takes around the sun. The curves were defined by all the points where the product of the distances from the point to two fixed points (call the separation 2a) were some constant (call this b²). Note an ellipse is defined as the points where the sum of the distances to two fixed points equal some constant.

The general appearance of the curve is dictated by the relative values of a and b. If a < b the curve forms a single loop, this loop becomes increasingly pinched as a approaches b. When a > b the curve is made up of two loops, at a = b it is the same as the lemnescate of Bernoulli that was documented about 14 years later.

There are a number of ways to describe the Cassini oval, some of these are given below.

Cartesian description from the definition

Polar coordinates

It is possible to solve for r² using the standard solution for a quadratic. When using this formulation to create the curve in 2D or surfaces of revolution to form solids in 3D be very careful about the range of theta and what the positive and negative solutions mean.

The parametric formulation used to create the curves and solids here is based up the following.

Note:

• Note b cannot be 0

• When a < b the parameter t ranges from 0 to 2pi

• When a = b the curve reduces to r² = a² cos(2theta)

• When a > b each loop is defined in two parts, one using the positive version of C above, and the other using the negative version. The parameter t ranges from -0.5 arcsin(b²/a²) to 0.5 arcsin(b²/a²). A similar arrangement occurs for the polar formulation described earlier.

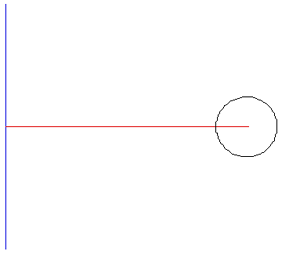

An unexpected way to create a Cassini curve is to slice a torus with a plane parallel to the axis of the torus. As the plane is moved outwards from the centre of the torus there is a transition of Cassini curves from a > b (two loops) to a = b, and finally a < b (single loop).

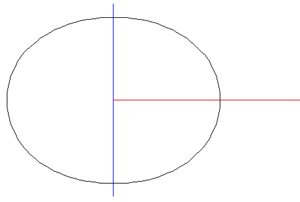

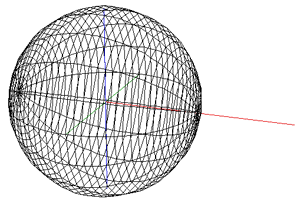

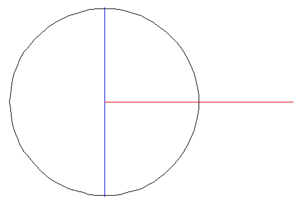

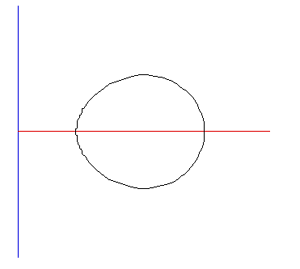

Sphere, a = 0.1, b = 1
The curve is a circle at a = 0.

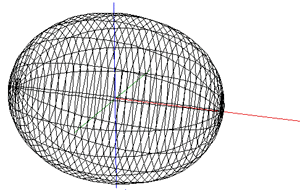

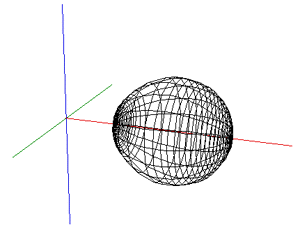

Melon, a = 0.5, b = 1

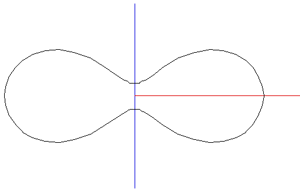

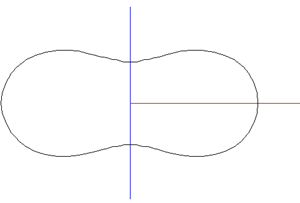

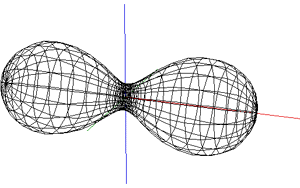

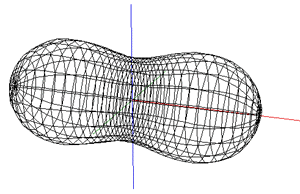

Peanut, a = 0.9, b = 1

a = 0.99, b = 1
At a = b the curve is the same as the lemnescate of Bernoulli.

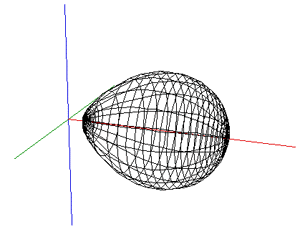

Egg, a = 1.01, b = 1

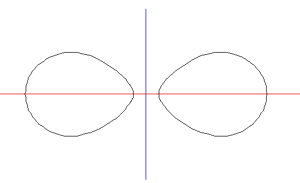

For a > b the curve splits into two half's mirrored by the y axis.
Only one half of 3D image is shown.

a = 1.1, b = 1
Only one half shown
The separation between the two foci is 2a.

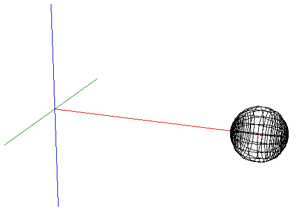

Sphere, a = 2, b = 1
Only one half shown

Source code

The C source code that created the images on this page can be found here: cassini.c. While it creates output geometry in a particular format, the primitives are just lines and 3D polygons so it shouldn't be difficult to modify the code to create geometry in a format for your favourite package. The 3D solids are formed as surfaces of revolution about the x axis.

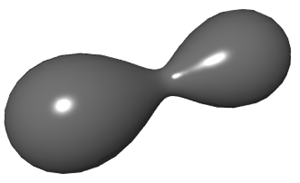

For PovRay users here are some examples of Cassini solids and code to create smooth triangle models: povcassini.c. The renderings here used the init file: cassini.ini and the PovRay scene file: cassini.pov. The output of povcassini.c is piped to "cassini.inc".

a = 1.99, b = 1

a = 1.02, b = 1

The so called "kissing number" is the maximum number of times a sphere in N dimensional space can touch a central sphere (all spheres are the same size and cannot intersect another sphere).

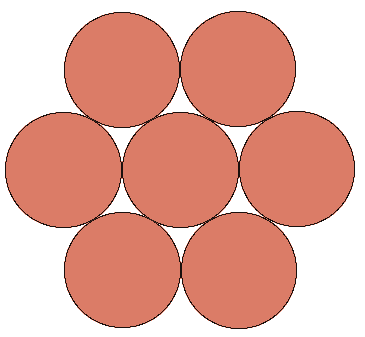

Consider the situation in 2 dimensions, a 2D sphere is just a circle and it is easy to verify that the kissing number is 6. That is, at most 6 circles of equal radius can be packed around a central circle of the same radius....try it with 7 coins all of the same denomination!

The one dimensional case is rather boring with a kissing number of 2.

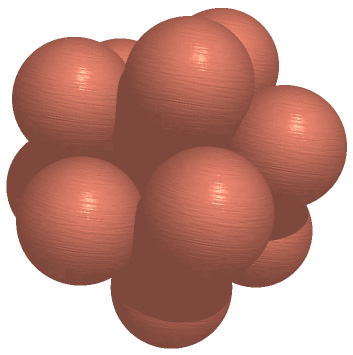

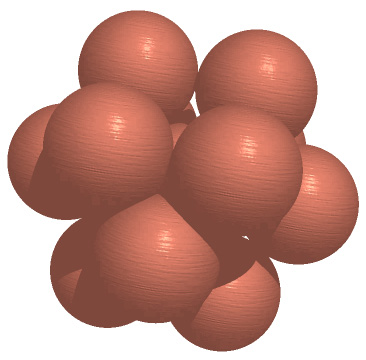

In 3 dimensions the kissing number is 12, this can be verified with ping-pong balls and bits of masking tape to hold them together. There is more than one way to pack the 12 spheres, the example below is a very symmetric solution. Another method is to arrange the spheres so their centers lie along at the vertices of an icosahedron. There does seem to be lots of "empty" space but there isn't enough for another sphere!

For a slightly more non-symmetric example see the following coordinates (center of each kissing sphere) and corresponding image.

          x            y            z
     0.25531102   0.89156330  -0.37407374
    -0.13044368  -0.77593450  -0.61717914
     0.12484695   0.78152529   0.61125401
     0.79480098  -0.47827054  -0.37356217
     0.45181161  -0.14070529   0.88094738
     0.91933526   0.36212485   0.15390992
     0.21657532  -0.92622152   0.30855928
    -0.91836971  -0.36091967  -0.16227776
    -0.62695983   0.48432758  -0.61020338
    -0.79681573   0.47329850   0.37559716
     0.22672985   0.08894927  -0.96988742
    -0.51617898  -0.41001744   0.75196074

The kissing number is known for certain for many higher dimensions and suspected for others. The table below gives the values for a range of dimensions. In the cases where the maximum hasn't been proved the number below has generally be determined by exhaustive computer searches. The exact value for 24 dimensions was found in 1979 by A.M. Odlyzko and N.J.A. Sloane.

Dimension         Kissing Number
   1                           2
   2                           6
   3                          12
   4                          24
   5             at least     40  at most     44
   6             at least     72  at most     78
   7             at least    126  at most    134
   8                         240
   9             at least    306  at most    364
  10             at least    500  at most    554
  11             at least    582  at most    870
  12             at least    840  at most   1357
  13             at least   1130  at most   2069
  14             at least   1582  at most   3183
  15             at least   2564  at most   4866
  16             at least   4320  at most   7355
  17             at least   5346  at most  11072
  18             at least   7398  at most  16572
  19             at least  10688  at most  24812
  20             at least  17400  at most  36764
  21             at least  27720  at most  54584
  22             at least  49896  at most  82340
  23             at least  93150  at most 124416
  24                      196560

For those with an interest in 4D geometry, here are the coordinates for a solution with 24 kissing hyperspheres.

          x            y            z            w
     0.75380927  -0.28878253  -0.17107694  -0.56489726
    -0.75380927   0.28878253   0.17107694   0.56489726
     0.00158908   0.23980955  -0.40088438  -0.88418356
     0.88625386   0.32965258  -0.25236023   0.20542051
     0.33787744  -0.01190412  -0.92962202  -0.14662890
     0.41593183  -0.27687841   0.75854507  -0.41826836
     0.13403367   0.85824466  -0.48216766  -0.11386579
     0.33628835  -0.25171367  -0.52873764   0.73755466
     0.54837642   0.34155670   0.67726179   0.35204941
    -0.33628835   0.25171367   0.52873764  -0.73755466
     0.20384377  -0.87014878  -0.44745436  -0.03276311
     0.13244459   0.61843511  -0.08128328   0.77031777
    -0.41593183   0.27687841  -0.75854507   0.41826836
     0.75222019  -0.52859208   0.22980744   0.31928630
    -0.13244459  -0.61843511   0.08128328  -0.77031777
    -0.88625386  -0.32965258   0.25236023  -0.20542051
    -0.54837642  -0.34155670  -0.67726179  -0.35204941
    -0.20384377   0.87014878   0.44745436   0.03276311
    -0.54996550  -0.58136625  -0.27637741   0.53213415
    -0.13403367  -0.85824466   0.48216766   0.11386579
     0.54996550   0.58136625   0.27637741  -0.53213415
    -0.00158908  -0.23980955   0.40088438   0.88418356
    -0.75222019   0.52859208  -0.22980744  -0.31928630
    -0.33787744   0.01190412   0.92962202   0.14662890

Represented in Second Life

Equirectangular projection
