Calculating reflected ray

Written by Paul Bourke
January 2000

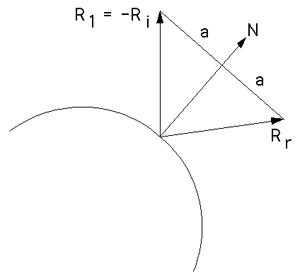

This short note gives the equation for a reflected ray as used in many computer rendering applications, eg: ray tracing. Given a ray R_i incident at a point on a surface with normal N one wishes to determine the reflected ray from that point. The geometry and nomenclature is given in the following diagram.

The result is determined by straightforward geometry as follows where "." indicates the dot product and typically N and R₁ are unit vectors.

R_r = N (R₁ . N) + a
and
R₁ + a = N (R₁ . N)
so
R_r = 2 N (R₁ . N) - R₁

If -R_i is substituted for R₁ then we have

R_r = R_i - 2 N (R_i . N)

Some obvious things to note at extreme cases. If R_i is parallel to the normal then R_r = N, that is, the reflected ray is in the opposite direction to the incident ray. If the incident ray is perpendicular to the normal then it is unaffected, R_r = R_i, this is a glancing ray.

Note also that while the above diagram is in 2D, the equations hold for any dimension.
