Personalities of the cube

By Paul Bourke
May 2004

Wiffle cube.
1 - [ a2 (x2 + y2 + z 2) ]-6 - [ b8 (x8 + y8 + z8) ]6 = 0

SGI logo.

Sculpture.
Canberra, Australia

Horned cube.
1 - 3 x8 - 3 y8 - 2*z8 + 5 x4 y2 z2 + 3 x2 y4 z2 = 0

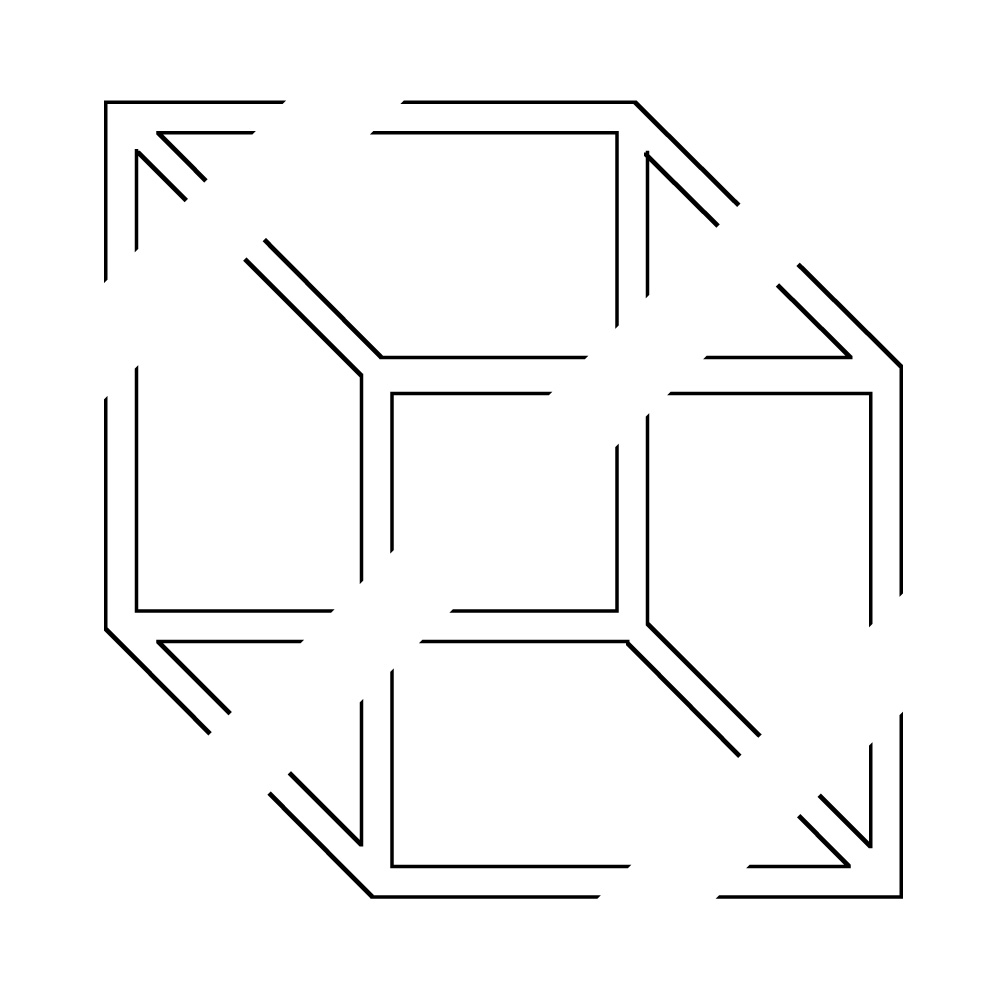

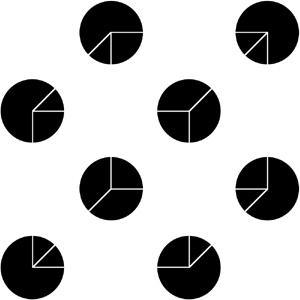

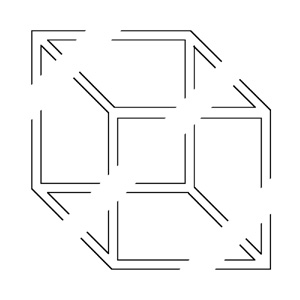

Imagined cube.

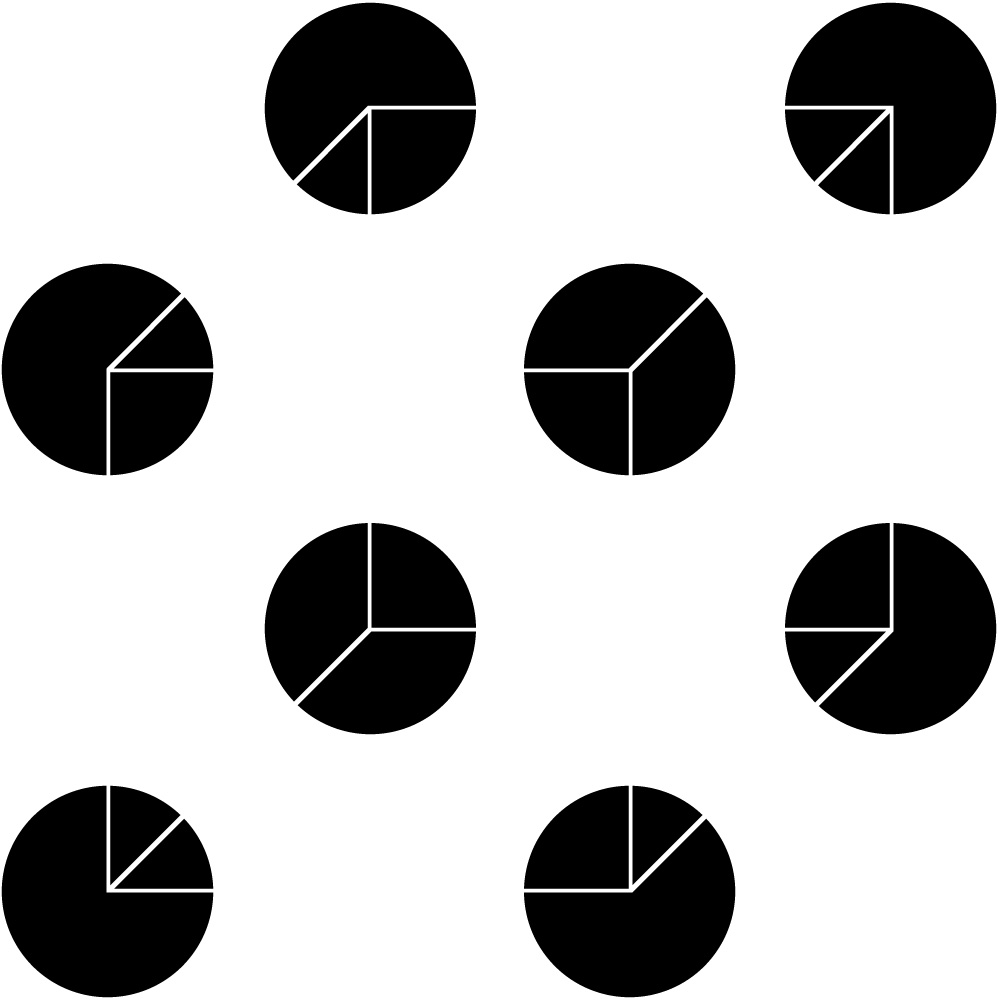

Perceptual fill-in.

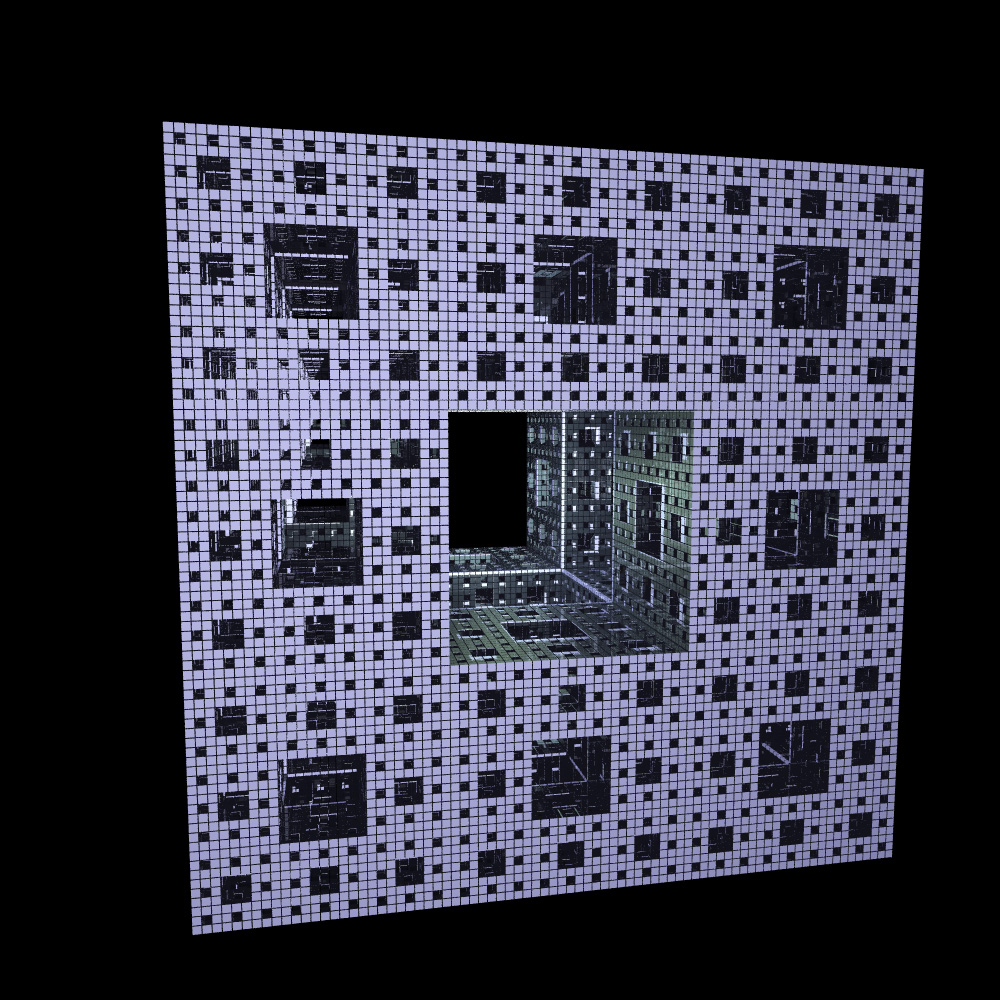

Menger Sponge.

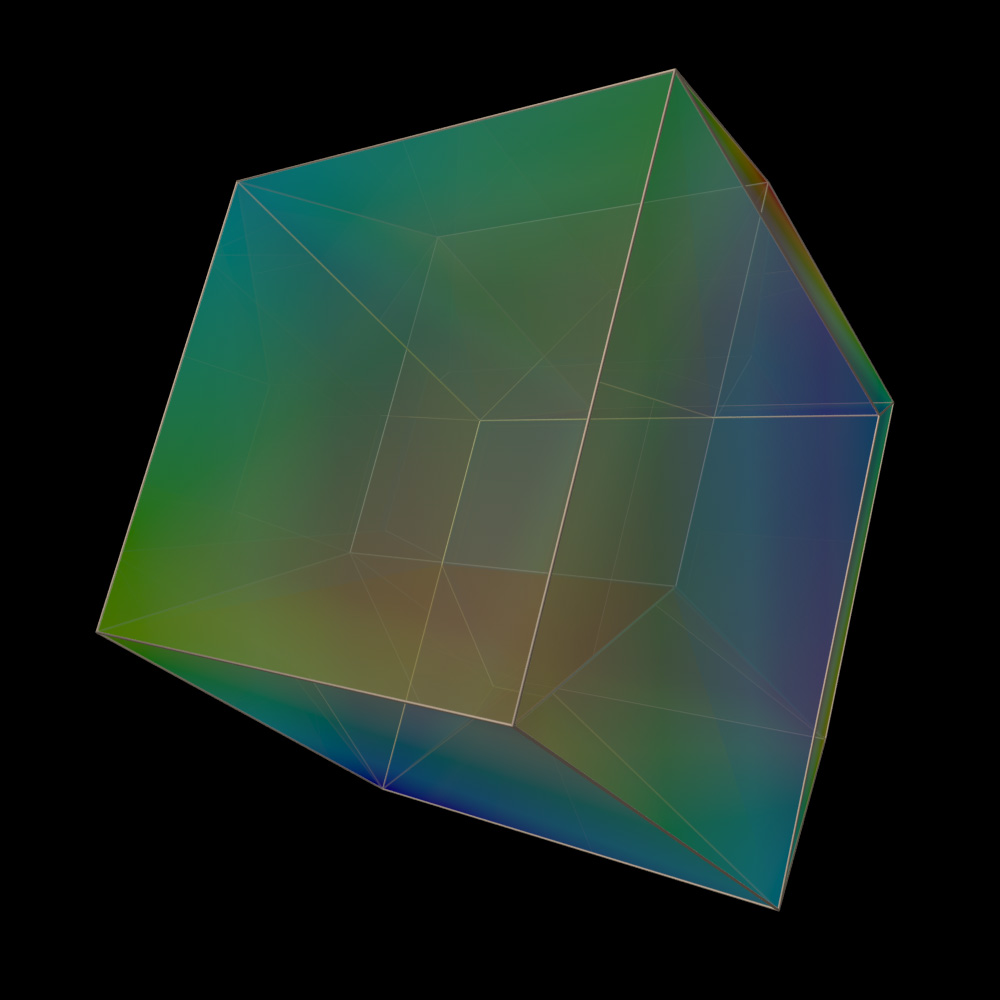

Hypercube.


Generating rounded cube geometry

Written by Paul Bourke
April 2012

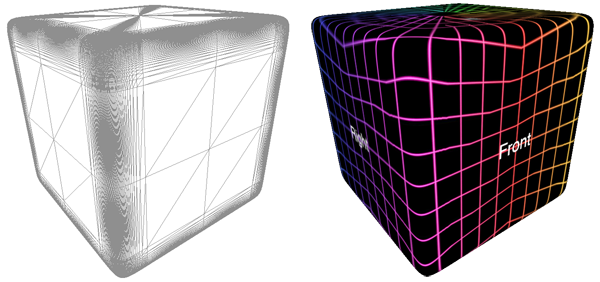

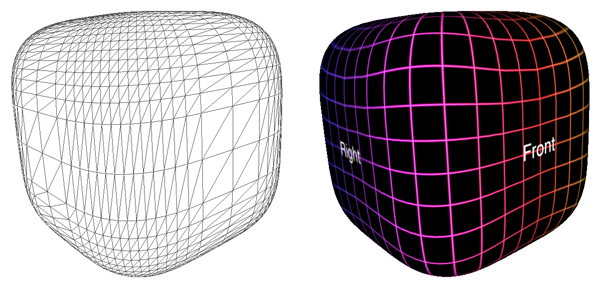

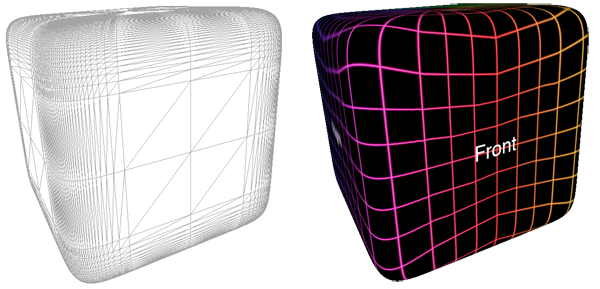

The following will briefly describe a way of creating a rounded cube shape, example code is supplied here: roundcube.c (Tab stops to 3 spaces for correct indenting). which created the shape and saves the result as an obj file with normals and texture coordinates. The code should be easy to modify to create the mesh geometry in other formats or for APIs such as OpenGL. The output from the code plus a sample texture map are given below.

The roundedness of the cube is determined by the power the expressions in the polar coordinate calculation of the sphere. A power of 1 is a perfect sphere, smaller powers generate sharper and sharper cubes. The image below is a power of 0.5.

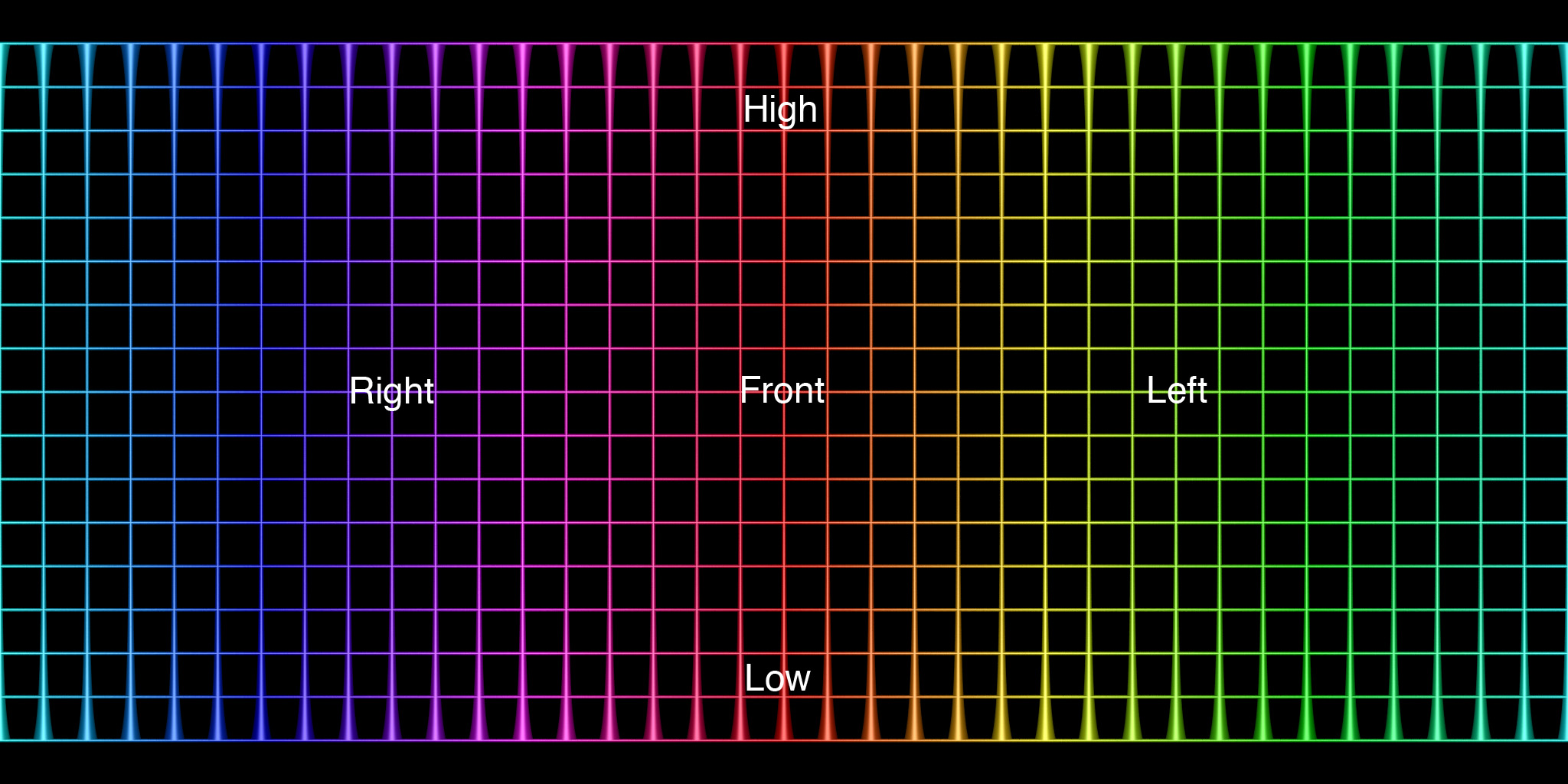

The normals are straightforward to calculate, they are just the vectors to the vertices of the roundcube centered at the origin. There are many options for the texture coordinates, the one chosen here is the projection of a sphere onto the rounded cube. These are computed by calculating the longitude and latitude of each vertex of the capsule and mapping those to (u,v) in the usual way. Examples given the texture map (spherical projection) given above is shown below for power of 0.2 and 0.1 respectively.


power = 0.2


power = 0.1

Note that this is a less general formulation of the superelipsoid.

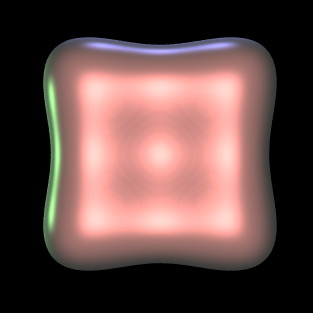

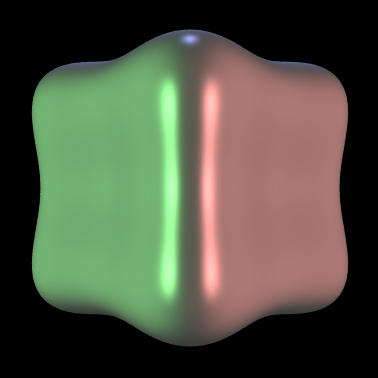

Tooth Surface

Graphics by Paul Bourke
March 2003
x4 + y4 + z4 - (x2 + y2 + z2) = 0




Wiffle cube

Paul Bourke
March 1990

Source code to create a volumetric dataset


The wiffle cube is basically a rounded (soft) cube with the center sphere removed. The field function in 3 dimensions at a point p = (x,y,z) is given by the following where a is normally 1/2.3 and b = 1/2.

f(x,y,z) = 1 - [ a2 (x2 + y2 + z 2) ]-6 - [ b8 (x8 + y8 + z8) ]6

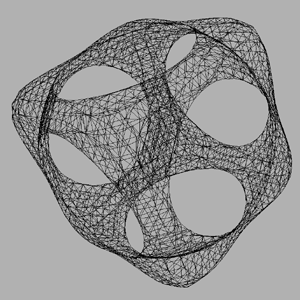

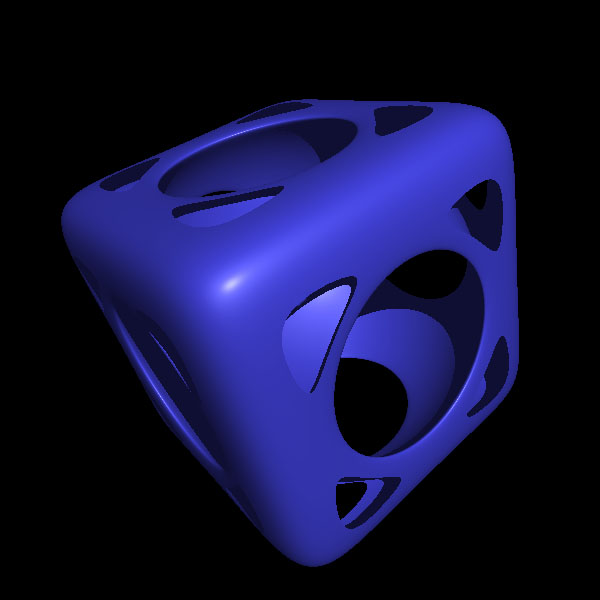

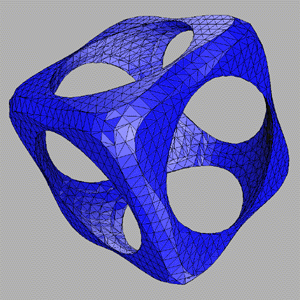

Isosurfaces of the above field function are wiffle cubes as shown below as wire frame and simple rendered form.



The following are slices along one axis (the other axes would be the same). The horizontal and vertical range is -2.5 to 2.5, the colour is a linear colour ramp from -20 (blue) to about 0.88 (red).

Further rendered views varying the isosurface level.


The PovRay model that created the above: wiffle.pov, wiffle.ini.

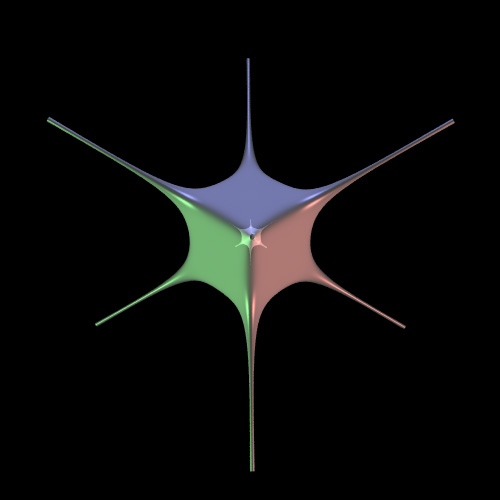

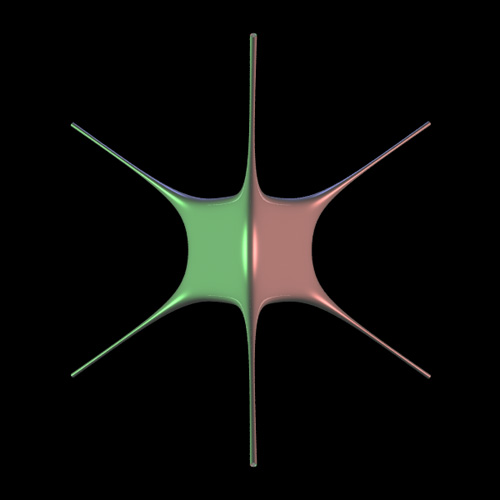

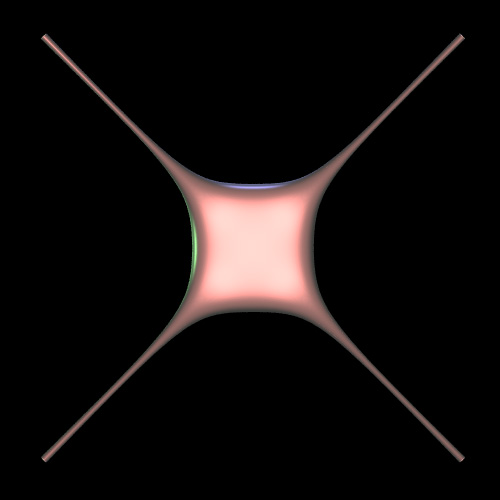

Horned Cube

Contributed by Roger Bagula
Graphics by Paul Bourke

May 2003

-3 x8 - 3 y8 - 2*z8 + 5 x4 y2 z2 + 3 x2 y4 z2 + 1 = 0

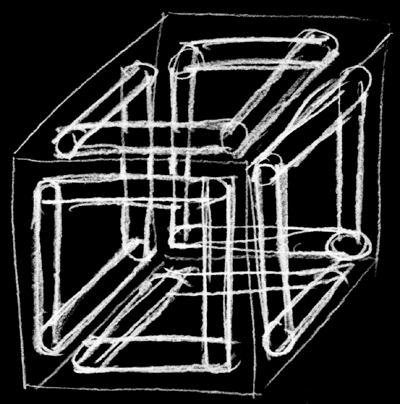

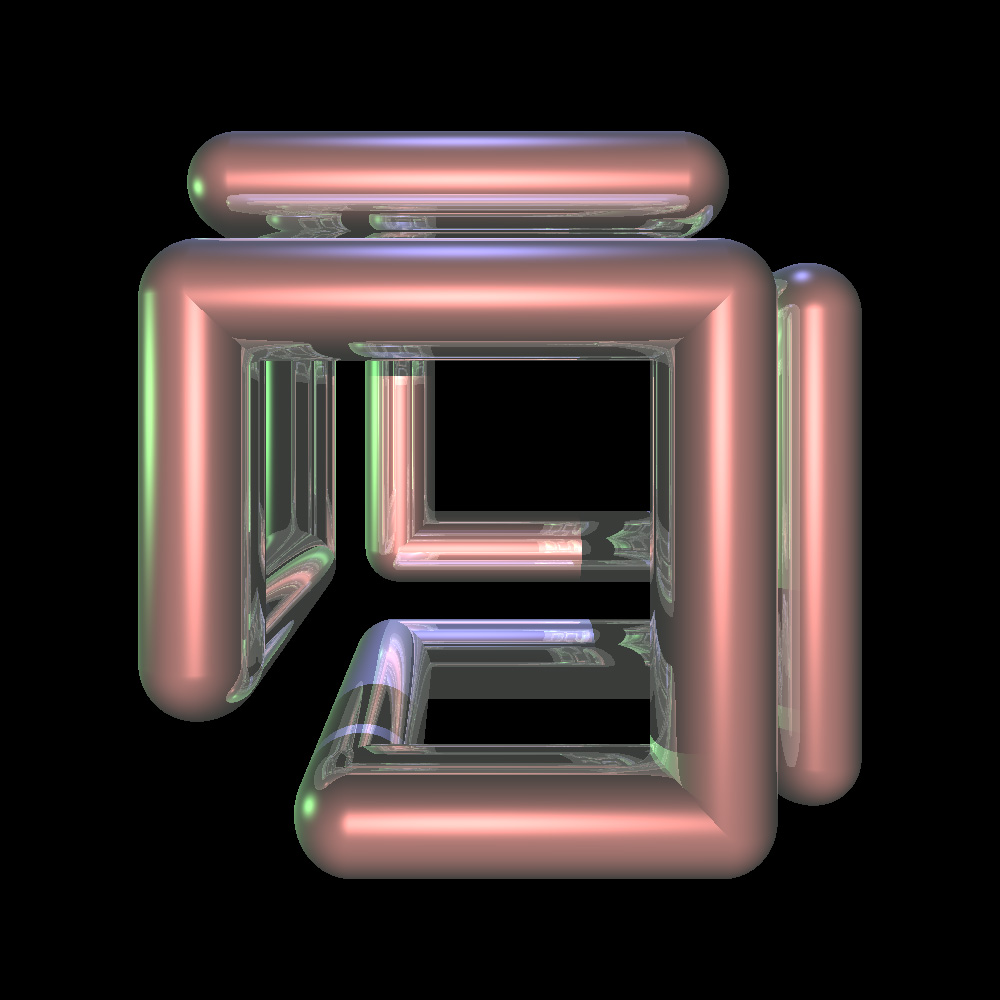

How to make the SGI logo

Written by Paul Bourke
November 1992


The SGI logo is generated as follows:
Given two lengths l1 and l2, the "turtle graphics" instructions along with the resulting wire frame result are given below. In what follows, left and right refer to moving towards the negative numbers or positive numbers respectively. Up and down is movement along the z axis, back and forward refer to the y axis.

forward l1
left l2
down l1
right l1
up l2
back l1
down l1
forward l2
left l1
back l1
right l2
up l1
left l1
down l2
forward l1
up l1
back l2
right l1
sgilogo wireframe

In the example above l1 = 1 and l2 = 0.7

Turning the line segments into cylinder/sphere pairs is shown below with its geometric description in Radiance

s cylinder cyl 0 0 7 -0.5 -0.5 0.5 0.5 -0.5 0.5 0.13
s cylinder cyl 0 0 7 0.5 -0.5 0.5 0.5 0.5 0.5 0.13
s cylinder cyl 0 0 7 -0.2 -0.8 -0.8 -0.2 0.2 -0.8 0.13
s cylinder cyl 0 0 7 -0.2 0.2 -0.8 0.8 0.2 -0.8 0.13
s cylinder cyl 0 0 7 0.8 0.2 -0.8 0.8 -0.5 -0.8 0.13
s cylinder cyl 0 0 7 0.8 -0.5 -0.8 0.8 -0.5 0.2 0.13
s cylinder cyl 0 0 7 0.8 -0.5 0.2 0.8 0.5 0.2 0.13
s cylinder cyl 0 0 7 0.8 0.5 0.2 0.8 0.5 -0.5 0.13
s cylinder cyl 0 0 7 0.8 0.5 -0.5 -0.2 0.5 -0.5 0.13
s cylinder cyl 0 0 7 -0.2 0.5 -0.5 -0.2 0.5 0.5 0.13
s cylinder cyl 0 0 7 0.5 0.5 0.5 -0.2 0.5 0.5 0.13
s cylinder cyl 0 0 7 -0.5 -0.5 0.5 -0.5 0.2 0.5 0.13
s cylinder cyl 0 0 7 -0.5 0.2 0.5 -0.5 0.2 -0.5 0.13
s cylinder cyl 0 0 7 -0.5 0.2 -0.5 -0.5 -0.8 -0.5 0.13
s cylinder cyl 0 0 7 -0.5 -0.8 -0.5 -0.5 -0.8 0.2 0.13
s cylinder cyl 0 0 7 -0.5 -0.8 0.2 0.5 -0.8 0.2 0.13
s cylinder cyl 0 0 7 0.5 -0.8 0.2 0.5 -0.8 -0.8 0.13
s cylinder cyl 0 0 7 0.5 -0.8 -0.8 -0.2 -0.8 -0.8 0.13
s sphere sph 0 0 4 -0.5 -0.5 0.5 0.13
s sphere sph 0 0 4 0.5 -0.5 0.5 0.13
s sphere sph 0 0 4 0.5 0.5 0.5 0.13
s sphere sph 0 0 4 -0.2 0.2 -0.8 0.13
s sphere sph 0 0 4 0.8 0.2 -0.8 0.13
s sphere sph 0 0 4 0.8 -0.5 -0.8 0.13
s sphere sph 0 0 4 0.8 -0.5 0.2 0.13
s sphere sph 0 0 4 0.8 0.5 0.2 0.13
s sphere sph 0 0 4 0.8 0.5 -0.5 0.13
s sphere sph 0 0 4 -0.2 0.5 -0.5 0.13
s sphere sph 0 0 4 -0.2 0.5 0.5 0.13
s sphere sph 0 0 4 -0.2 0.5 0.5 0.13
s sphere sph 0 0 4 -0.5 0.2 0.5 0.13
s sphere sph 0 0 4 -0.5 0.2 -0.5 0.13
s sphere sph 0 0 4 -0.5 -0.8 -0.5 0.13
s sphere sph 0 0 4 -0.5 -0.8 0.2 0.13
s sphere sph 0 0 4 0.5 -0.8 0.2 0.13
s sphere sph 0 0 4 0.5 -0.8 -0.8 0.13
s sphere sph 0 0 4 -0.2 -0.8 -0.8 0.13
sgilogo radiance

sgilogo radiance

The "logo" can be interlinked in each 3D direction, a few cells are shown below

sgilogo linked

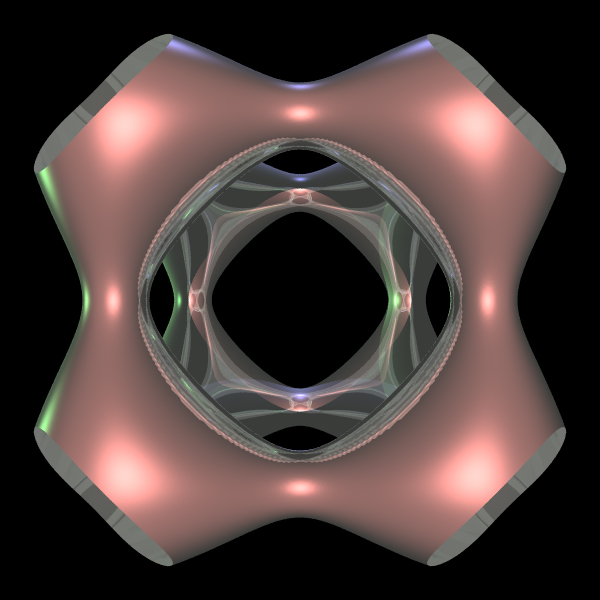

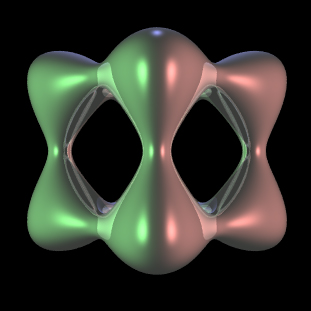

Tangle Surface

Graphics by Paul Bourke
March 2003
x4 - 5 x2 + y4 - 5 y2 + z4 - 5 z2 + 11.8 = 0
