Chrysanthemum Curve

Written by Paul Bourke

Attributed to Temple Fay
See also: Butterfly curve

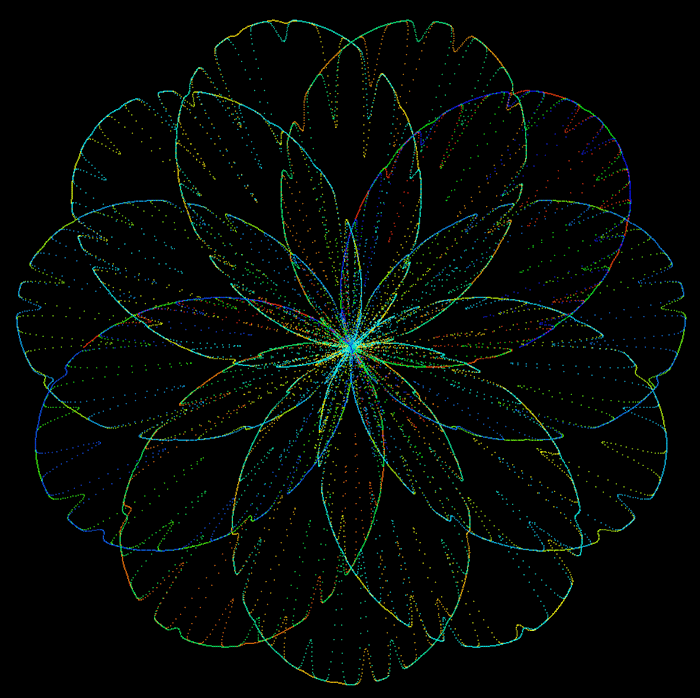

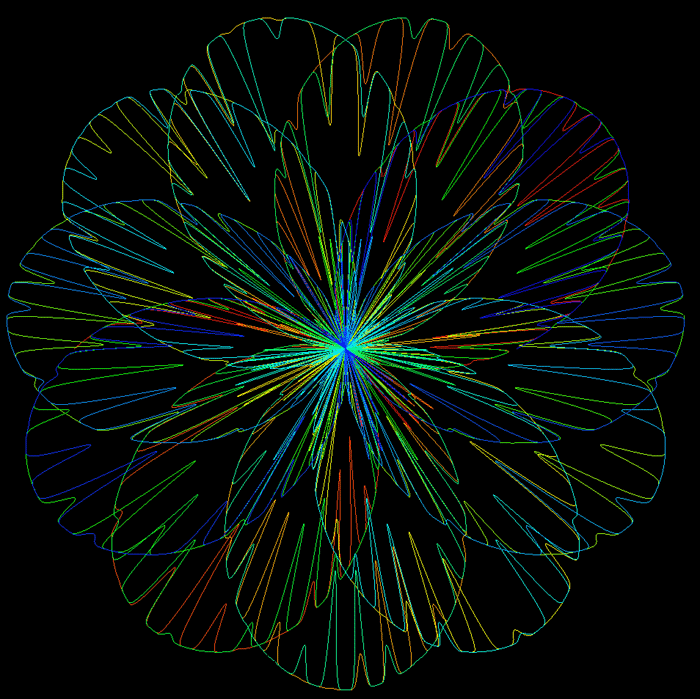

The chrysanthemum curve is given in polar coordinates by the following

r = 5 (1 + sin(11 u / 5)) - 4 sin4(17 u / 3) sin8(2 cos(3 u) - 28 u)  . . . where 0 <= u <= 21 pi

and in Cartesian coordinates

x = r cos(u)
y = r sin(u)

#include "stdlib.h"
#include "stdio.h"
#include "math.h"

typedef struct {
   double x,y,z;
} XYZ;

#define N 30000

int main(int argc,char **argv)
{
   int i;
   double u,r,p4,p8;
   XYZ p,plast;

   for (i=0;i<=N;i++) {
      u = i * 21.0 * PI / N;
      p4 = sin(17 * u / 3);
      p8 = sin(2 * cos(3 * u) - 28 * u);
      r = 5*(1 + sin(11*u/5)) - 4*p4*p4*p4*p4 * p8*p8*p8*p8*p8*p8*p8*p8;
      p.x = r * cos(u);
      p.y = r * sin(u);

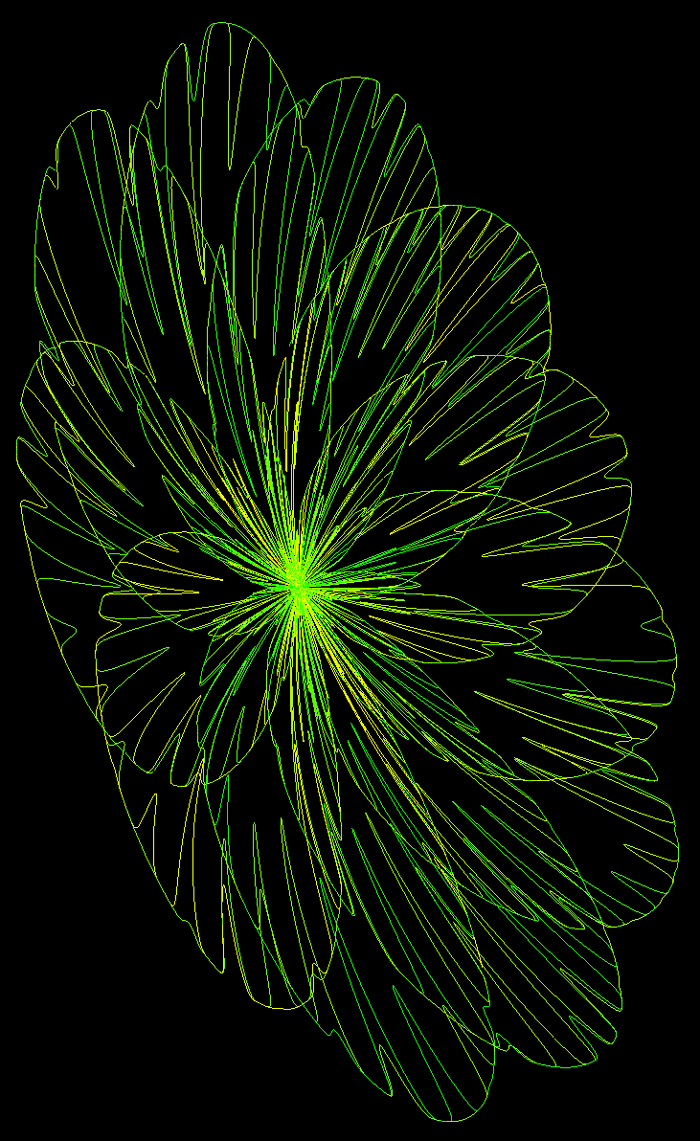

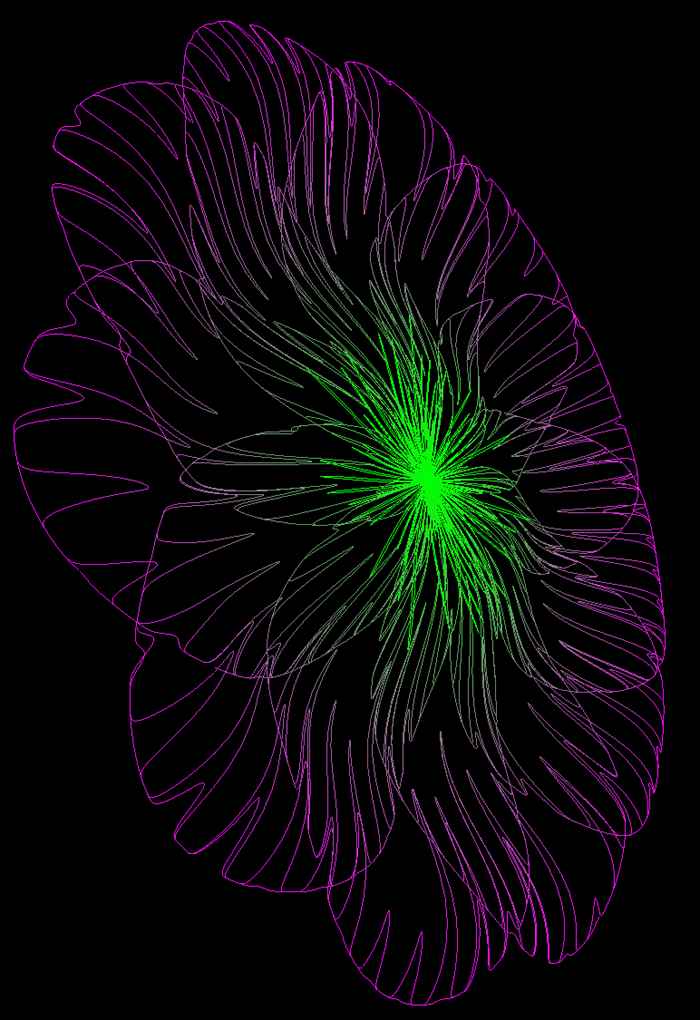

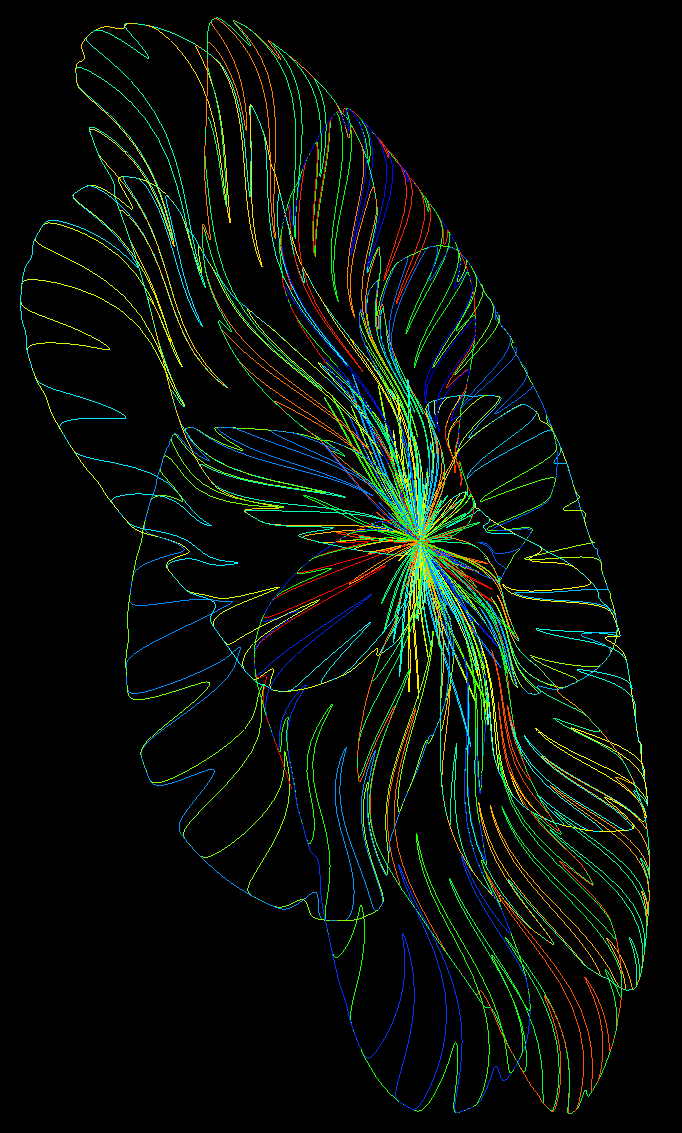

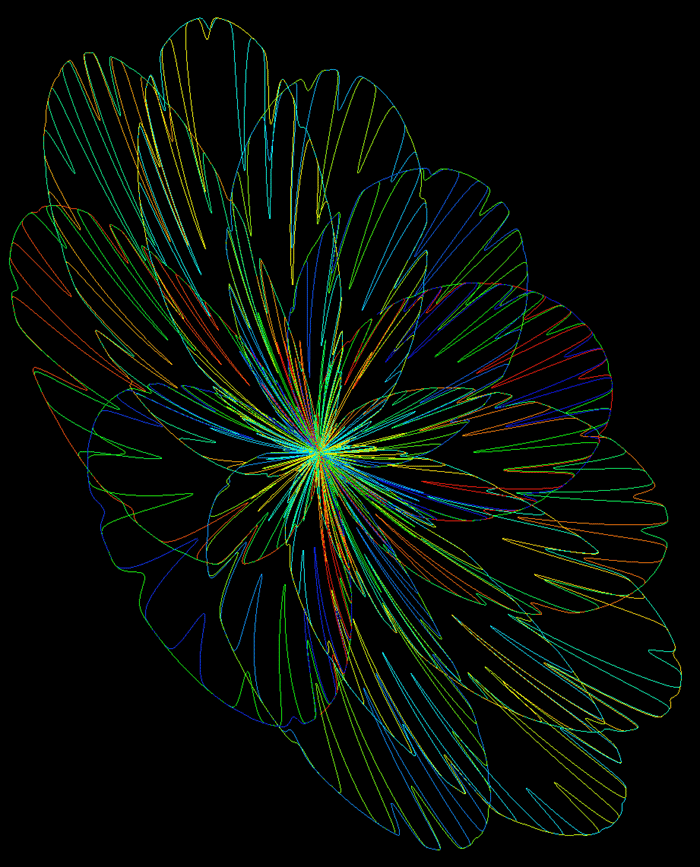

      p.z = (r/20+.2)*sin(r*TWOPI/7);
      if (i > 0)
         --- write the line plast -> p in your favourite format ---
      plast = p;
   }
}

Anaglyph contribution by Jean Tousset.


[Click for higher resolution version]
