Polynomial attractor

Written by Paul Bourke
September 2020


I rediscovered the original article by J.C.Sprott (Sprott, J. C. "Automatic Generation of Strange Attractors." Comput. & Graphics 17, 325-332, 1993c) that was one of the inspirations for my fractal explorations. The images in that publication are rather simplistic, not a complaint but a fact of graphics in that era. I didn't readily find other example and the ones on Wolfram Mathworld were equally uninspiring. So I decided to produce some myself using my 2D histogram method along with a collection of colour maps.

The attractors are based upon the equations below.

xn+1 = a0 + a1xn + a2xn2 + a3xnyn + a4yn + a5yn2
yn+1 = a6 + a7xn + a8xn2 + a9xnyn + a10yn + a11yn2


GLXOESFTTPSV


What is this "GLXOESFTTPSV"? A nice innovation in the paper was to identify the attractors by their series a0... a11. This was done by choosing values for each between -1.2 to 1.2 in steps of 0.1 and mapping those to uppercase letter A through to Y. S, GLXOESFTTPSV represents a0 = -0.6, a1 = -0.1, a2 = 1.1, a3 = 0.2, a4 = -0.8, a5 = 0.6, a6 = -0.7, a7 = 0.7, a8 = 0.7, a9 = 0.3, a10 = 0.6, a11 = 0.9.

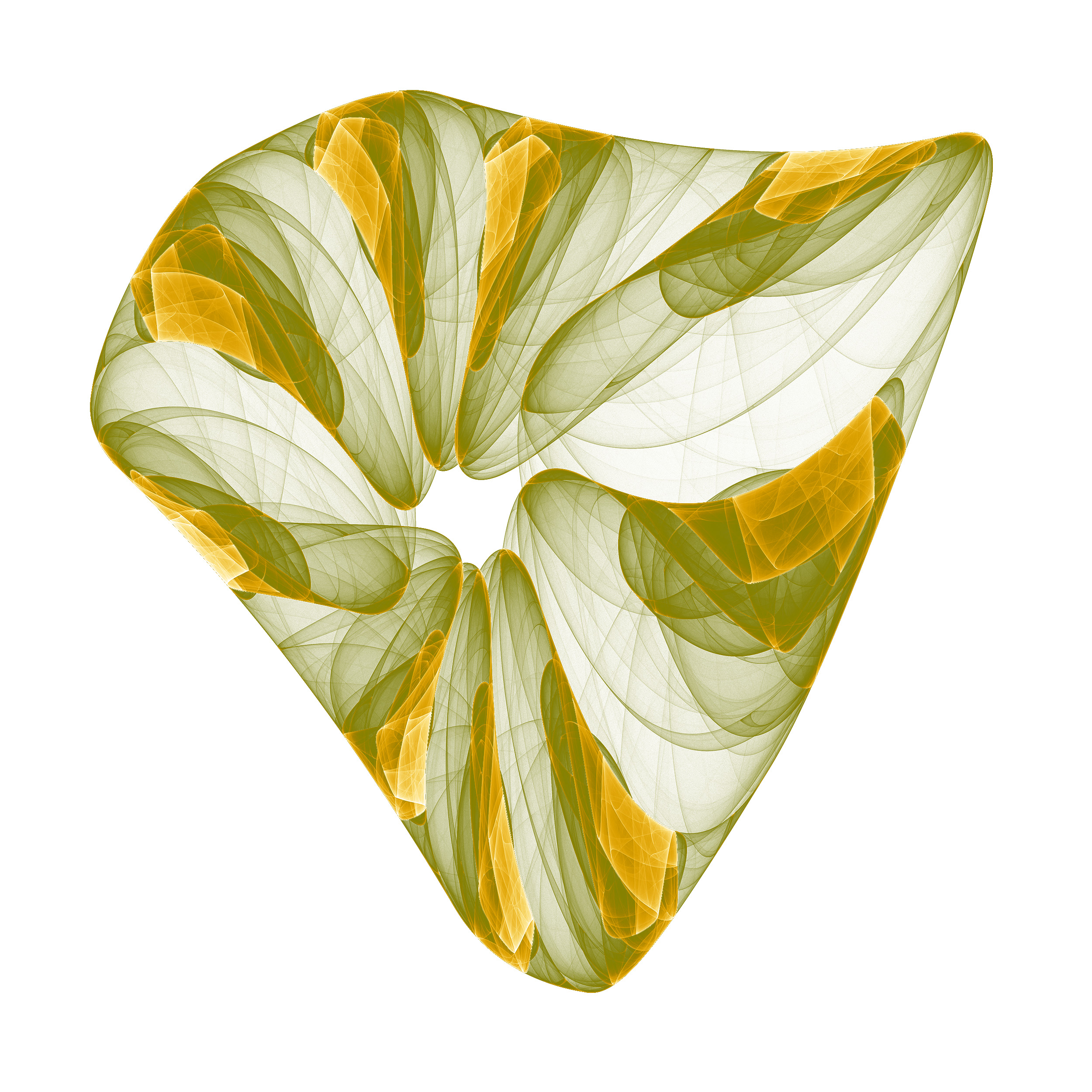

MCRBIPOPHTBN

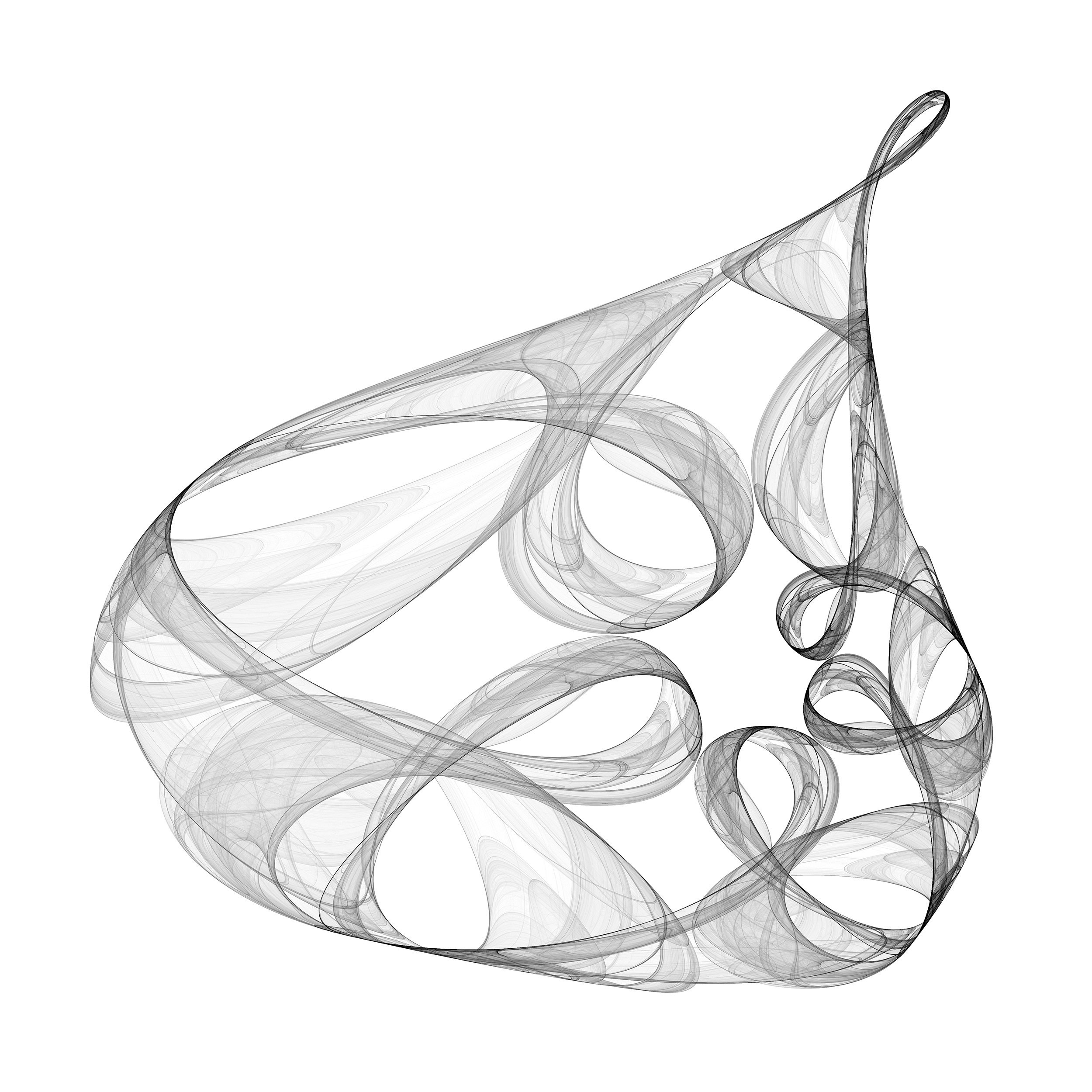

VBWNBDELYHUL



FIRCDERRPVLD



QFFVSLMJJCCR

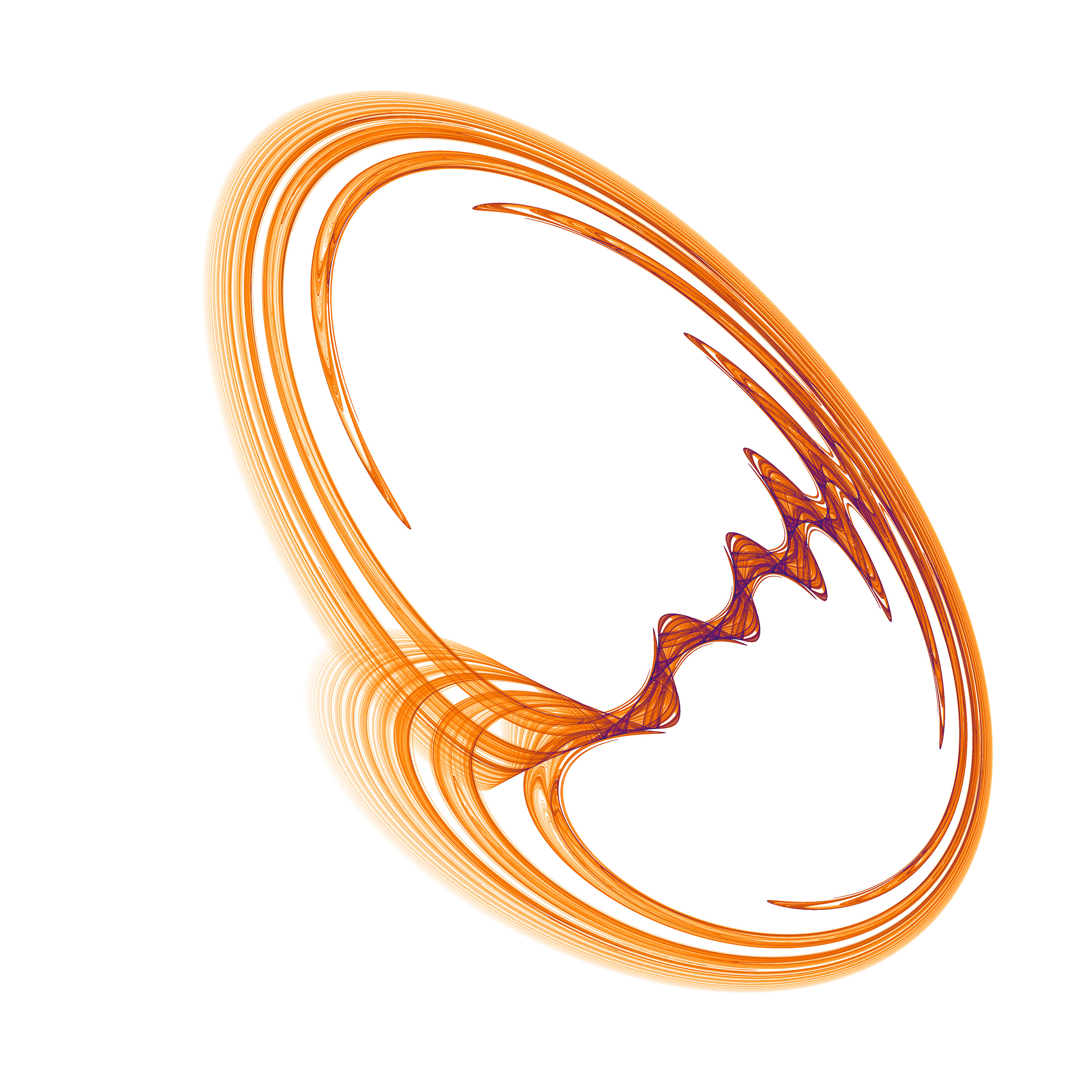

LUFBBFISGJYS



EJYDREGLYQPV

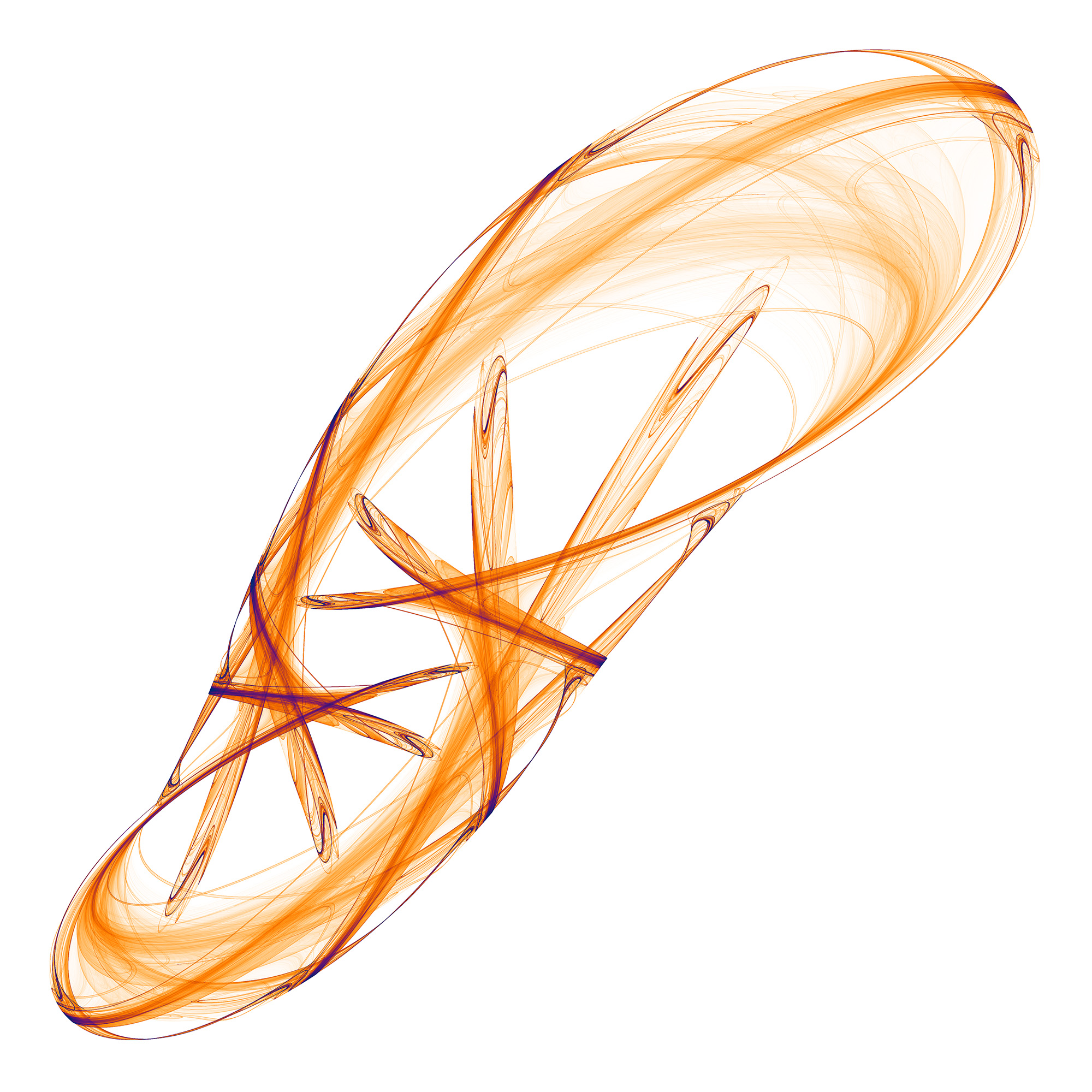

HIYIWHOKNVCG



MSSSRRPADDSO



OIHVGHAHGYRK



RALLTIOBDULT

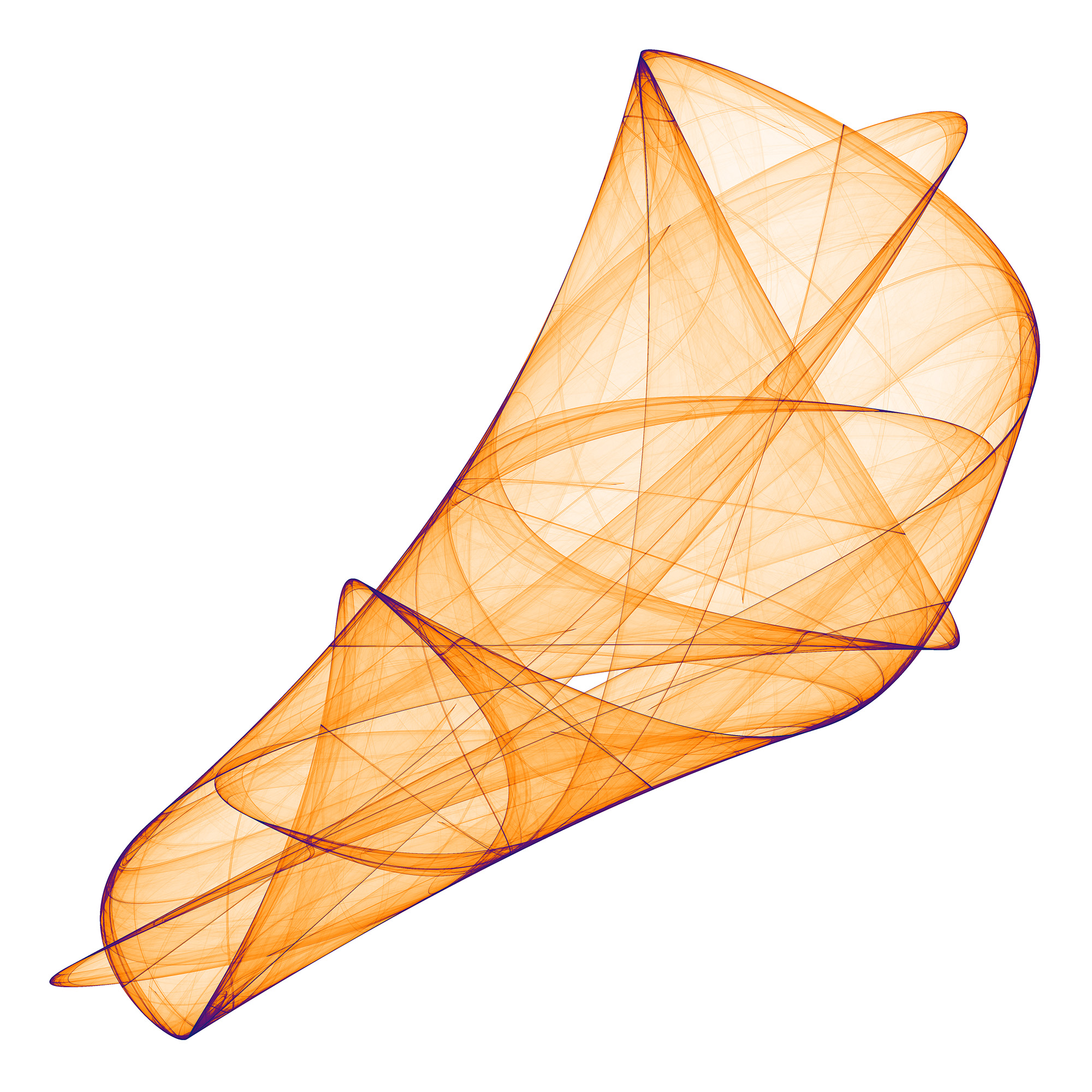

WJJFXGXHTRPG



Extension to 3D

The paper extends the notion to polynomials of 3 variables (x,y,z), this results in 30 parameters for a general 2 degree polynomial. This is written here as follows, noting the convention is different to that used in a subsquent republising of the paper.

xn+1 = a0 + a1xn + a2yn + a3zn + a4xn2 + a5yn2 + a6zn2 + a7xnyn + a8xnzn + a9ynzn
yn+1 = a10 + a11xn + a12yn + a13zn + a14xn2 + a15yn2 + a16zn2 + a17xnyn + a18xnzn + a19ynzn
zn+1 = a20 + a21xn + a22yn + a23zn + a24xn2 + a25yn2 + a26zn2 + a27xnyn + a28xnzn + a29ynzn

While the previous papers presented 2D projections onto a coordinate plane, here I populate a volume as a histogram and then render that volumetrically using ray casting. The volumes used in the examples here are 1000x1000x1000 voxels.

JSSISBSCETFBRROIRRMRFQKPSMCJAA
YouTube

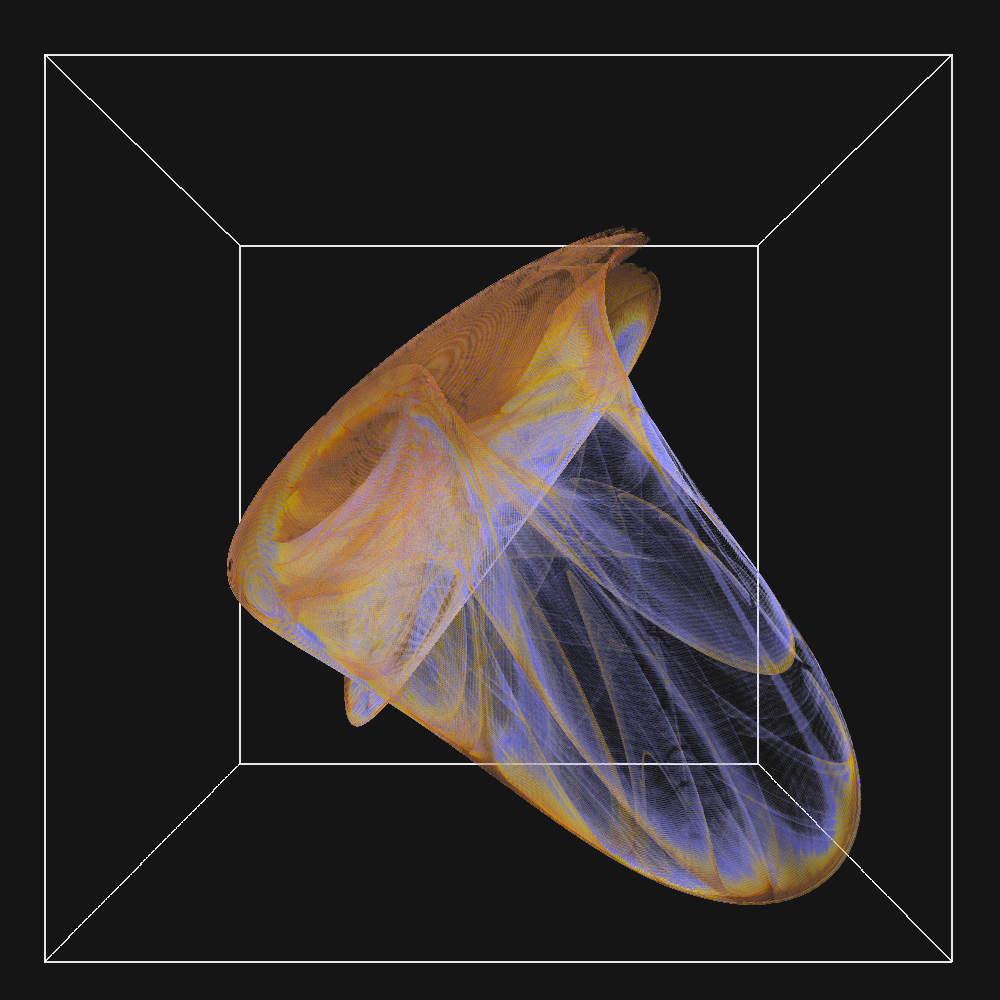

MJTUNGHFURGOOQSJQFFNCJARKODAOB
YouTube


AGUREBTODODUSKFUTGIFDDKOTJNSKF
YouTube

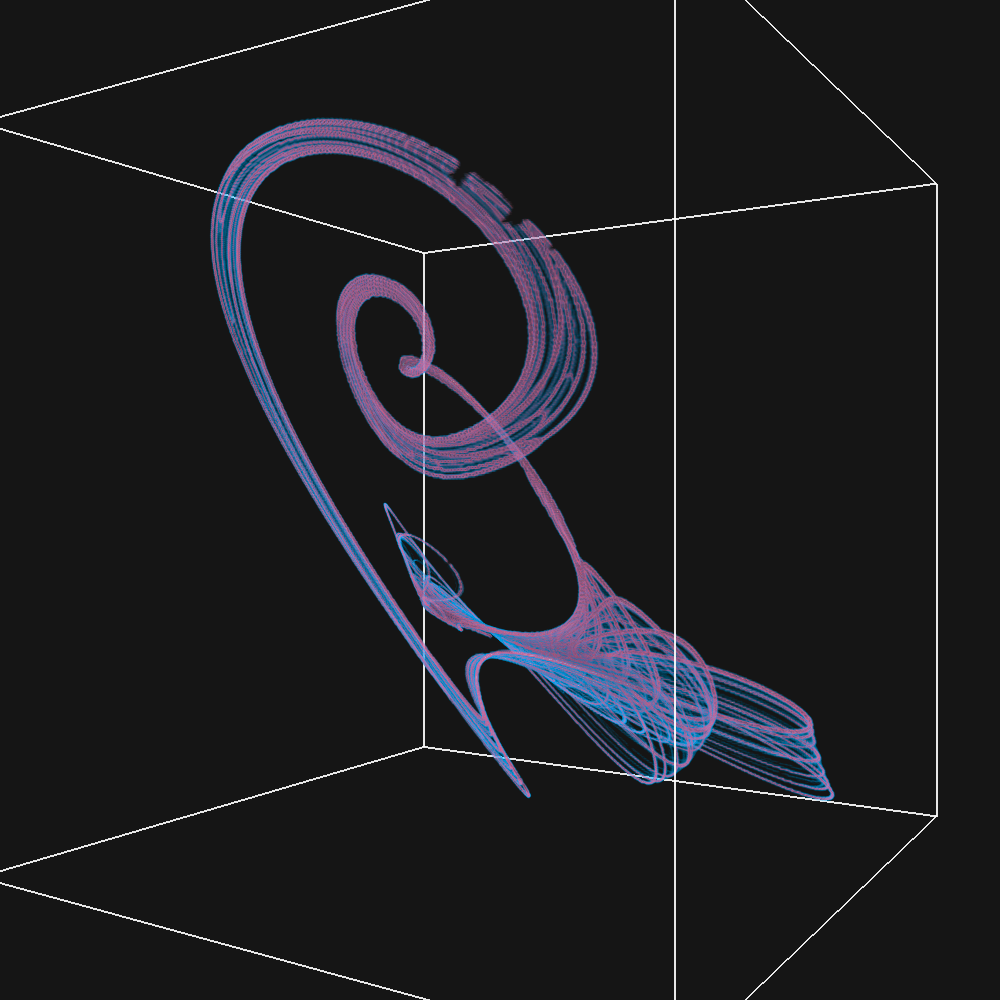

OIDOMGJJBRSCUNJQBQOIBAGNDOEDFN
YouTube


GTAANKABNPCHROMCFCCSPUMUAHPTMN
YouTube

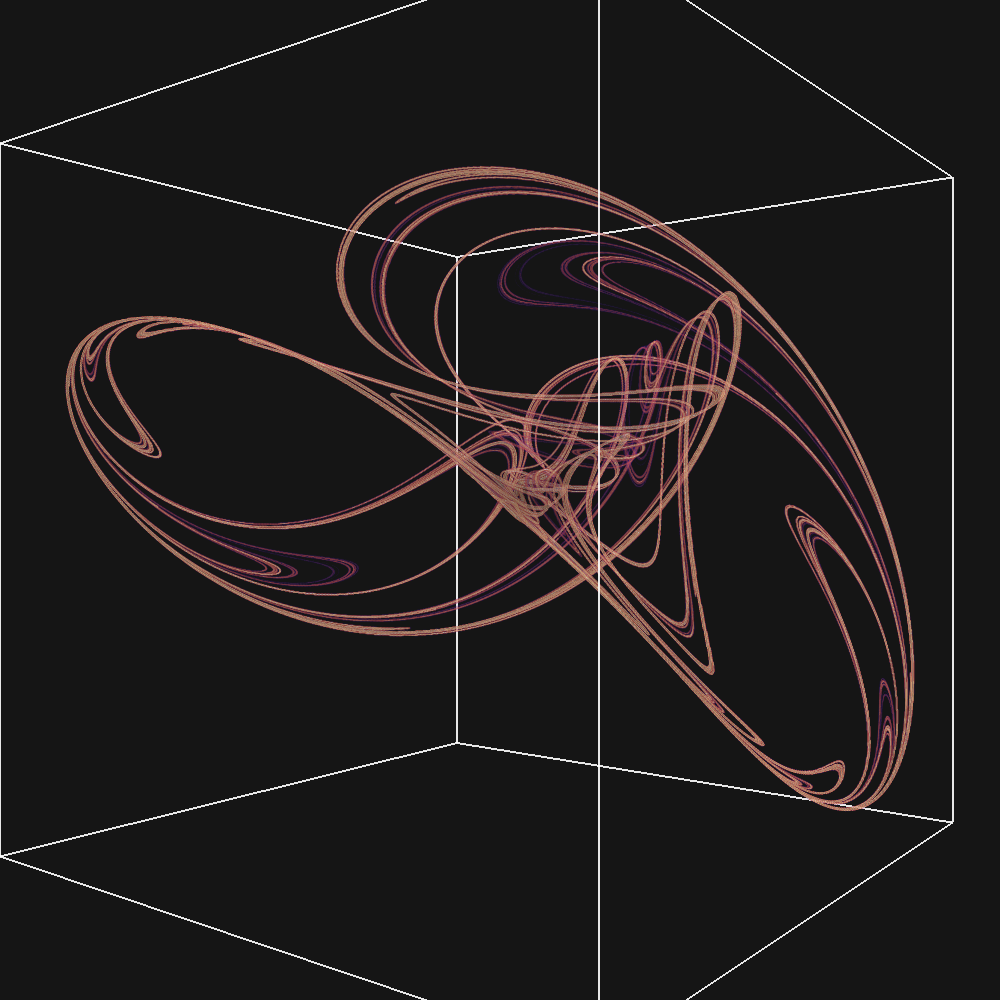

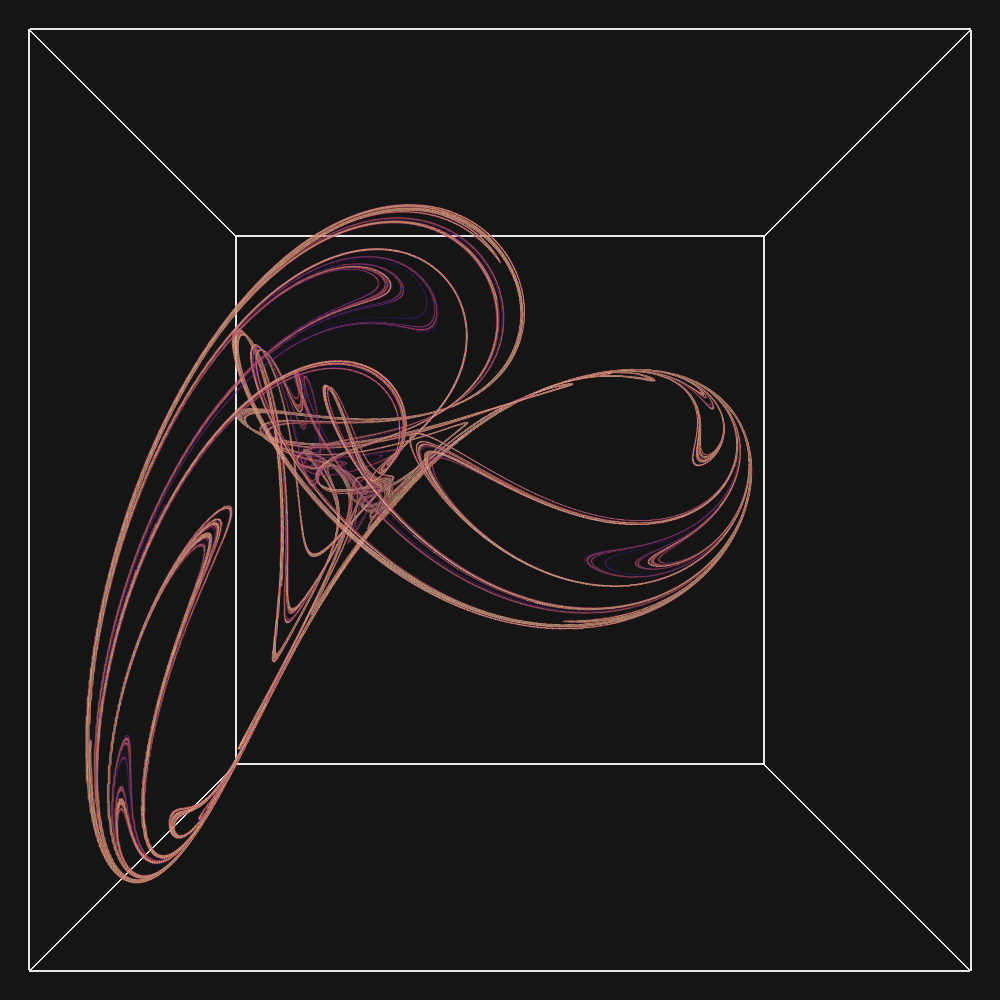

DOAKEOGSJHIPKTQSCAMSALTISGPBAI
YouTube

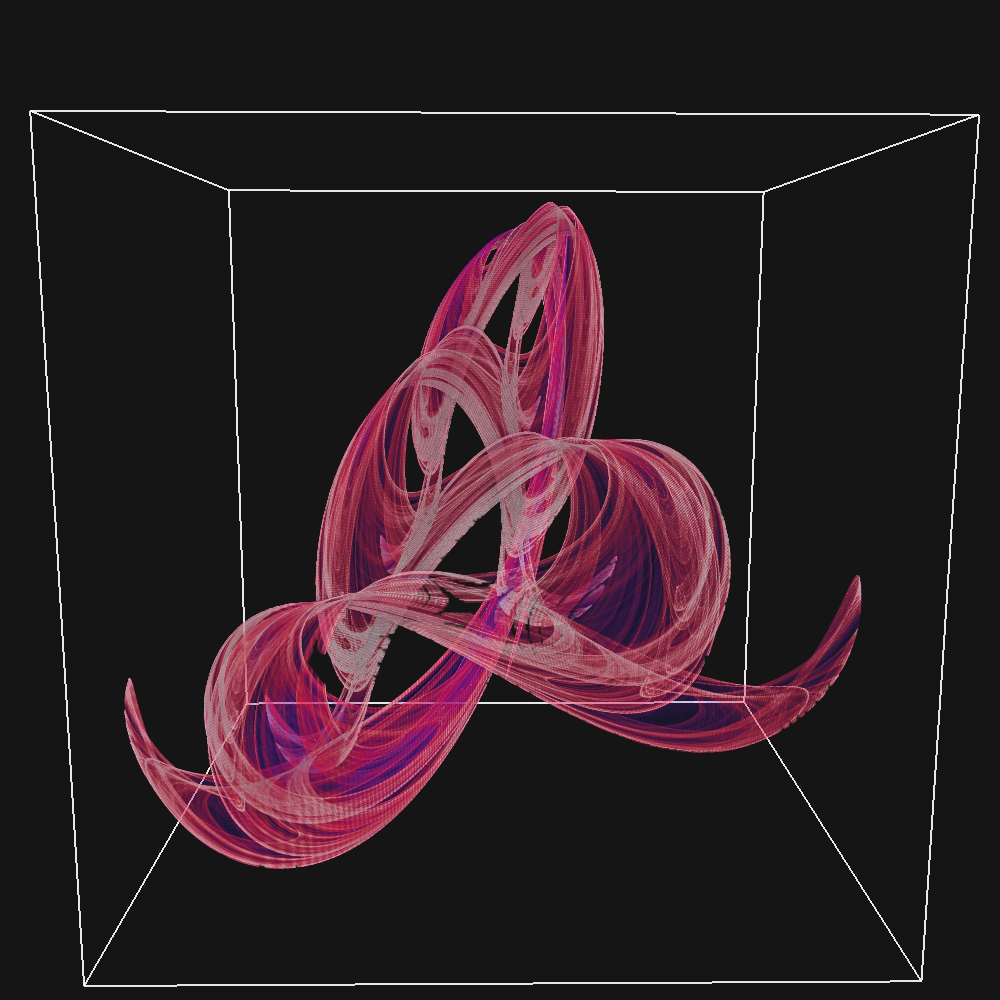

MIKMRMDKBKSFDRPDMBBRAMBSLPARUP
