Mandelbrot at higher powers

Written by Paul Bourke
February 2004


The traditional Mandelbrot is created by considering the behaviour of the series zn+1 = zn2 + zo for each position zo on the complex plane. A more general equation might be zn+1 = znM + zo. The resulting shapes are less frequently explored, a graphical exploration of M space is given below.

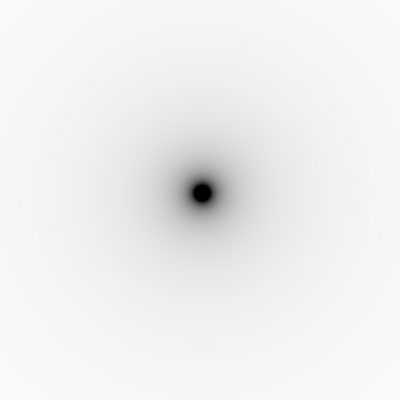

Integer powers M = 1

zn+1 = zn1 + zo
This is of course hardly very interesting, nor fractal.

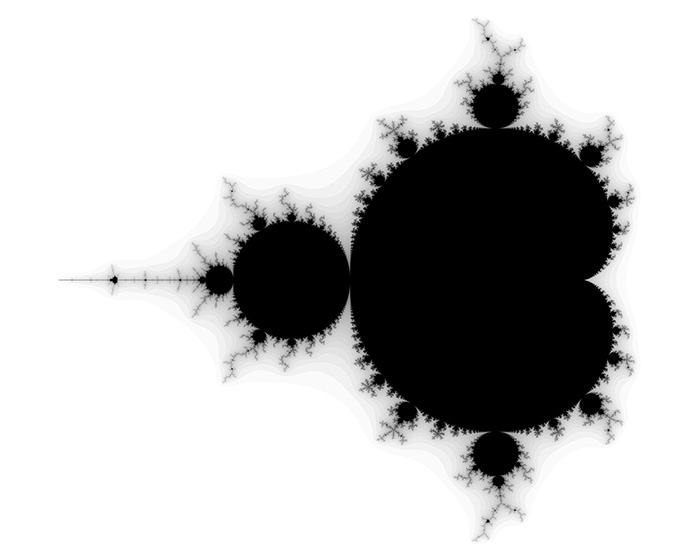

M = 2

zn+1 = zn2 + zo
The traditional Mandelbrot, M = 2.

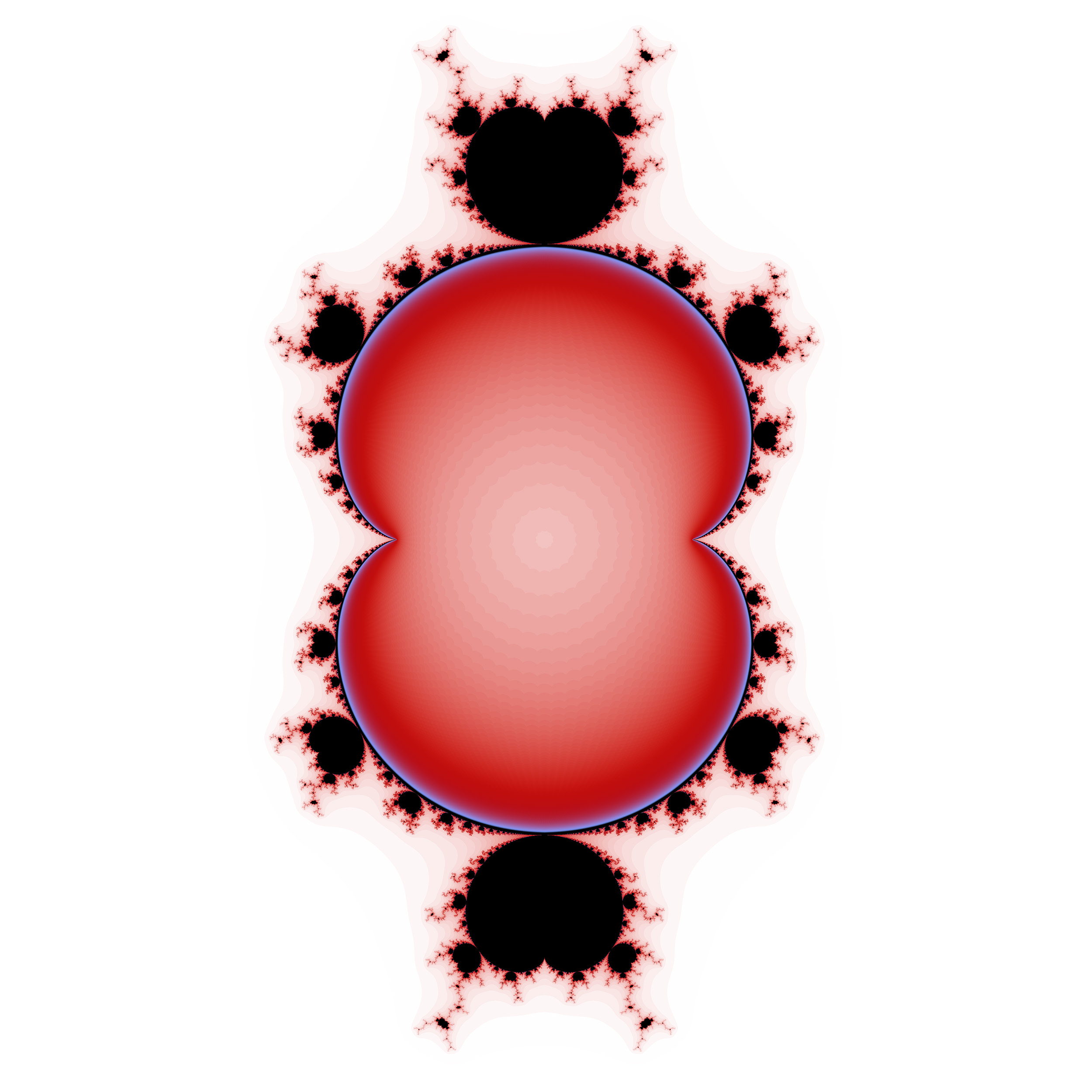

M = 3

zn+1 = zn3 + zo




M = 4

zn+1 = zn4 + zo
In general there are M-1 main lobes which result in M-1 degrees of rotational symmetry.

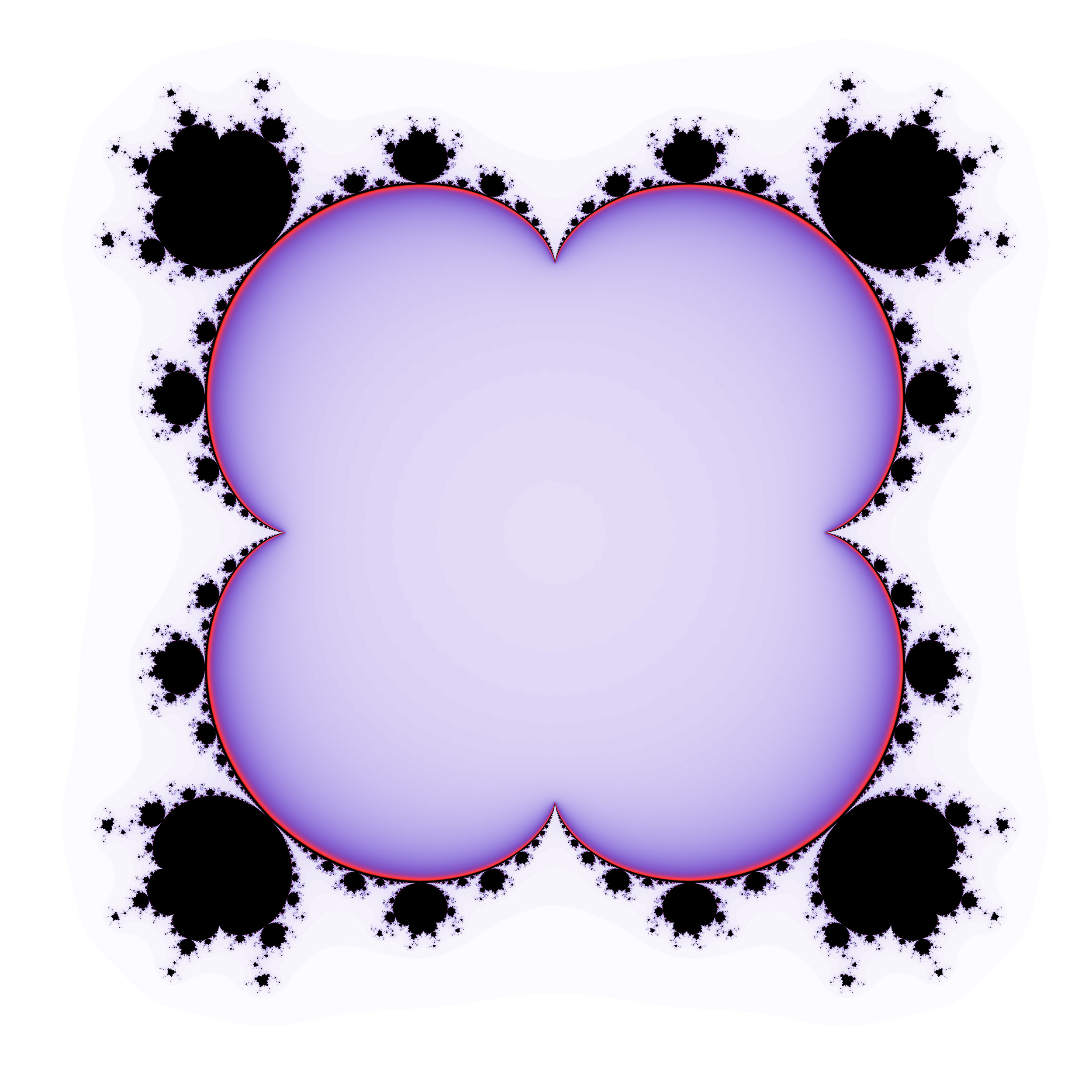

M = 5

zn+1 = zn5 + zo




M = 6

zn+1 = zn6 + zo

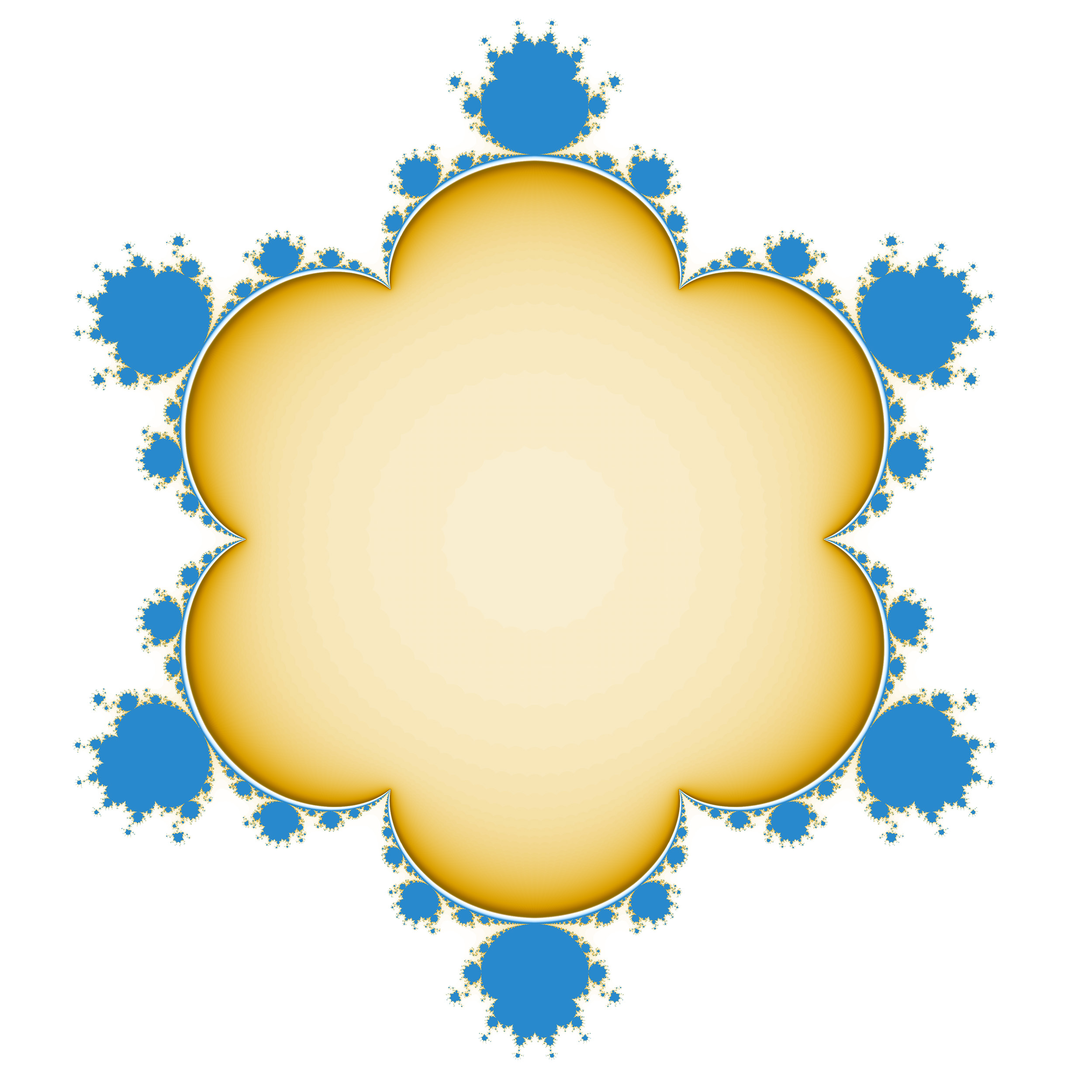

M = 7

zn+1 = zn7 + zo




M = 8

zn+1 = zn8 + zo

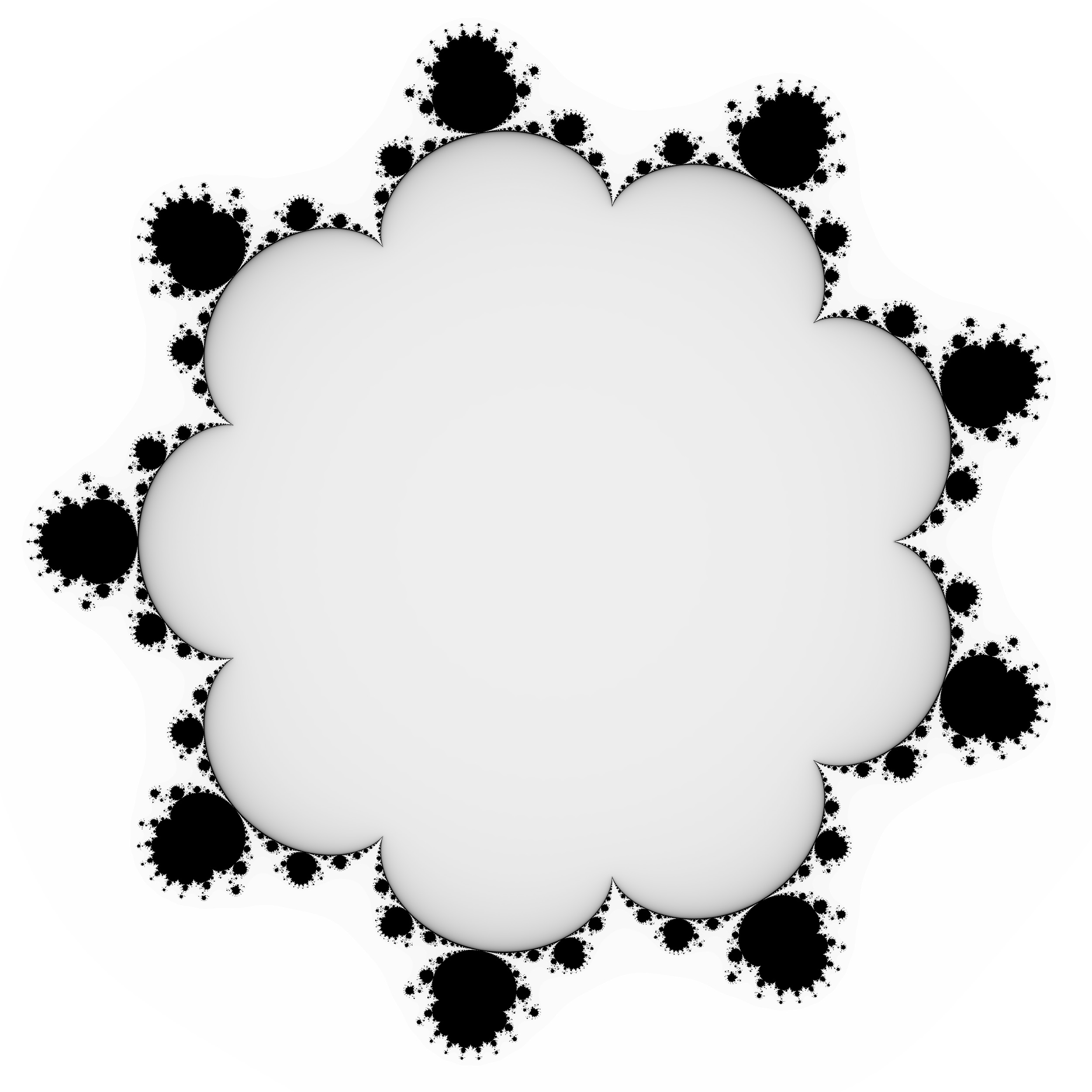

M = 10

zn+1 = zn10 + zo
The shapes get increasingly circular looking, but the detail on zooming in remains fractal.






Non-Integer powers

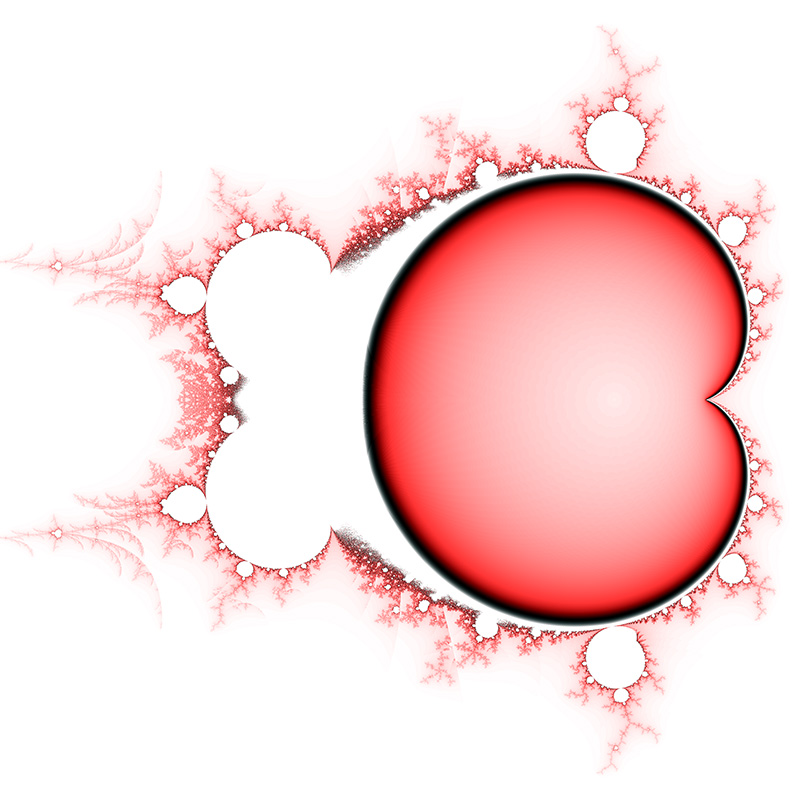

M = 2.1


zn+1 = zn2.1 + zo







M = 2.3

zn+1 = zn2.3 + zo




M = 2.5

zn+1 = zn2.5 + zo
Real valued M tend to appear like transitions between the lower and higher integer powers with a split along the negative real axis.

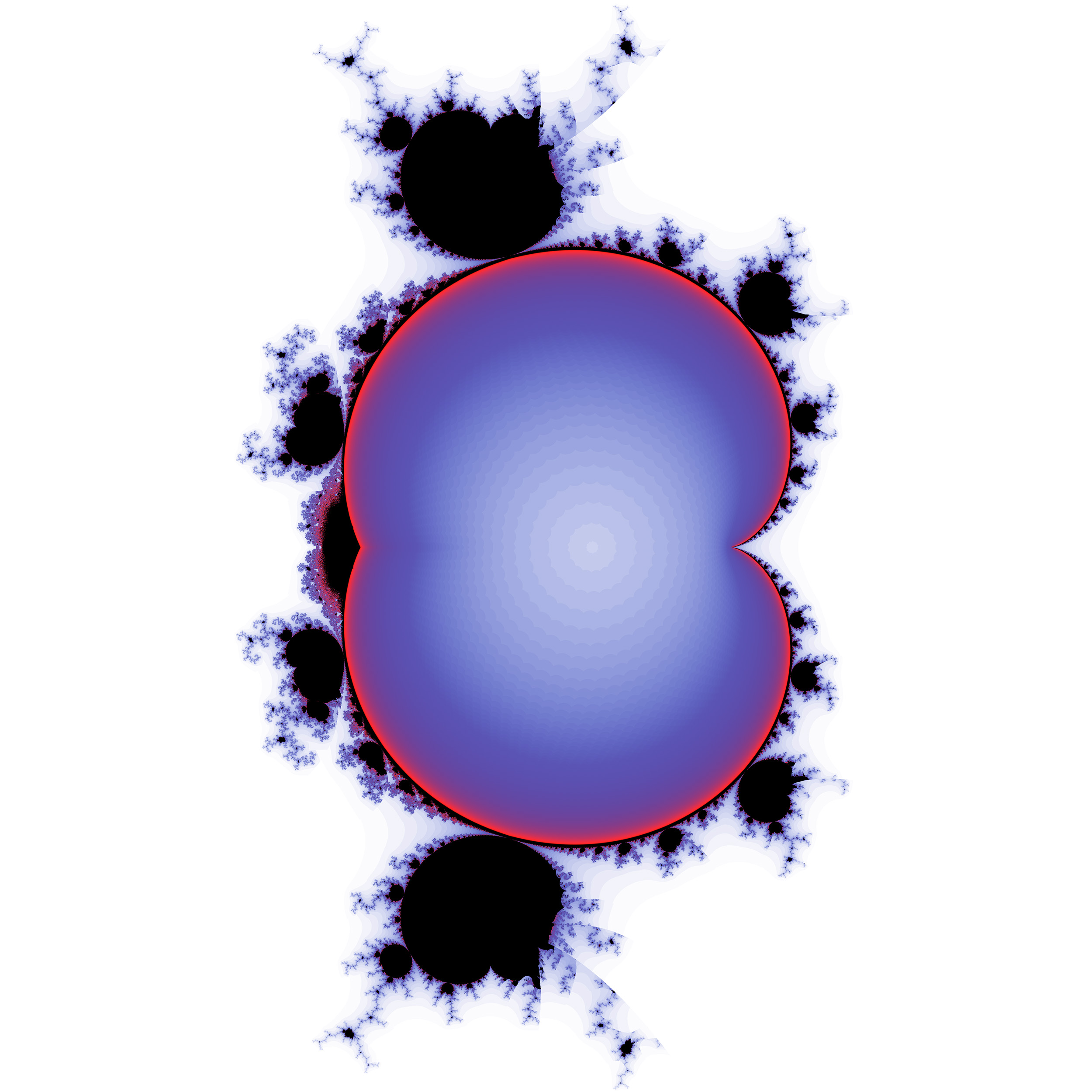

M = 2.7

zn+1 = zn2.7 + zo




Negative powers

M = -1


zn+1 = zn-1 + zo

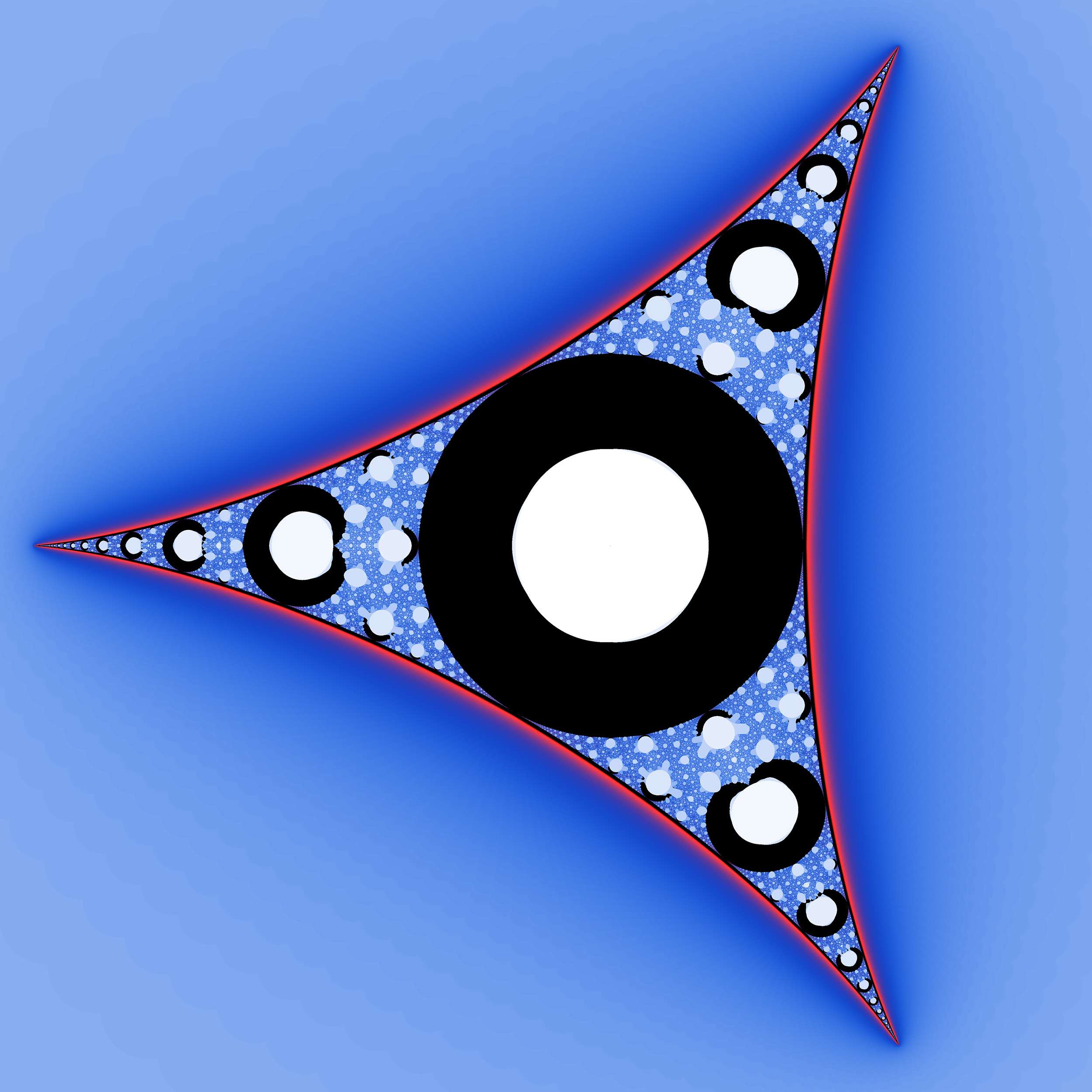

M = -2

zn+1 = zn-2 + zo

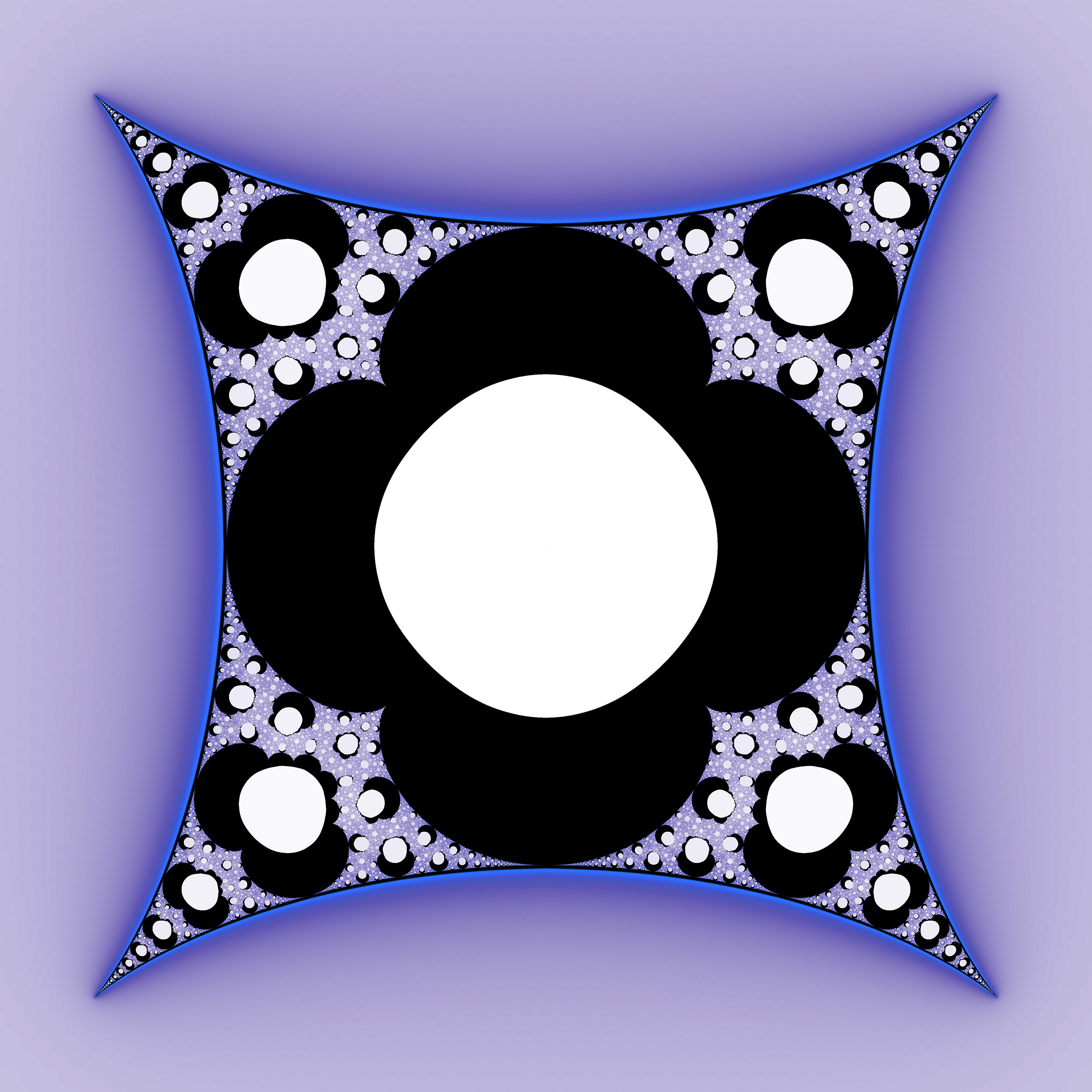

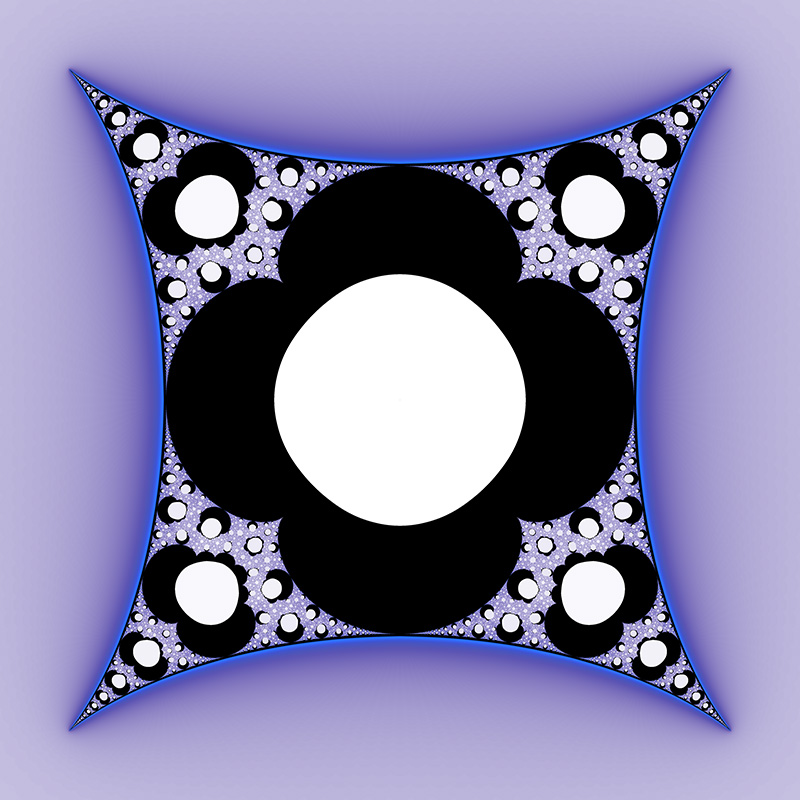

M = -3

zn+1 = zn-3 + zo

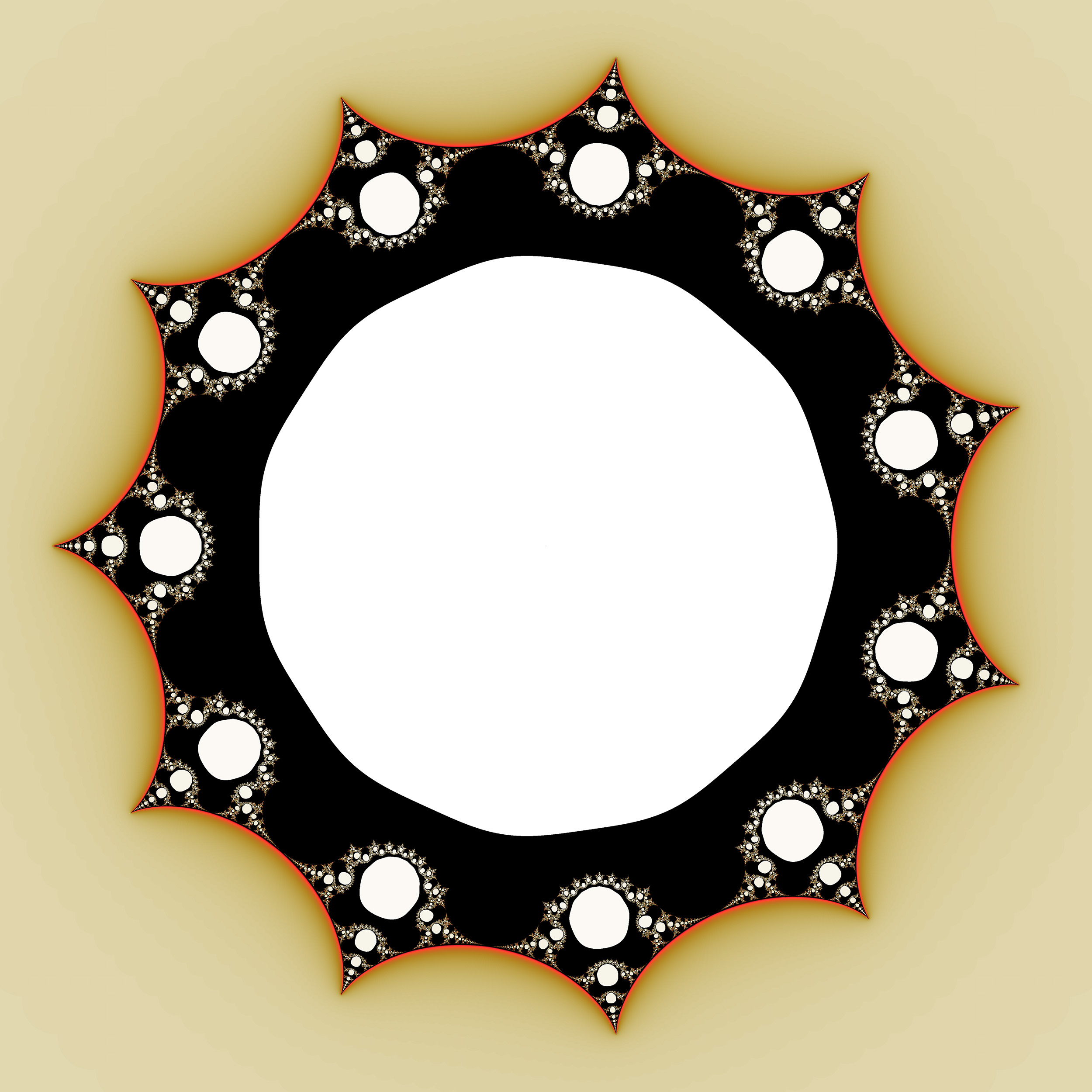

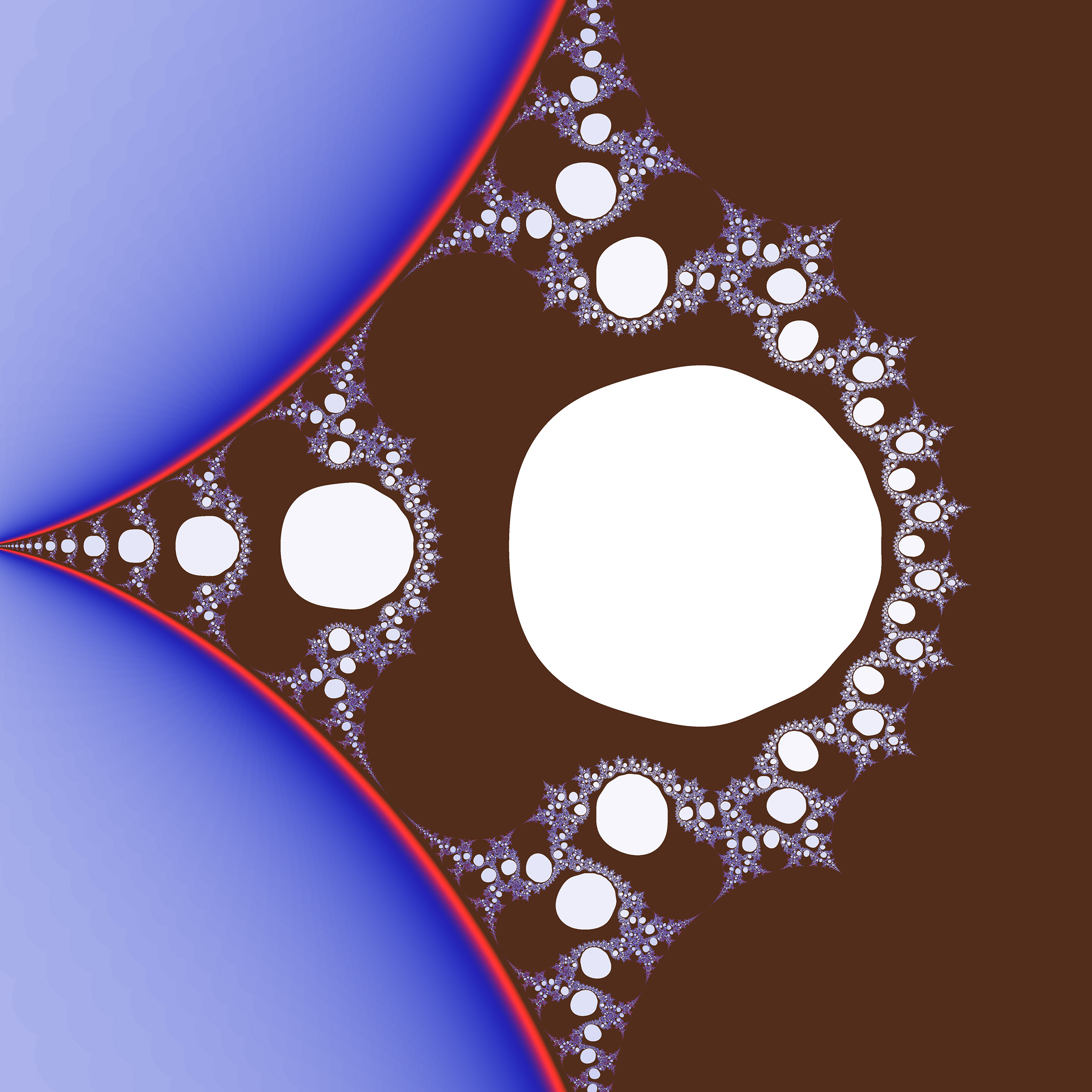

M = -10

zn+1 = zn-10 + zo

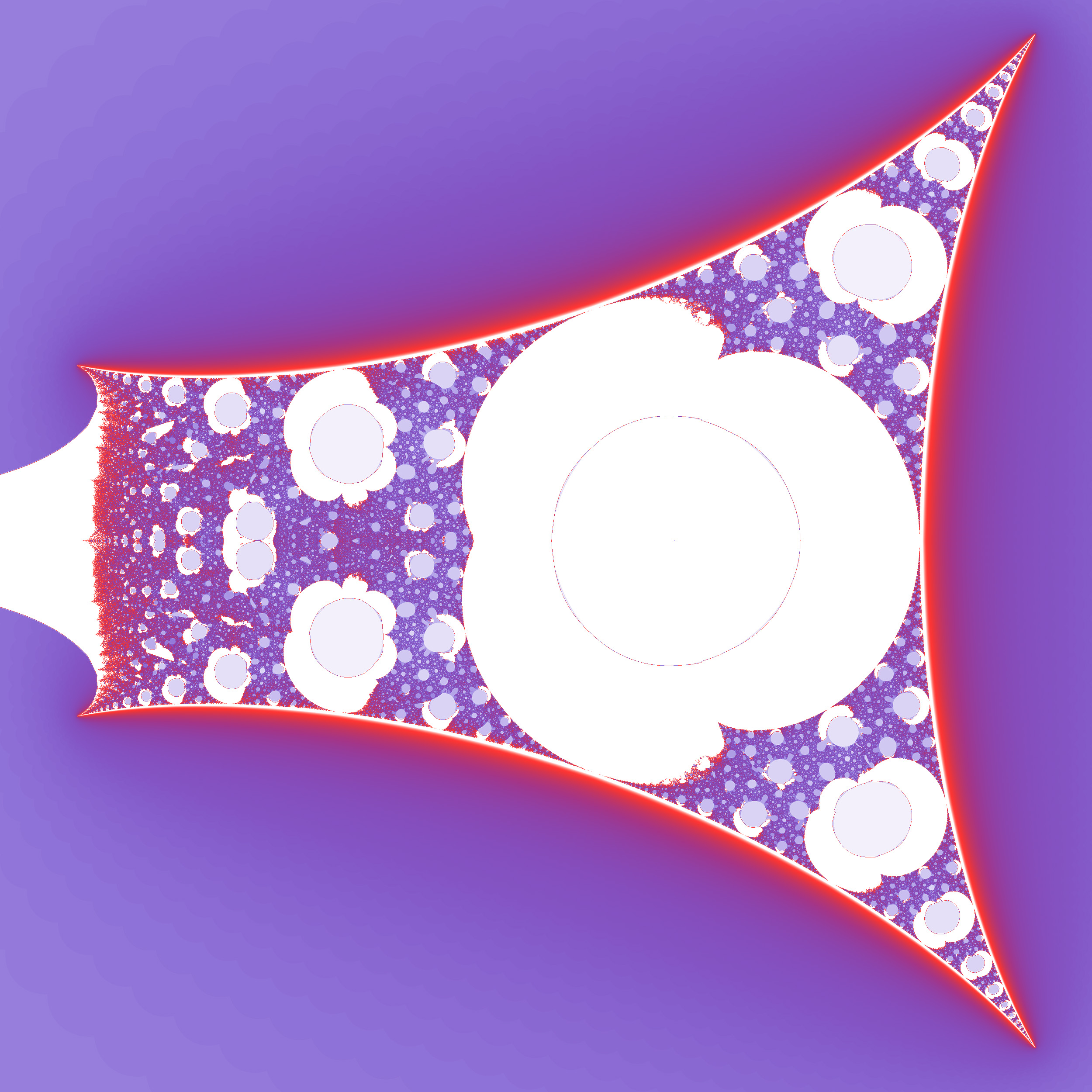

M = -2.3

zn+1 = zn-2.3 + zo

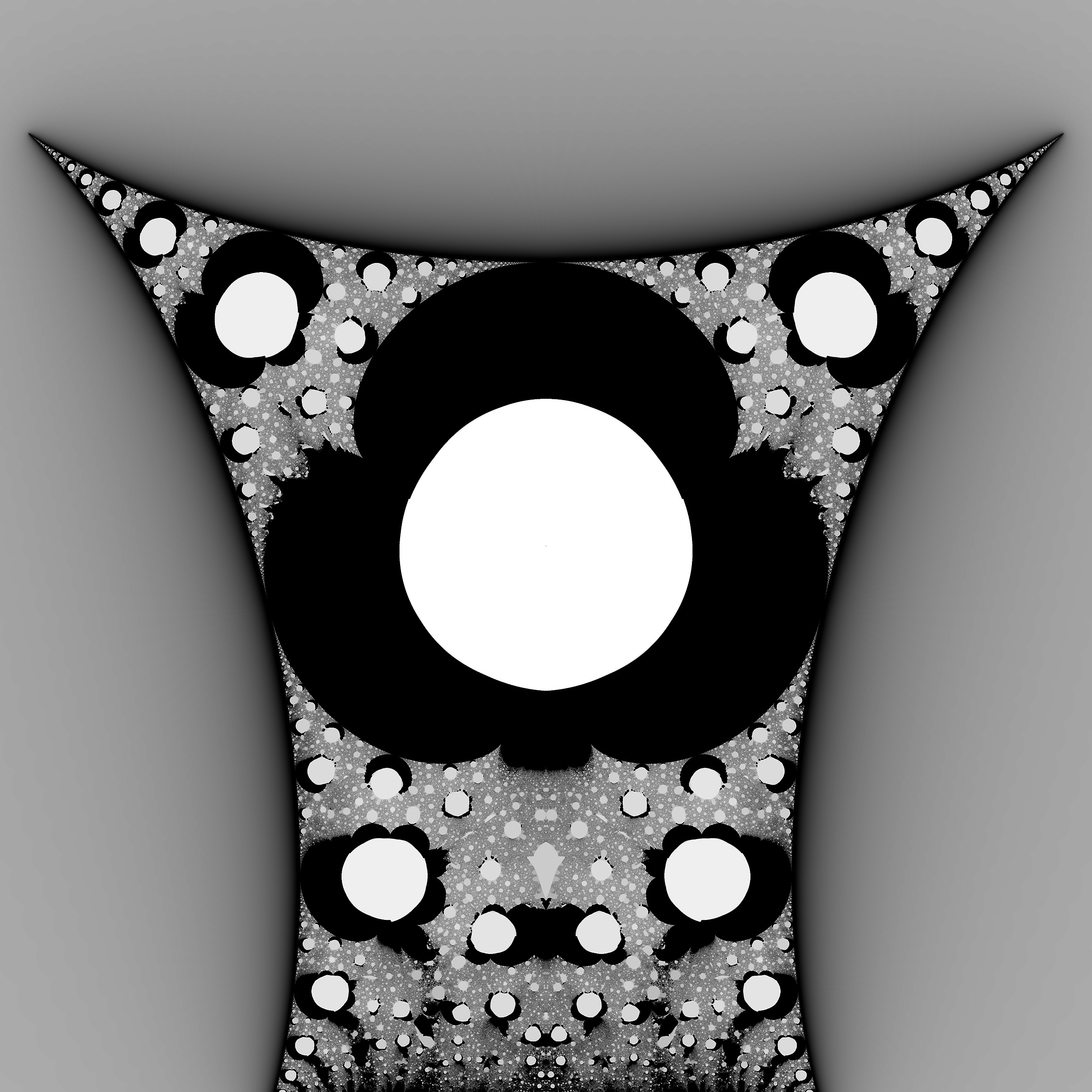

M = -2.5

zn+1 = zn-2.5 + zo
