Ikeda attractor

Written by Paul Bourke
January 1991, images updated January 2018

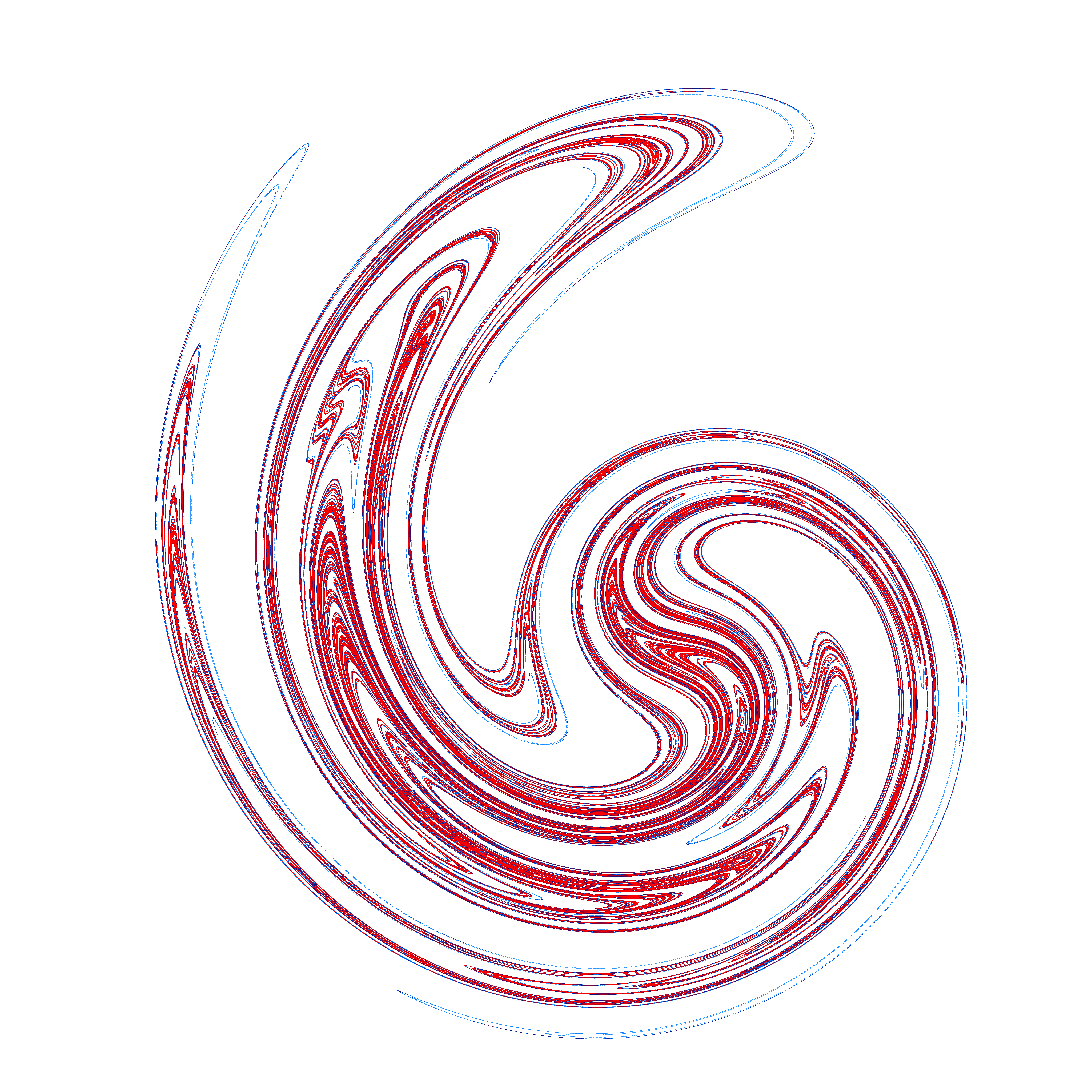

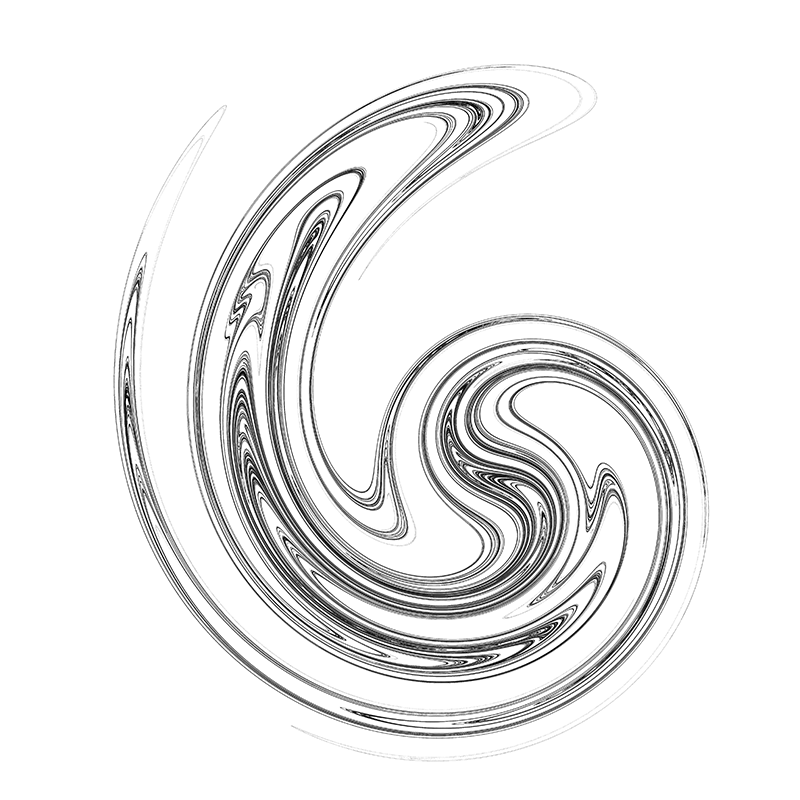

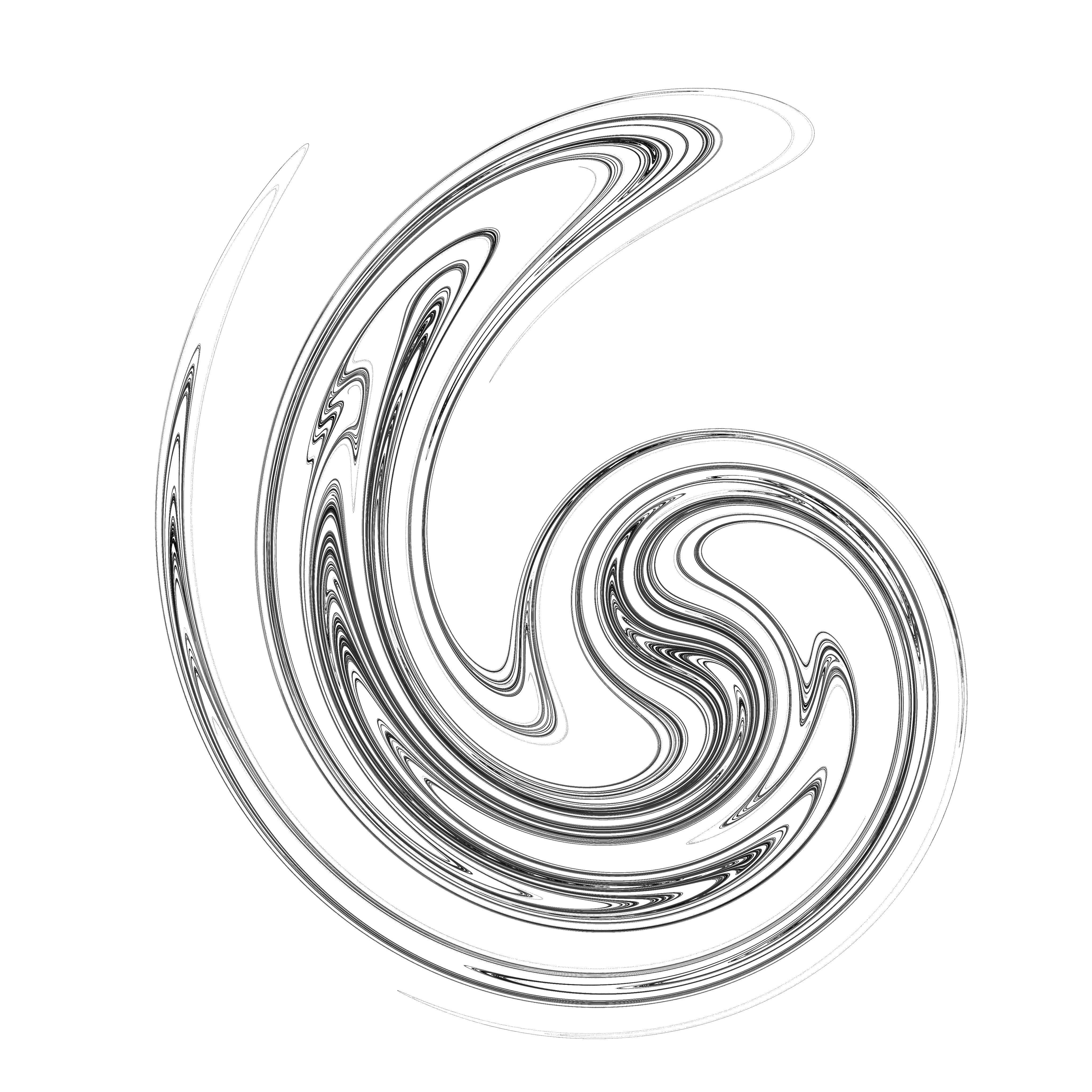

The Ikeda attractor is based upon the following complex valued series with the 4 parameters a, b, k and p.

zn+1 = a + b zn exp[ i k - i p / (1 + | zn2 | ) ]

a = 0.85, b = 0.9, k = 0.4, p = 7.7

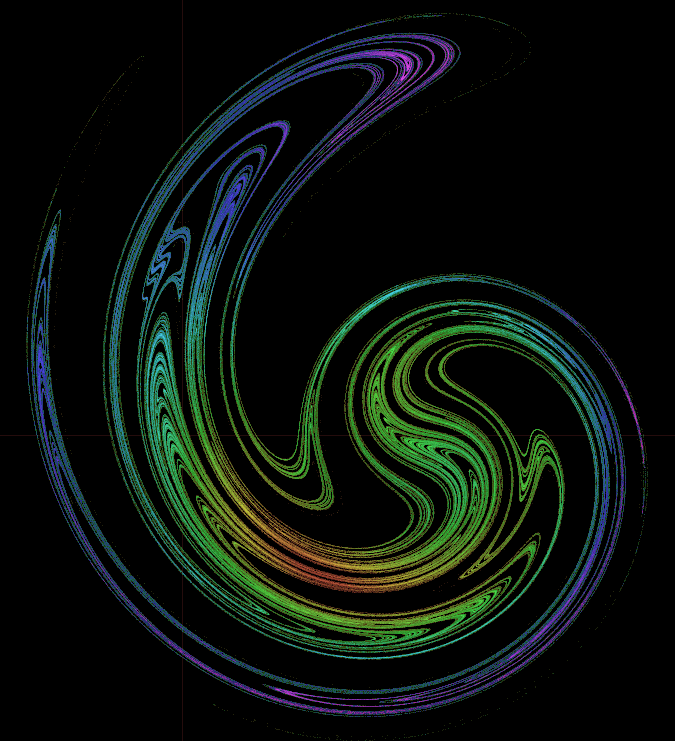

Contribution by Tim Meehan
