YASRT Raytracer YASRT Version 0.1 Beta 12 User's Documentation Last Updated: 14 March 2001 Copyright 2000/2001 Emmanuel
Viale ______________________________________________________________________ Abstract: This document is the user's manual for the YASRT Raytracer. It describes what YASRT is and what it's not. It walks the reader through a tutorial that shows the different features of the program. A full documentation on the YASRT language is also given. For a text only version see this: yasrtdoc.txt ______________________________________________________________________ Table of Contents ______________________________________________________________________ Introduction This section presents the YASRT Raytracer. The main features are listed, along with current and future features. The section ends with installation notes for the different platforms supported. What is it? YASRT is a raytracing program. It uses the raytracing algorithm to generate realistic pictures from textual descriptions of three-dimensional scenes. It uses the metaphor of photography to achieve this goal. The photographer (the user of the program) uses a camera (the program) to shoot (render) photographs (two-dimensional pictures) of the surrounding world (text description of a three-dimensional scene). By using advanced raytracing techniques, YASRT can simulate realistic optical phenomena: reflection (objects can be reflected in mirrors), refraction (object can be seen through other transparent objects), shadows are cast when the light is blocked by one or more objects, objects have different surface properties, etc. YASRT is a program taking one or more text files (ASCII files) for input and generates a picture (binary file) of the scene described in those files. A description language allows artists to describe the scene to be rendered. Alternatively, it is possible to use different tools to export scenes from different 3D authoring tools. These tools are described later in this document. What is raytracing? Raytracing is an algorithm that can be used to produce photo-realistic pictures of three-dimensional virtual worlds on a computer. It simulates the propagation of light through an environment by tracing rays of light in a scene to determine which objects they interact with. It also models physical properties of lights, objects and the interaction between them. The simple approach of shooting rays from the lights present in a three-dimensional world is simple but primitive. Very few rays coming from these lights will eventually end up in the section covered by the camera. A simple method used in this case is to shoot rays from the camera out into the world. This technique is also known as backward raytracing. Using the laws of geometric optics, rays can be reflected, refracted, focused, etc. The process is recursive in nature as rays are traced not only from the camera out into the world, but also out of a mirror, or inside a transparent object, etc. Using projection formulae, a pixel on the screen (or final output image) corresponds to one (or more) ray (depending on the different techniques used) that is sent out into the virtual world. Intersection tests are then conducted for each primitive to check if the ray hits one of these primitives. The algorithm then proceeds by determining the color on the surface of the primitive hit at the intersection point. Depending on the primitives surface, new rays are traced (for example if reflection or refraction is activated), following the same algorithm. Finally, when a maximum number of iterations has been reached, or if the contribution of subsequent rays traced is not significant enough, the process is stopped. This process is then applied to all pixels of the image. What is radiosity? Radiosity is a complex algorithm used to simulate the global lighting of a scene. Since raytracing uses local optical laws (i.e.: laws that are applied at a single point, without taking into account its surrounding environment), it cannot take into account complex light transfer mechanisms that appear in the real world. An algorithm was developed to take into account these mechanisms. Radiosity is a view-independent algorithm that can be used in conjunction with raytracing to render realistic pictures. Without going into details, lets just say that this algorithm takes into account the effect such as: - When no light directly reaches a part of a scene, it is rendered totally flat with the raytracing technique. By using radiosity, this part of the scene wont be flat, but resemble what's found in the real world. - When bright surfaces (red for example) are placed near a white wall, this wall will have a faint red aspect (for example) Though not supported in this current version, the radiosity will be added to YASRT in order to simulate the global illumination of a scene to render. Features implemented so far The following list describes what has been implemented in the current version of YASRT:
1. Advanced camera model with depth-of-field (when objects are in the focus of the camera, they appear blurry like on photographs). 2. Point lights with realistic distance attenuation (the intensity of light diminishes with the distance from which an object is lit in the scene). 3. Support for different surface properties (Phong lighting model): - Intrinsic color - Ambient color - Diffuse color - Specular reflection - Transparency - Reflection - Refraction 4. Simulation of haze 5. Different primitives supported: - Sphere - Cone - Plane - Polygon - Triangle - Smooth triangle (patch) - Ring - Cylinder - Disc 6. Distributed raytracing. 7. Acceleration technique (Kay & Kajiya) to speed up rendering times.
1. Supported on several platforms: - Windows 9x, Me and 2000 (Intel platform) and Windows NT (Intel and Alpha platforms) - Linux (Intel platform) - FreeBSD (Intel platform) - DEC Unix (Alpha platform) - PocketPC (ARM only currently) like the Compaq iPAQ. 2. Multi-threading support: YASRT can take advantage of multi-processor machines to speed up rendering times. 3. Support for direct output onto the screen (depending on the platform). 4. Scripting language to describe the scene to render: - Environment settings: haze, background color, etc. - Camera settings: position, direction, field of view, depth of field, etc. - Lights descriptions - Primitives descriptions - Surface descriptions - Declaration of different elements to re-use them throughout the scene - Inclusion of external files to re-use existing objects - Single-line and multiple-line comments - Output settings: anti-aliasing parameters, output file settings, etc. 5. Different image file formats supported: - BMP - PPM - TGA - JPEG (depending on the platform) - TIFF (depending on the platform) - PNG (depending on the platform) 6. Support for renderings of large amount of primitives (>100000). Features to be implemented The following list describes what will be implemented in future versions of YASRT:
1. Stochastic global illumination to take into account global illumination. 2. More camera models: orthographic, fisheye (spherical) and no parallax. 3. Area lights and light with soft shadows. 4. Different distance attenuation models. 5. Support for procedural textures. 6. Support for image mapping. 7. More primitives supported: - Blobs - Height fields
1. Support for direct output onto the screen for more platforms. 2. Enhanced scripting language. 3. More image file formats supported. 4. More auxiliary tools in the package (OpenGL pre-viewer, conversion tools for example). Installation NotesWindowsTo install YASRT on Windows, please do the following: 1. Download YASRT from its official Web Site: http://www.yasrt.org. 2. Download the Windows version for your platform (Intel or Alpha). 3. Unzip the archive downloaded (by using WinZip for instance) into a directory of your choice (e.g.: C:\YASRT). 4. Add the YASRT directory to your path environment variable: - On the desktop, right-click on the My Computer icon. - Select Properties. - Select the Advanced tab (Windows 2000). - Select Environment Variables - In the system variables section, double-click on PATH. - Add YASRT directory (e.g.: C:\YASRT). LinuxTo install YASRT on Linux, please do the following: 1. Download YASRT from its official Web Site: http://www.yasrt.org. 2. Download the Linux version for your platform (Intel only currently). 3. Uncompress the archive downloaded into a directory of your choice (/usr/local/yasrt for example), by doing the following: a. Open a Shell window b. Create the installation directory, e.g.: mkdir /usr/local/yasrt c. Copy the archive downloaded: cp yasrtXXXX.tgz /usr/local/yasrt d. Change the local directory to that created, e.g.: cd /usr/local/yasrt e. Uncompress the archive, e.g.: gunzip d yasrtXXXX.tgz f. Untar the archive, e.g.: tar xvf yasrtXXXX.tar 4. Add the YASRT directory to your path environment variable: DEC UnixSee the Linux Installation Instructions for more details. FreeBSDSee the Linux Installation Instructions for more details. PocketPCTo install YASRT on the pocketPC platform, please do the following: 1. Download YASRT from its official Web Site: http://www.yasrt.org. 2. Download the pocketPC version for your platform (ARM only currently). 3. Unzip the archive downloaded (by using WinZip for instance) into a directory of your choice (e.g.: /YASRT). 4. The program reads a scene file called scene.yst at the root directory. 5. Copy any scene to the root directory and rename it to scene.yst, then run the program. The scene will be rendered directly onto the screen and saved in the image file specified in the script. To start the rendering phase, just tap on the screen. SolarisSee the Linux Installation Instructions for more details. IRIX[TO BE ADDED WHEN IRIX SUPPORT READY] BeOS[TO BE ADDED WHEN BEOS SUPPORT READY] MacOS[TO BE ADDED WHEN MACOS SUPPORT READY] _______________________________________________________________________ Tutorial This section is a tutorial that walks the user through the main features of YASRT. This section is not meant to replace the full users reference section (see below), but is just an introduction to the main features of the Raytracer. YASRT language featuresEnvironmentCameraLightsTexturesPrimitives [THIS SECTION: TO BE ADDED] _______________________________________________________________________ YASRT Command-Line Options YASRT is a command-line program (except for the pocketPC version which features a simple user interface). This means that it must be started from a shell or executed from an external program. This section describes all the command-line switches available to the program. Note that the command-line options supersede the different directives given in the scene description file given as input. This allows having a set of directives for the final version of the scene, while still quickly experimenting new features with quick rendering times by overriding this set of directives. Some command-line switches are available on some platforms only, while others are common to all platforms. To quickly obtain a list of the different options supported for a given platform, simply type yasrt in a shell window. Input and Output File Options This section describes the different command-line options that apply to input and output files. Input FileThe scene to render is specified using the i or --input switch followed by the name of the input file. For example: C:\YASRT\yasrt.exe i myscene.yst (on Windows platforms)Or /yasrt i myscene.yst (on
Unix platforms) In this case, YASRT will try to parse the file called myscene.yst. Note that this is the only required switch to render a particular scene. All other switches override parameters describe in the settings section of the YASRT scripting language (see below). Output File 1. Output File Name The output file name can be changed by using the o or --output switch followed by the name of the output file without any file extension. YASRT will automatically append the correct file extension based on the output file type. For example: C:\YASRT\yasrt.exe i myscene.yst o mysenefirstrender (on Windows platforms)Or /yasrt i
myscene.yst o mysenefirstrender (on
Unix platforms) In this case the scene will be rendered to the myscenefirstrender image file. The extension of this file depends on the output format specified in the settings section of the script (the default being BMP). 2. Output File Type The output file type can be changed by using the appropriate switch. Here is the list of possible types: - BMP: by using the bmp or --bmp switch. - TGA: by using the tga or --tga switch. - PPM: by using the ppm or --ppm switch. - PNG: by using the png or --png switch (not supported on all platforms). - JPEG: by using the jpg or --jpeg switch (not supported on all platforms). - TIFF: by using the tif or --tiff switch (not supported on all platforms). - Screen output: by using the screen or --screen switch (not supported on all platforms). For example: C:\YASRT\yasrt.exe i myscene.yst o mysenefirstrender ppm (on Windows platforms)Or /yasrt i
myscene.yst o mysenefirstrender ppm (on
Unix platforms) In this case the scene will be rendered to the myscenefirstrender.ppm image file. Raytracing Options This section describes the different command-line options that apply to raytracing. It is currently only possible to change the jittering and anti-aliasing options through the use of command-line switches. Future versions will add other features such as the possibility to adjust the quality of the rendering. The anti-aliasing switches are the following ones: 1. For no anti-aliasing, use the aan or --aanone. 2. For quick anti-aliasing, use the aaq or --aaquick. 3. For adaptive anti-aliasing, use the aaa or --aaadaptive followed by an integer representing the threshold value used by this algorithm. Jittering can be activated by using the j or --jitter switch. For example: C:\YASRT\yasrt.exe i myscene.yst aaa 24 (on Windows platforms)Or /yasrt i myscene.yst
aaa 24 (on Unix platforms) In this case the scene will be rendered using adaptive anti-aliasing with 24 as the adaptive distance. For more information on anti-aliasing and jittering, please refer to the Environment section of the Users Reference part of this document. Advanced Options This section describes the different advanced command-line options available. These options should be used with care as they change the way YASRT works internally. Multi-ThreadingSome versions of YASRT support multi-threading. Multi-threading is a technique by which a program can execute several tasks in parallel. On machines with only one processor, even though the program appears to be doing several things at the same time, only one task is being executed at a given time. On machines with more than one processors and depending on the underlying operating system, the program will actually run its different tasks across the different processors available. If the program is executing more tasks than the number of processors, the different tasks will be shared among these processors. This sharing mechanism is also known as time slicing (processor time is sliced and divided among the different tasks to execute). The multi-threaded version of YASRT uses threads to render the different parts of an image in parallel. By default, the workload involved in rendering an image is equally divided between two threads of execution. It is possible to increase that number. YASRT can support two, four or eight threads of execution to speed-up rendering times. To change the default number of threads, simply use the t or the --thread switch followed by 2, 4 or 8. For example: C:\YASRT\yasrt.exe i myscene.yst t 8 (on Windows platforms)Or /yasrt i myscene.yst
t 8 (on Unix platforms) In this case the scene will be rendered by eight parallel threads. Priority Queue SizeYASRT uses a complex technique to avoid testing the intersection of every single ray against every single primitive. When the number of primitives in the scene is large (thousands of objects), the program might bail printing an error message (YASRT is out of space... Please use the -pqs or --pqsize switch to increase the priority queue size). In this case the priority queue size of the algorithm must be increased (the default value is 128) by using the -pqs or the --pqsize switch followed by the new value of the size of the priority queue. For example: C:\YASRT\yasrt.exe i myscene.yst pqs 170 (on Windows platforms)Or /yasrt i myscene.yst
pqs 170 (on Unix platforms) YASRT will use priority queues with a size of 170 elements maximum. _______________________________________________________________________ Language Syntax This section thoroughly describes the YART language used to describe YAST scenes. This section is the core of the YASRT reference manual. File typesThis section describes the different types of files handled by YART. Input filesYASRT reads textual files as input files for scene description files (ASCII files). These files can be created using any text editor provided that they are saved as ASCII files with no extra formatting. Example of text editors include: - Notepad (Windows). - WordPad (Windows, be sure to save the file as Text only). - vi (Unix platforms). - Emacs (Unix and Windows platforms). - Etc. Future versions of YASRT will support binary files when image mapping is supported. These binary files will be: - PPM files (all platforms). - BMP files (all platforms). - TGA files (all platforms). - JPEG files (depending on the platforms). - TIFF files (depending on the platforms). - PNG files (depending on the platforms). Output filesYASRT supports binary files to output the images created. The formats supported at the moment are: - PPM files (all platforms) 24-bit (16M colors) uncompressed. - BMP files (all platforms) 24-bit (16M colors) uncompressed. - TGA files (all platforms) 24-bit (16M colors) uncompressed. - JPEG files (depending on the platforms) 24-bit (16M colors) compressed. - TIFF files (depending on the platforms) 24-bit (16M colors) compressed. - PNG files (depending on the platforms) 24-bit (16M colors) compressed. File inclusionsIt is possible to include files within YASRT scene description files by using the include directive. This feature allows artists to create libraries of objects or libraries of colors, for example. What follows is an example of inclusion inside a script: include mycolors.inc include myobjects.inc . The mycolors.inc and myobjects.inc files are valid ASCII files containing YASRT objects, color declarations and so forth. Data typesBefore describing all the primitives supported by YASRT, it is important to present the different types of data that are manipulated by the raytracer. YASRT supports different types of entities. This section describes these entities and gives examples on how to use them. These will serve as the basis for primitive declarations. IntegersIntegers are used by YASRT to determine integer numbers. Integer values can be positive, negative or null, depending on the context in which they are used. What follows is an example of the use of an integer in a YASRT script: settings { display 800 600 This example shows how to define the output format of the image to render. The first integer represents the width of the image; the second integer represents the height of this image (see below for more details). FloatsFloats are used by YASRT to determine floating-point numbers. Float values can be positive, negative or null, depending on the context in which they are used. What follows is an example of the use of a float in a YASRT script: settings { haze_factor 0.345 This example shows how to define the contribution of haze in a scene (see below for more details). ColorsYASRT makes extensive uses of colors in many of its structures. A color is defined by three floating-point components representing (in order of appearance): the red component, the blue component and the green component. What follows is an example of the use of a color in a YASRT script: settings { background 0.078 0.361 0.753 In this example, the background color of the image will have a red component of 0.078, a green component of 0.361 and a blue component of 0.753. Note that for normal colors, the components lie between 0.0 and 1.0. When all components are null (0.0), the color specified is black; when they are all equal to 1.0, the color specified is white; additionally, when the components are all equal, the color specified is a shade of grey. Color components can be greater than 1.0 in the case of lights. As a matter of fact, as we will see later, light can fade proportionally with distance (like in the real world), if the color specified in the color structure is not sufficient (in this case the color of the light represents the intensity of the light), the scene wont be lit properly. For more details about this effect, see below. Another way to use colors is by declaring them, as shown in the following example: declare "AigueMarine" color .498039 1 .831373 This example shows how to declare a color called "AigueMarine" for later use in the script (the color can also be part of an include file as described before). For more details on the declare directive, see below. VectorsYASRT makes extensive uses of vectors in many of its structures. A vector is defined by three floating-point components representing (in order of appearance): the x component, the y component and the z component. What follows is an example of the use of a vector in a YASRT script: plane { normal <0 0 1> distance -0.5 } This example shows how to declare a plane. The normal vector represents the normal of the plane (for more details on the plane structure, see below). StringsYASRT uses strings in different elements of its scripting languages, generally textual directives. Strings are enclosed between double quotes (). What follows is an example of the use of a string in a YASRT script: settings { output_type "bmp" This example shows how to specify the BMP file format for the output image. For more details on the output_type directive, see below. Variable declarationsTo easily re-use different elements of the YASRT language within the same scene or to share these elements between different scenes, it is possible to declare elements (colors, floats, integer values, primitives, textures, etc.). NOTE: the
current version of YASRT only supports declaration for colors. Future versions
of YASRT will support declarations for other elements of the language
(integers, doubles, strings, surfaces, primitives, etc.). The keyword declare is used for that purpose. The syntax of this keyword is as follows: declare string
data_type_name data_type_definition In the current version of YASRT, data_type_name can only be color. data_type_definition is therefore a color definition. For example, to declare a color and associate the name AigueMarine to it, use the following: declare "AigueMarine" color .498039 1 .831373 To use this color later in the script, the following syntax needs to be used: #color_name For example, to use the color previously defined: surface { color #AigueMarine It is therefore possible to define your own colors in include files, and re-use them in numerous scenes. Future versions of YASRT will support library paths: this feature will allow the raytracer to look for include files in specific directories without having to specify the full path to those files in the scenes using them. Environment The settings section of the YASRT scripting language defines different directives concerning the rendering of the current scene. The syntax is the following: settings { display integer
integer output_type string output_name string jitter string jpeg_quality integer antialiasing string aa_distance integer background color haze_color
color haze_factor float } Here is a description for each parameter of this structure: 1. display: defines the resolution of the final image to render. The keyword is followed by two integers, the width and the height of the image, both in pixels. The display parameter is not mandatory; the default values are 320 (width) by 240 (height). 2. output_type: defines the type of the output. The keyword is followed by a string specifying the format of the output image. The value of this parameter depends on the platform and the support of image file types. See the release notes for more information on the formats supported for a particular platform. Possible values are: - bmp: to specify the BMP file format. - tga: to specify the TGA file format. - ppm: to specify the PPM file format. - jpeg: to specify the JPEG file format (not all platforms). - tiff: to specify the TIFF file format (not all platforms). - png: to specify the PNG file format (not all platforms). - screen: to render directly onto the screen no image will be saved by specifying this option (not all platforms). Note that this option will slow down renderings (on Windows platforms, rendering time are at least 50% bigger, in future versions this will be fixed). This parameter is mandatory and there is no default output file format. 3.
jpeg_quality: this keyword is followed by an
integer. It is supported only by versions of YASRT with JPEG support. The
integer specifies the level of compression of the output image, it lies between
0 and 100. Low values correspond to lower file size (high compression), high
values correspond to higher file size (low compression). There is no default
value for this parameter. 4. output_name: this keyword is followed by a string that specifies the name of the output image file. The filename specified doesn't need to contain any file extension. YASRT will automatically append the correct file extension to the name specified. 5. jitter: this keyword is followed by a string specifying if jittering should be used during the rendering of the output image. Its value can be either yes or no. This parameter is not mandatory, and by default jittering is not activated. Jittering allows YASRT to introduce pseudo-random values when tracing rays. This feature is useful because it helps reducing the appearance of aliasing effects (see below) to the human brain. However, jittering shouldn't be used when generating the successive frames of an animation. Since pseudo-random values are used when tracing rays, undesired visual effects are generated (noise) when objects moved during animation. 6. antialiasing: this keyword is followed a string specifying the type of anti-aliasing to use during rendering. The different values can be: - none: no anti-aliasing is used. This leads to the fastest renderings, at the cost of a poor quality in the results obtained. This technique should be used in intermediate renderings only. - quick: a quick anti-aliasing technique is used. This provides a good trade-off between rendering times and rendering qualities, and is slower than with no anti-aliasing. This technique should be used in intermediate renderings only. - adaptive: an adaptive anti-aliasing technique is used. Put simple, this complex technique recursively sub-divides each pixel and traces new rays until a threshold is reached (see below). As a result far more rays are traced than in any of the previous techniques presented. Calculation times are therefore tremendously increased; this is why this technique should be used for final renderings. The default value for this parameter is none (no anti-aliasing by default). 7. aa_distance: this keyword is followed by an integer that specifies the threshold value used when adaptive anti-aliasing is activated. Low values give the best results as more rays are traced; this therefore leads to longer rendering times. High values give good results with faster rendering times, at the cost of a poor quality in the final image. This parameter is not mandatory and its default value is 64. 8. background: this keyword is followed by a color that specifies the background color of the image. If a ray that is traced into the virtual world doesn't hit any primitive present, the color returned is that specified by this parameter. This parameter is not mandatory, and its default value is black (0 0 0). 9. haze_color: YASRT can simulate haze effects. This parameter is followed by a color specifying of the haze when this effect is activated. This parameter is not mandatory, and its default value is black (0 0 0). 10. haze_factor: this parameter is followed by a float value that specifies the importance of the haze effect in the scene. High values lead to thick haze. A value of 0 means that the haze effect is not activated. This parameter is not mandatory, and its default value is 0. The following example shows the declaration on a complete settings structure: settings { display 1024
768 output_type jpeg output_name myScene jitter no jpeg_quality 90 antialiasing adaptive aa_distance 32 background <0
0 0> haze_color
<1 1 1> haze_factor 0.05 } Camera The camera section of the YASRT scripting language defines the different parameters of the camera of the scene. The syntax is the following: camera { position vector look_at vector up vector fov float ratio float aperture float focal_length float samples integer } Here is a description for each parameter of this structure: 1. position: this keyword is followed by a vector that specifies the position of the viewer. This parameter is mandatory and there is no default value. 2. look_at: this keyword is followed by a vector that specifies where the viewer is looking at in the virtual world. This parameter is mandatory and there is no default value. 3. up: this keyword is followed by a vector that defines what vector should be considered as the altitude. For left-handed systems, the value is <0 1 0>, for right-handed systems, it is <0 0 1>. This parameter is not mandatory, its default value is <0 0 1> (YASRT is right-handed by default). 4.
fov: this keyword is followed by a float that
specifies the field of view in degrees. Small values will lead to an effect of
zooming in (close up), while large values will lead to an effect of zooming
out. This parameter is not mandatory; its default value is 45. 5.
ratio: this keyword is followed by a float that
specifies the ratio of the final image to render. Normal computer screens have
a ratio of 4/3. Standard resolutions also use this ratio (640x480, 1024x768,
etc.). This parameter is not mandatory, its default value is 4/3. 6.
aperture: this keyword is followed by a float that
specifies the importance of the effect of depth of field. This effect simulates
that seen in real photographs where objects out of focus will appear blurry.
Large values will lead to accentuating this effect. This parameter is not
mandatory, its default value is 0.0 (no depth-of-field effect by default). 7.
focal_length: this keyword is followed by a float
that specifies the distance at which the scene is in focus. This parameter is
not mandatory, its default value is 10. 8. samples: this keyword is followed by an integer that specifies the number of extra rays to trace when depth of field is activated. Large values will slow rendering times but lead to better visual results. This parameter is not mandatory, its default value is 16. The following example shows the declaration of a camera: camera { position <10
10 10> look_at <0
0 0> up <0
0 1> fov 60 ratio 1.33333 aperture 0.15 focal_length 11 samples 16 } Here is an example of a scene using the depth of field effect:
Lights The light section of the YASRT scripting language defines the different parameters of the lights of the scene. The syntax is the following: light { position vector color color } Here is a description for each parameter of this structure: 1. position: this keyword is followed by a vector that specifies the position of the light. This parameter is mandatory and there is no default value. 2. color: this keyword is followed by a color that specifies the color of the light. Currently YASRT supports the effect of fading of intensity: the intensity of a light source decreases with the distance from the center of the light source. In this case, the color can be thought of as the intensity of the light. Since, this parameter depends on the overall scale of the scene, it needs to be carefully adjusted, as a result, the color of a light can have its components greater than 1.0. Future versions of YASRT will support more light sources and light-fading models. This parameter is mandatory and there is no default value. The following example is a light located at <10 10 10> and of a white color: light { position <10
10 10> color 1
1 1 } Textures The surface section of the YASRT scripting language defines the different parameters of the surface of an object. Currently, YASRT only supports some texturing features like: reflection, refraction and specular reflection. Future versions will support more advanced texturing models (procedural texturing, including: texture mapping, bump mapping, etc.). Once a texture is declared in a script it is applied to all the objects that follow in the script. To change a texture, simply declare a new one, it will be used by all following objects within the script. The syntax is the following: surface { color color ambient float diffuse float brilliance float specular float roughness float reflection float refraction float index float } Here is a description for each parameter of this structure: 1. color: this keyword is followed by a color that specifies the intrinsic color of the object. This color will be used by the raytracing engine along with the following parameters in the structure to determine the exact color at a point on the surface of an object. 2. ambient: this keyword is followed by a float that specifies the ambient factor of the object. The ambient term in raytracing is used to simulate the effect of global illumination in a scene. Since standard raytracing cannot determine the exact value of this term, it is simulated by using a constant value. The value can range from 0.0 to 1.0. Typical values range from 0.1 to 0.3. Large value will render the object glowing. 3. diffuse: this keyword is followed by a float that specifies the amount of light that is reflected off the surface at the exact same angle it came in. This term is also known as diffuse reflection. A value of 0.5 means for example that 50% of the light seen from the object comes directly from the different light sources of the scene. The rest is absorbed by the object. 4. brilliance: this keyword is followed by a float that controls the way light interacts with the object depending on the incident angle. High values will make the object look more metallic. 5. specular: this keyword is followed by a float that controls the way highlights are generated when the light bounces off the objects surface. Simply put, highlights are the bright spots that appear on objects that depend upon viewing angle and illumination angle. The specular term can range from 0.0 to 1.0, 0.0 meaning no highlights, while 1.0 means total saturation of the highlight. 6. roughness: this keyword is followed by a float that controls the size of the highlight. Large values will give large highlights, while small values will give very smooth and small highlight. 7. reflection: this keyword is followed by a float that controls the amount of light that is reflected off the surface of the object. The value can range from 0.0 (no reflection) to 1.0 (total reflection). The light is reflected off the surface with the same angle as the incident light. Note that reflection increases rendering times since new rays must be traced from the intersection point on the surface. 8. refraction: this keyword is followed by a float that controls the amount of light that is refracted by the surface. The value can range from 0.0 to 1.0. It can be thought of as the transparency of the object to which it is applied. Note that refraction increases rendering times since new rays must be traced from the intersection point on the surface. The default value is 0.0 (no refraction). 9. index: this keyword is followed by a float that specifies the index of refraction of the object. Typical values are: 1.0 for air, 1.33 for water, 1.5 for glass and 2.4 for diamond. The default value is 1.0 (air). What follows is the example of simple surface declaration: surface { color 0.419 0.556 0.137 ambient 0.1 diffuse 0.75 brilliance 1.0 specular 0.3 roughness 10.0 reflection 0.25 refraction 0.0 index 1.0 } Primitives This section describes the different primitives supported by YASRT. SphereThe sphere is the fastest and simplest object to render with a raytracing program. The syntax is a follows: sphere { center vector radius float } Here is a description for each parameter of this structure: 1. center: this keyword is followed by a vector that specifies the center of the sphere. This parameter is mandatory and there is no default value for it. 2. radius: this keyword is followed by a float that specifies the value of the radius of the sphere. This parameter is mandatory and there is no default value for it. The following example shows of sphere centered around the origin (<0 0 0>) and with a unit radius (1): sphere { center <0 0 0> radius 1 } The following image is an example of such a sphere:
PlaneThe syntax is a follows: plane { normal vector distance float } Here is a description for each parameter of this structure: 1. normal: this keyword is followed by a vector that specifies the normal of the plane. This parameter is mandatory and there is no default value for it. 2. distance: this keyword is followed by a float that specifies the value of the distance of the plane from the origin. This parameter is mandatory and there is no default value for it. The following example shows the declaration of the (xy) plane at one unit down on the z axis (i.e.: which equation is z=-1): plane { normal <0 0 1> distance -1 } By adding this declaration to the previous scene, the plane is added to the scene:

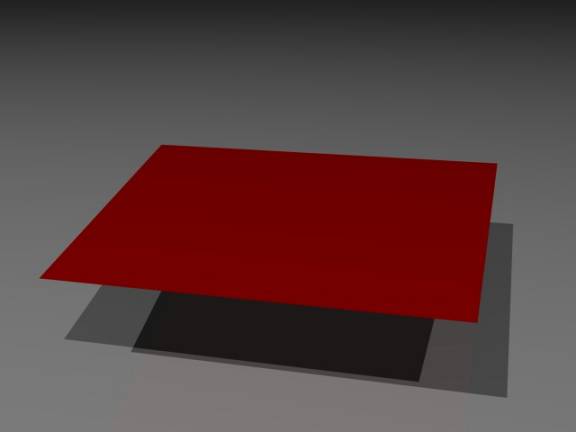

PolygonThe syntax is a follows: polygon { integer vertex vector vertex vector vertex vector vertex vector vertex vector } Here is a description for each parameter of this structure: 1. The first parameter of the polygon structure that specifies the number of vertices. This parameter is mandatory, it must be placed as the first entry of the structure and there is no default value for it. The number of vertices must be greater than three. For three vertices, use the triangle structure instead. 2. vertex: this keyword is followed by a vector that specifies one the vertices of the polygon. The vertices must be declared in the counter clockwise order. The following example shows the declaration of a polygon: polygon { 4 vertex <-1.5 -1.5 0> vertex <1.5 -1.5 0> vertex <2 2 0> vertex <-2 2 0> } Here is such a polygon:

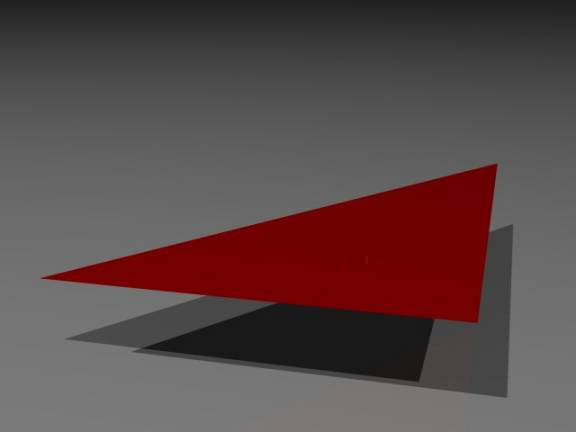

TriangleThe syntax is a follows: triangle { vertex vector vertex vector vertex vector } Here is a description for each parameter of this structure: 1. vertex: this keyword is followed by a vector that specifies one the vertices of the triangle. The vertices must be declared in the counter clockwise order. Only three vertices must be declared. The following example shows the declaration of a triangle: triangle { vertex <-1.5 -1.5 0> vertex <1.5 -1.5 0> vertex <2 2 0> } Here is such a triangle:
Smooth triangle (patch)A smooth triangle contains not only vertices but also normals at these vertices. This primitive is primarily used when exporting scenes from commercial packages. The syntax is a follows: patch or
smooth_triangle { vertex vector normal vector vertex vector normal vector vertex vector normal vector } Here is a description for each parameter of this structure: 1. vertex: this keyword is followed by a vector that specifies one the vertices of the triangle. The vertices must be declared in the counter clockwise order. Only three vertices must be declared. 2. normal: each vertex must be directly followed by its normal. The following example shows the declaration of a smooth triangle: smooth_triangle { vertex <-1.5 -1.5 0> normal <0 0 1> vertex <1.5 -1.5 0> normal <0 0 1> vertex <2 2 0> normal <0 0 1> } Here is such a smooth triangle:
RingThe syntax is a follows: ring { center vector normal vector internal_radius float external_radius float } Here is a description for each parameter of this structure: 1. center: this keyword is followed by a vector that specifies the center of the ring. This parameter is mandatory and there is no default value for it. 2. normal: this keyword is followed by a vector that specifies the normal of the ring. This parameter is mandatory and there is no default value for it. 3. internal_radius: this keyword is followed by a float that specifies the value of the internal radius. This parameter is mandatory and there is no default value for it. 4. external_radius: this keyword is followed by a float that specifies the value of the external radius. This parameter is mandatory and there is no default value for it. The following example shows the declaration of a ring: ring { center <0 0 0> normal <0 0 1> internal_radius 1 external_radius 2 } Here is this ring rendered:

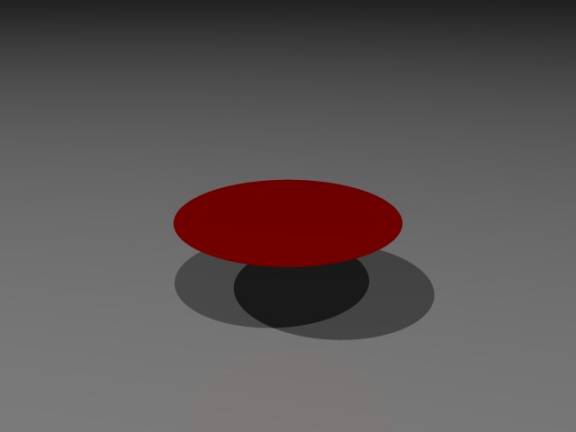

DiscThe syntax is a follows: disc { center vector normal vector radius float } Here is a description for each parameter of this structure: 1. center: this keyword is followed by a vector that specifies the center of the ring. This parameter is mandatory and there is no default value for it. 2. normal: this keyword is followed by a vector that specifies the normal of the ring. This parameter is mandatory and there is no default value for it. 3. radius: this keyword is followed by a float that specifies the value of the radius. This parameter is mandatory and there is no default value for it. The following example shows the declaration of a ring: disc { center <0 0 0> normal <0 0 1> radius 1 } Here is this disc rendered:

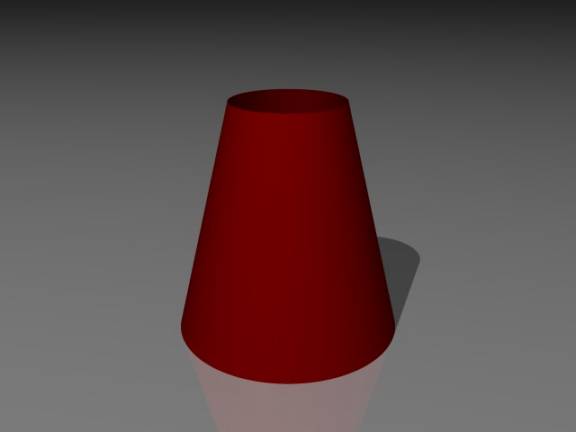

ConeThe syntax is a follows: cone { base vector cap vector base_radius float cap_radius float } Here is a description for each parameter of this structure: 1. base: this keyword is followed by a vector that specifies the base of the cone. This parameter is mandatory and there is no default value for it. 2. base_radius: this keyword is followed by a float that specifies the value of the radius of the cone at the base. This parameter is mandatory and there is no default value for it. 3. cap: this keyword is followed by a vector that specifies the cap of the cone. This parameter is mandatory and there is no default value for it. 4. cap_radius: this keyword is followed by a float that specifies the value of the radius of the cone at the cap. This parameter is mandatory and there is no default value for it. The following example shows an example of cone centered around the origin (<0 0 0>) and with a unit radius (1), that extends along the z axis on 5 units (<0 0 5>), and has a radius of 0.5 at the cap: cone { base <0 0 -1> cap <0 0 1> base_radius 1 cap_radius 0.5 } Here is this cone rendered:

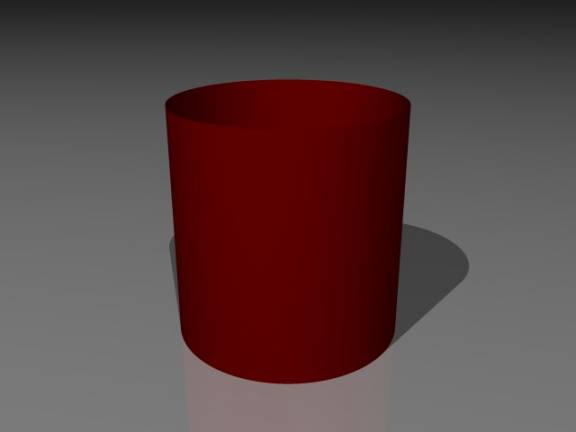

CylinderThe syntax is a follows: cylinder { base vector cap vector radius float } Here is a description for each parameter of this structure: 1. base: this keyword is followed by a vector that specifies the base of the cylinder. This parameter is mandatory and there is no default value for it. 2. cap: this keyword is followed by a vector that specifies the cap of the cylinder. This parameter is mandatory and there is no default value for it. 3. radius: this keyword is followed by a float that specifies the value of the radius of the cylinder. This parameter is mandatory and there is no default value for it. The following example shows an example of cylinder centered around the origin (<0 0 0>) and with a unit radius (1), that extends along the z axis on 5 units (<0 0 5>): cylinder { base <0 0 -1> cap <0 0 1> radius 1 } Here is this cylinder rendered:
