MDL Examples
Cornell University Program of Computer Graphics
These examples were generated using Pete Shirley's eon renderer.

Pinhole camera

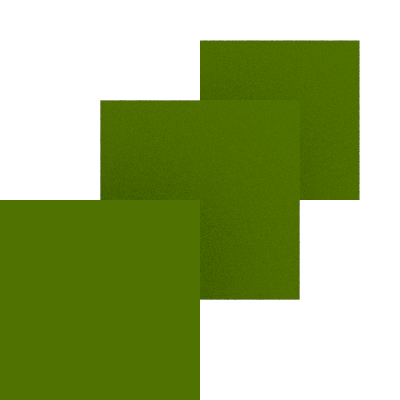

Here are three green squares viewed through a pinhole camera.



The mdl file is:

mdlflA20

cmr
   "the camera"
   0.0 0.0 2.0  % cop
   0.0 0.0 -1.0 % vpn
   0.0 1.0 0.0  % vup
   0.035        % F
   0.035 0.035  % width height
   0.0 0.0      % center of image area
   0.0          % time
[
   fcsDstnc 2.035 end
   aprtr 1.8 end
]
end

bckgrnd
  cnstnt
     rgb 1.0 1.0 1.0 end
  end
end

nmdMtrl "mat"
   lmbrtn
       rgb 0.1 0.2 0.0 end
   end
end

msh
"" mtrlNm "mat" end
   vrtxPstn
     0.0 -1.0 0.5
     0.0  0.0 0.5
     -1.0  0.0 0.5
     -1.0 -1.0 0.5
   end
   vrtxUV
     1.0 0.0
     1.0 1.0
     0.0 1.0
     0.0 0.0
   end
   qdrltrl
     0 1 2 3
   end
end

msh
"" mtrlNm "mat" end
   vrtxPstn
     1.0 0.0 -0.5
     1.0 1.0 -0.5
     0.0 1.0 -0.5
     0.0 0.0 -0.5
   end
   vrtxUV
     1.0 0.0
     1.0 1.0
     0.0 1.0
     0.0 0.0
   end
   qdrltrl
     0 1 2 3
   end
end

msh
"" mtrlNm "mat" end
   vrtxPstn
     0.5 -0.5 0.0
     0.5  0.5 0.0
     -0.5  0.5 0.0
     -0.5 -0.5 0.0
   end
   vrtxUV
     1.0 0.0
     1.0 1.0
     0.0 1.0
     0.0 0.0
   end
   qdrltrl
     0 1 2 3
   end
end

Thinlens camera

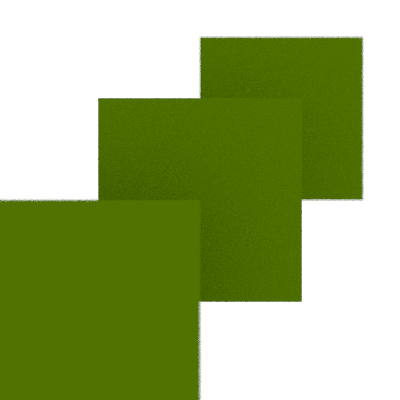

Here are three green squares viewed through a thin lens camera


The mdl file is the same as above but these two lines are uncommented:

fcsDstnc 2.035  end
aprtr 1.8 end

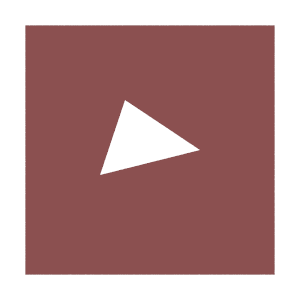

 Planar mesh









mdlflA20

cmr
   "the camera"
   5.0 5.0 12.0  % cop
   0.0 0.0 -1.0 % vpn
   0.0 1.0 0.0  % vup
   0.035        % F
   0.035 0.035  % width height
   0.0 0.0      % center of image area
   0.0          % time
end

bckgrnd
  cnstnt
     rgb 1.0 1.0 1.0 end
  end
end


nmdMtrl "mat"
   lmbrtn
      rgb 0.3 0.1 0.1 end
   end
end


plnrMsh
"" mtrlNm
"mat" end
vrtxPstn
0.0 0.0 0.0
10.0 0.0 0.0
10.0 10.0 0.0
0.0 10.0 0.0
3.0 4.0 0.0
7.0 5.0 0.0
4.0 7.0 0.0
end
cmplxPly
plygn
0 1 2 3 end
plygn
6 5 4 end
end
end
